No Engine Braking in Manual 1, 2 and 3 - Routine 261/361

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

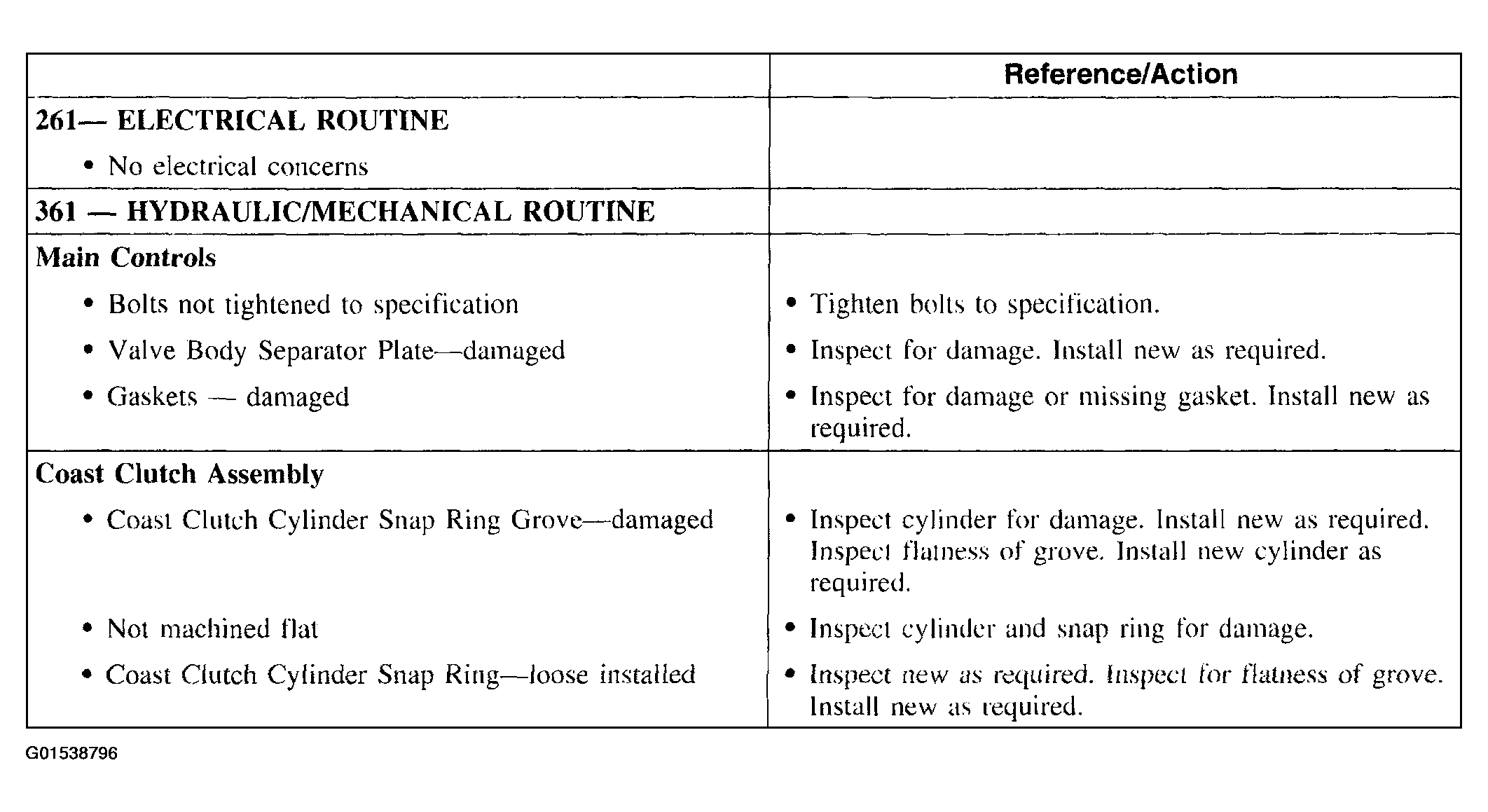

Fig 1: Diagnostic Routines - No Engine Braking In Manual 1, 2 And 3 - Routine 261/361
G01538796Courtesy of FORD MOTOR CO.
