Engagement Concern: No Forward Only - Routine 201/301

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

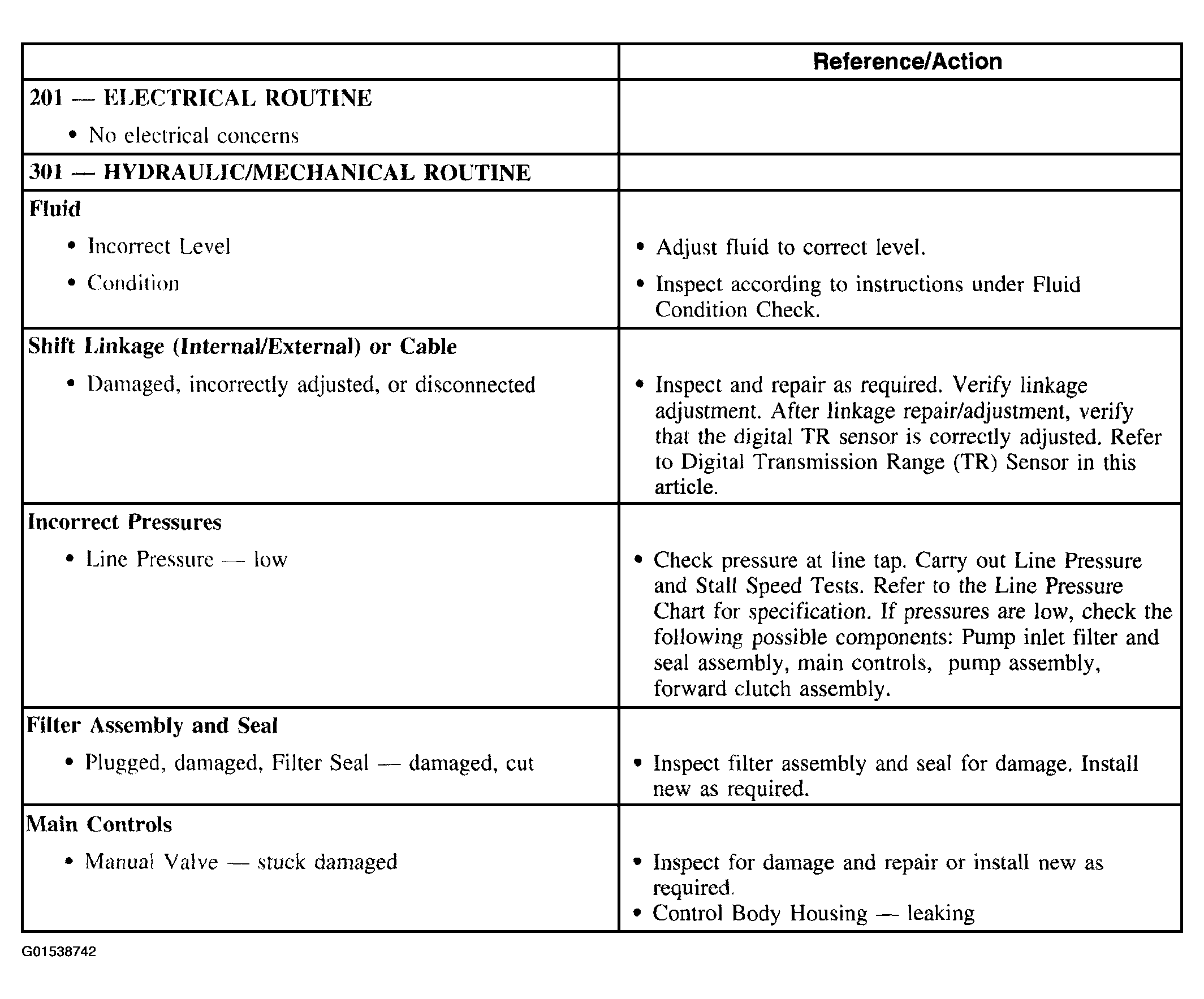

Fig 1: Diagnostic Routines - Engagement Concern: No Forward - Routine 201/301 (1 Of 2)
G01538742Courtesy of FORD MOTOR CO.

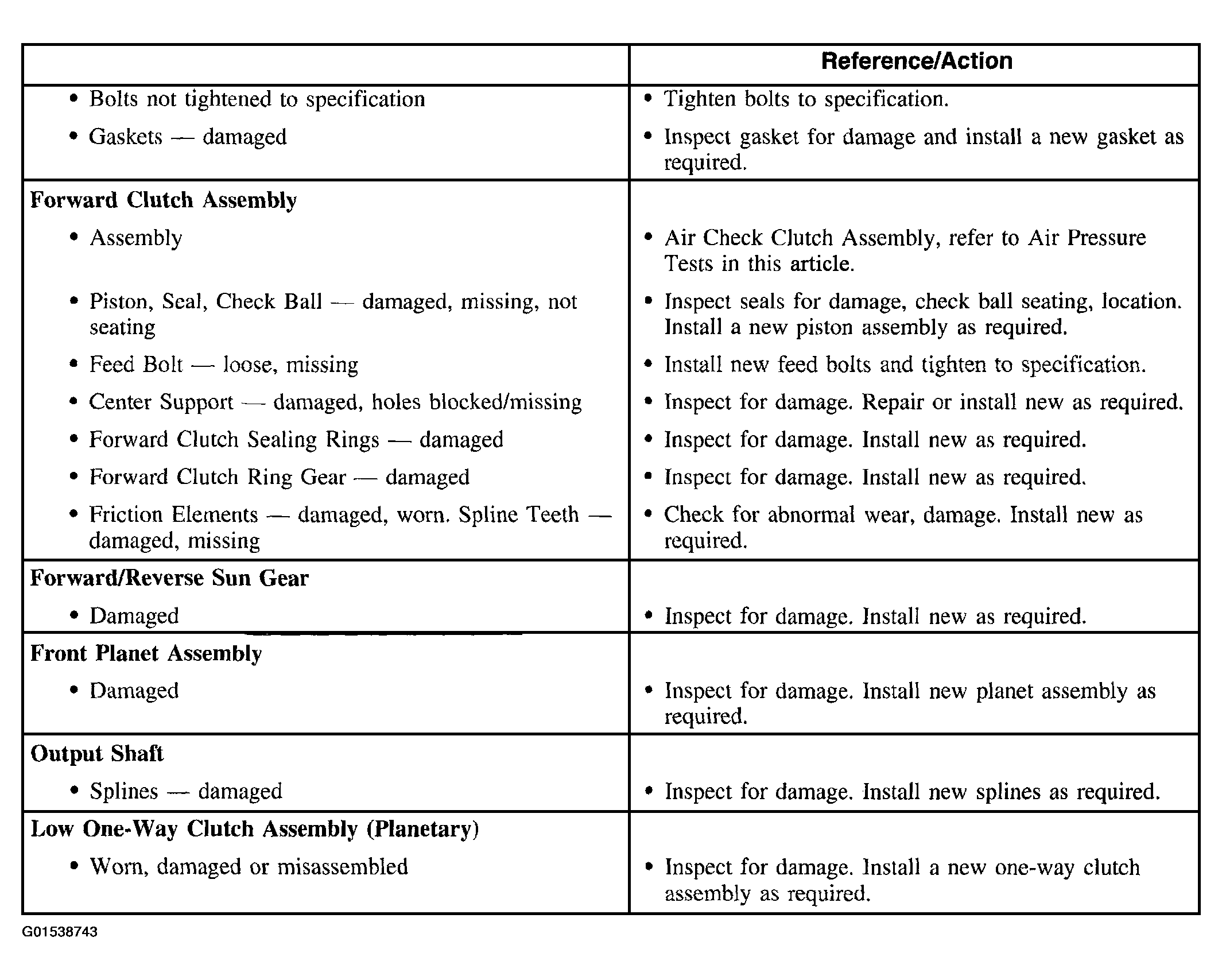

Fig 2: Diagnostic Routines - Engagement Concern: No Forward - Routine 201/301 (2 Of 2)
G01538743Courtesy of FORD MOTOR CO.
