Engagement Concern: Harsh Reverse Only - Routine 203/303

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

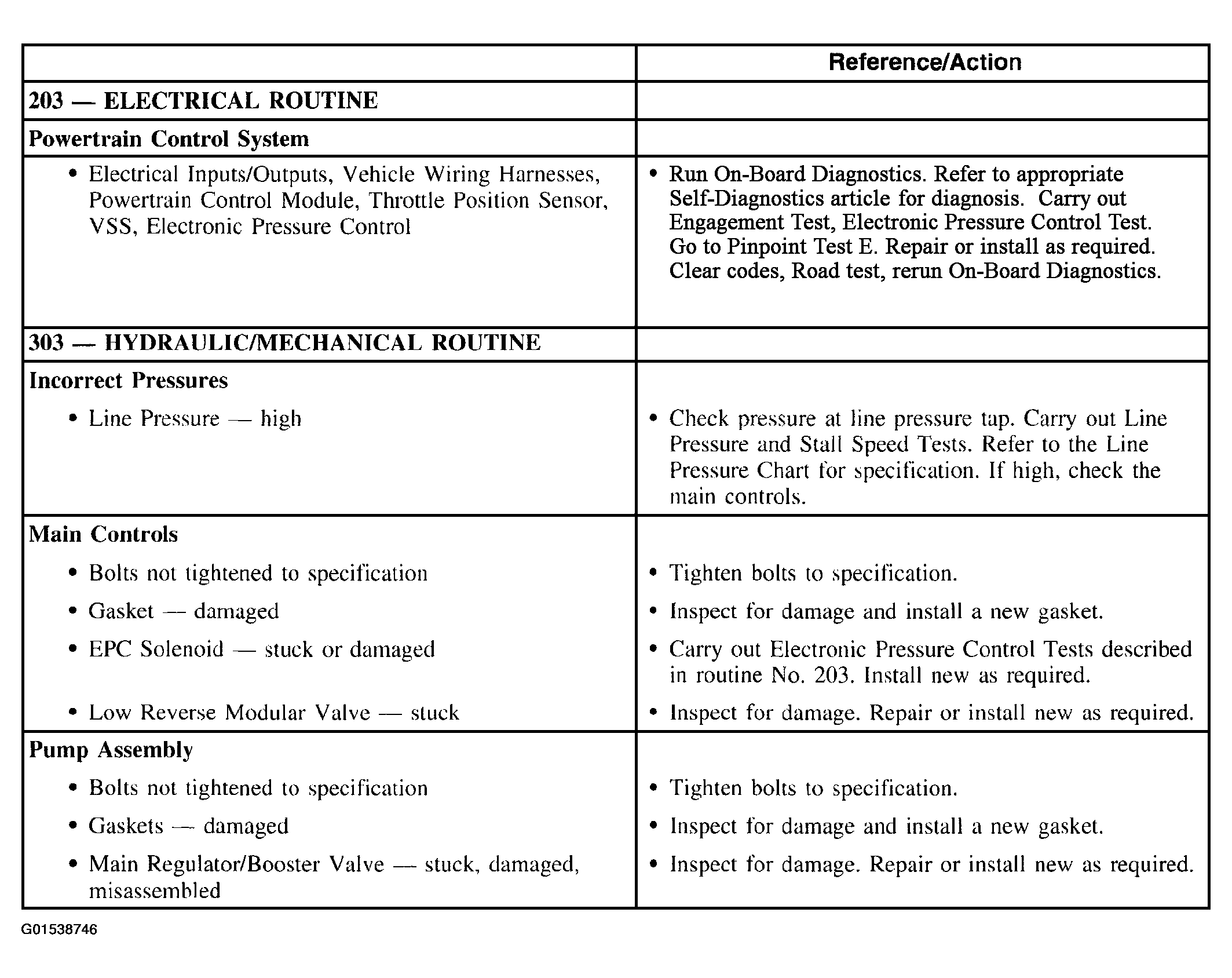

Fig 1: Diagnostic Routines - Engagement Concern: Harsh Reverse - Routine 203/303
G01538746Courtesy of FORD MOTOR CO.
