Transmission, Disassembled View

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

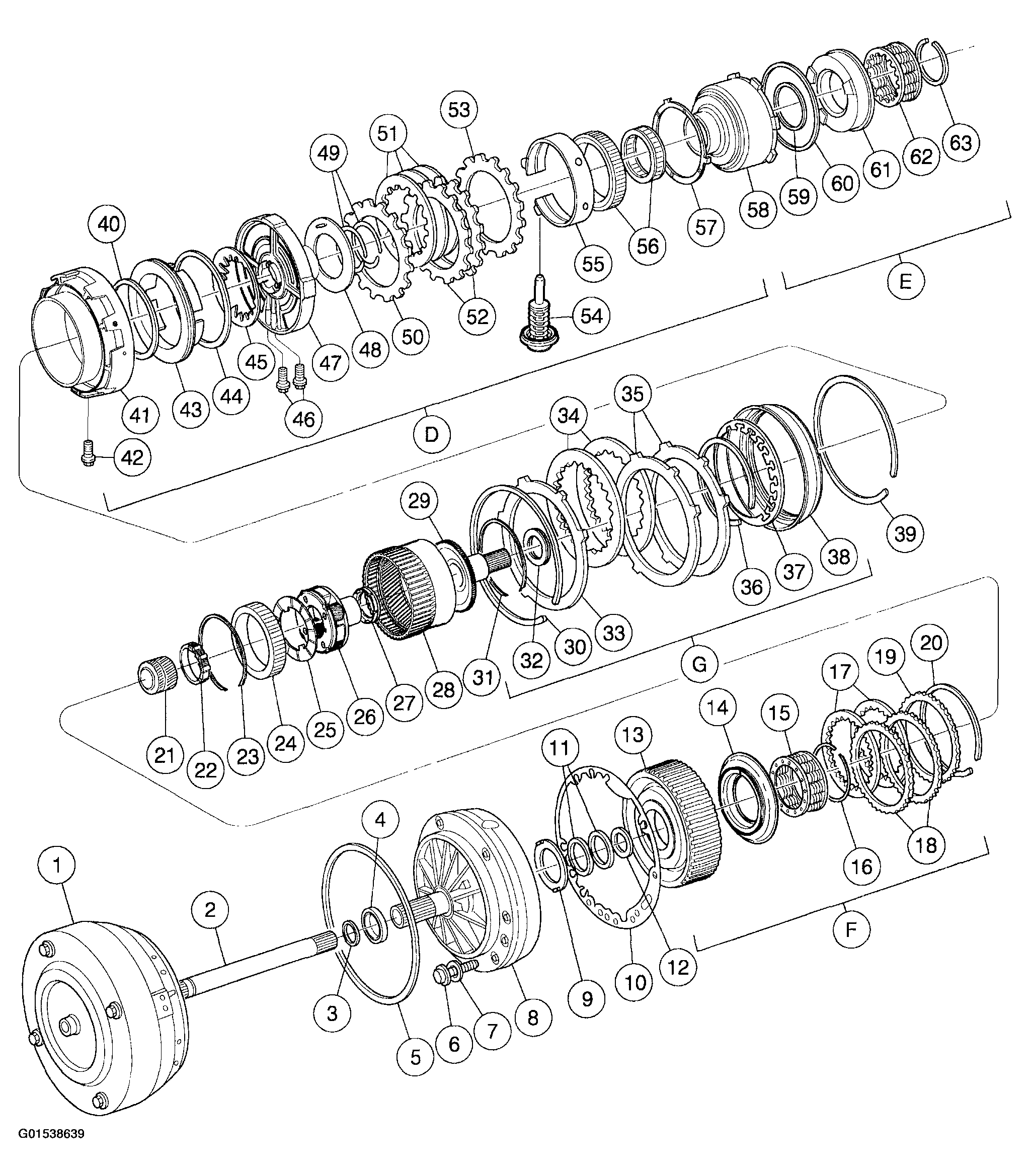

Fig 1: Disassembled View Of Transmission (1 Of 3)

G01538639

Courtesy of FORD MOTOR CO.

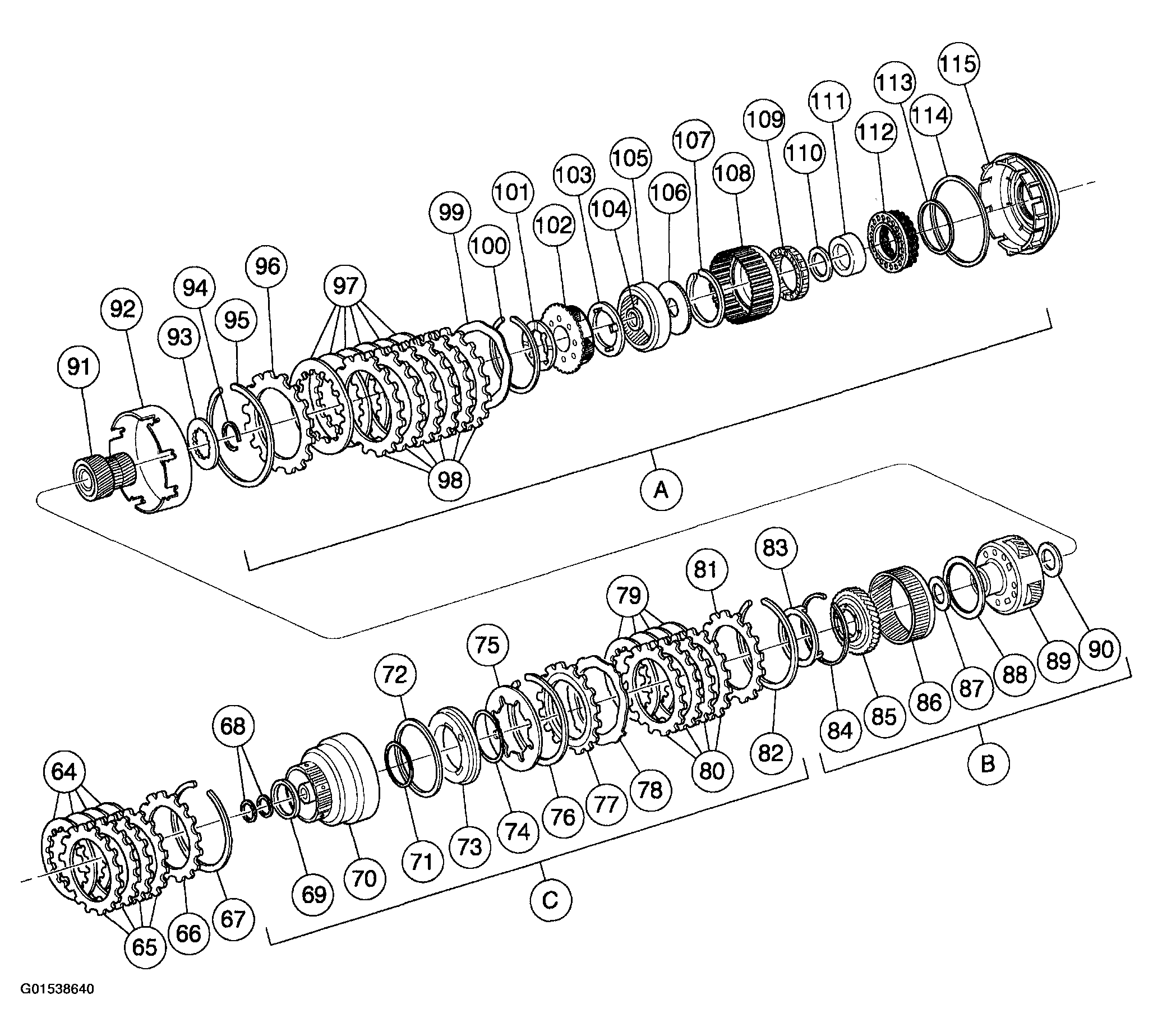

Fig 2: Disassembled View Of Transmission (2 Of 3)

G01538640

Courtesy of FORD MOTOR CO.

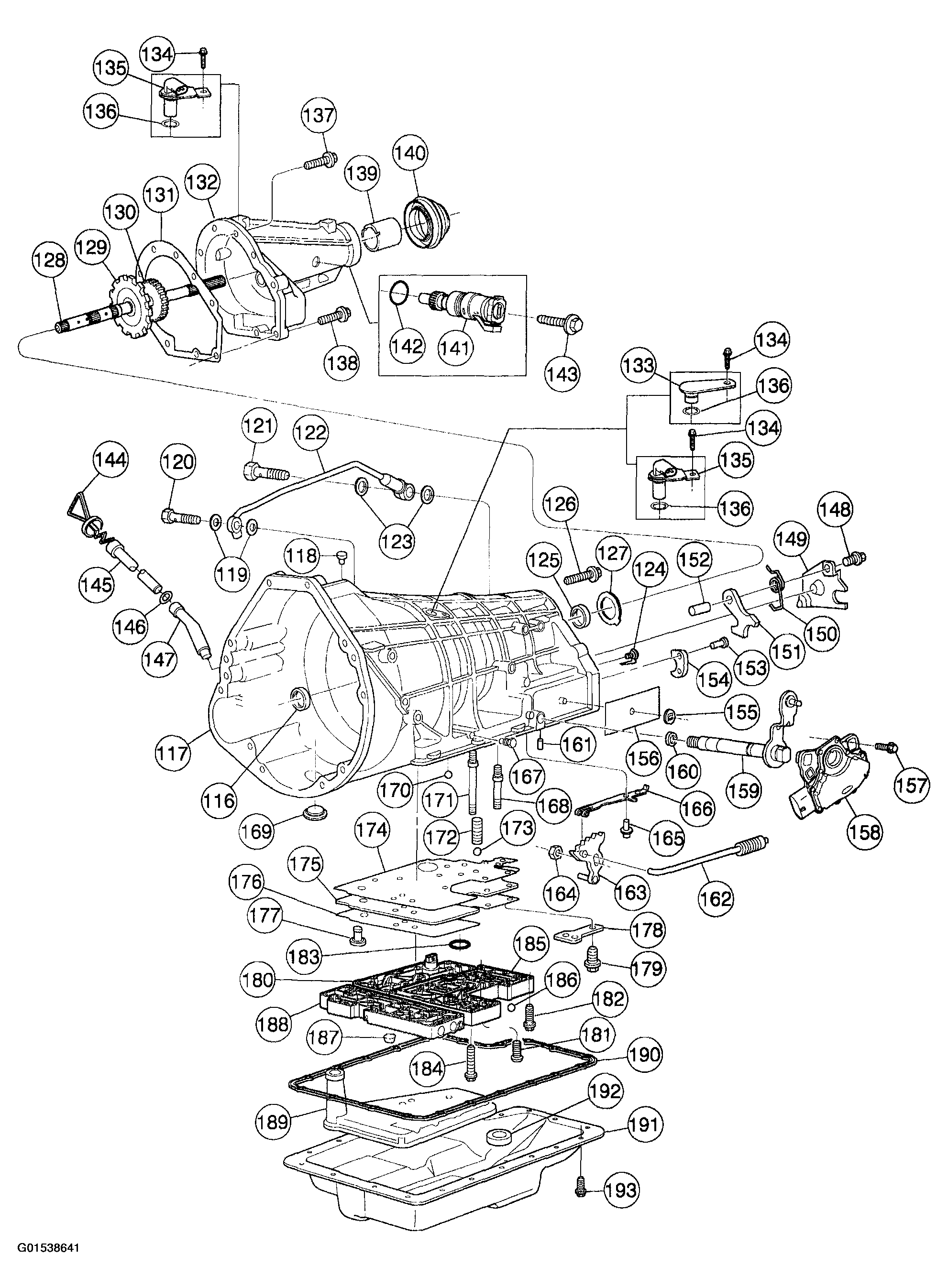

Fig 3: Disassembled View Of Transmission (3 Of 3)

G01538641

Courtesy of FORD MOTOR CO.

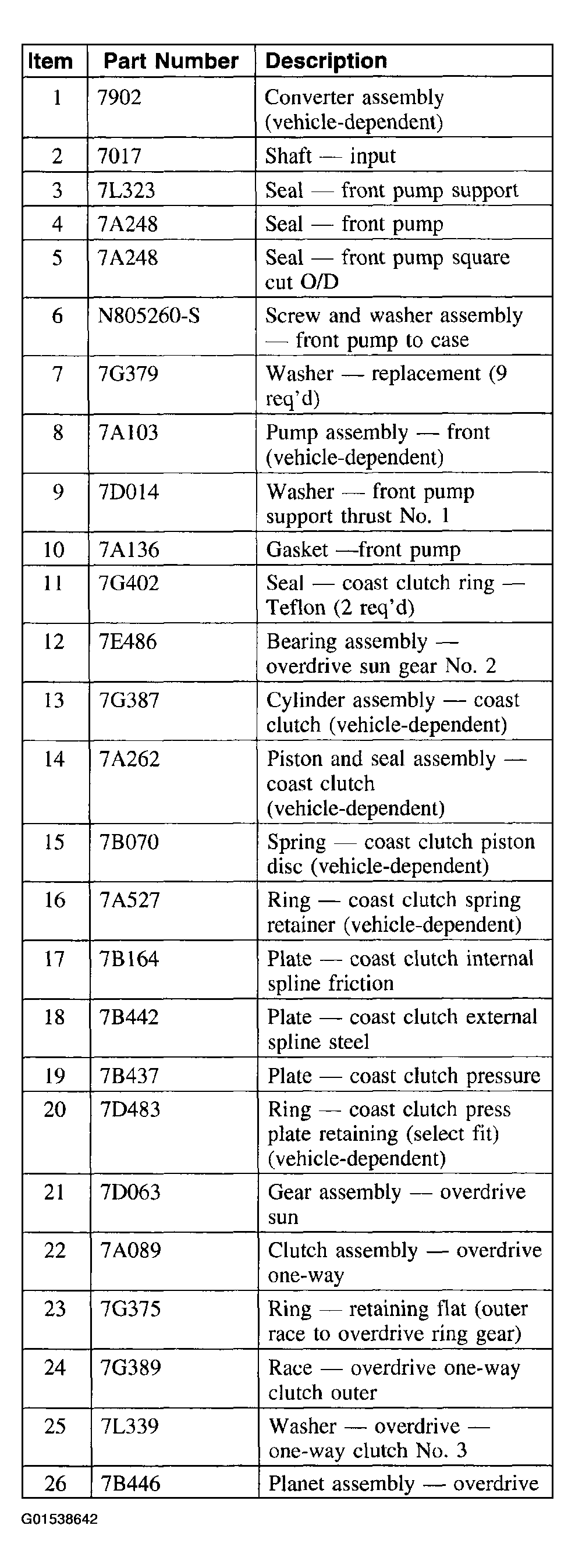

Fig 4: Transmission Component Identification (Items 1-26)

G01538642

Courtesy of FORD MOTOR CO.

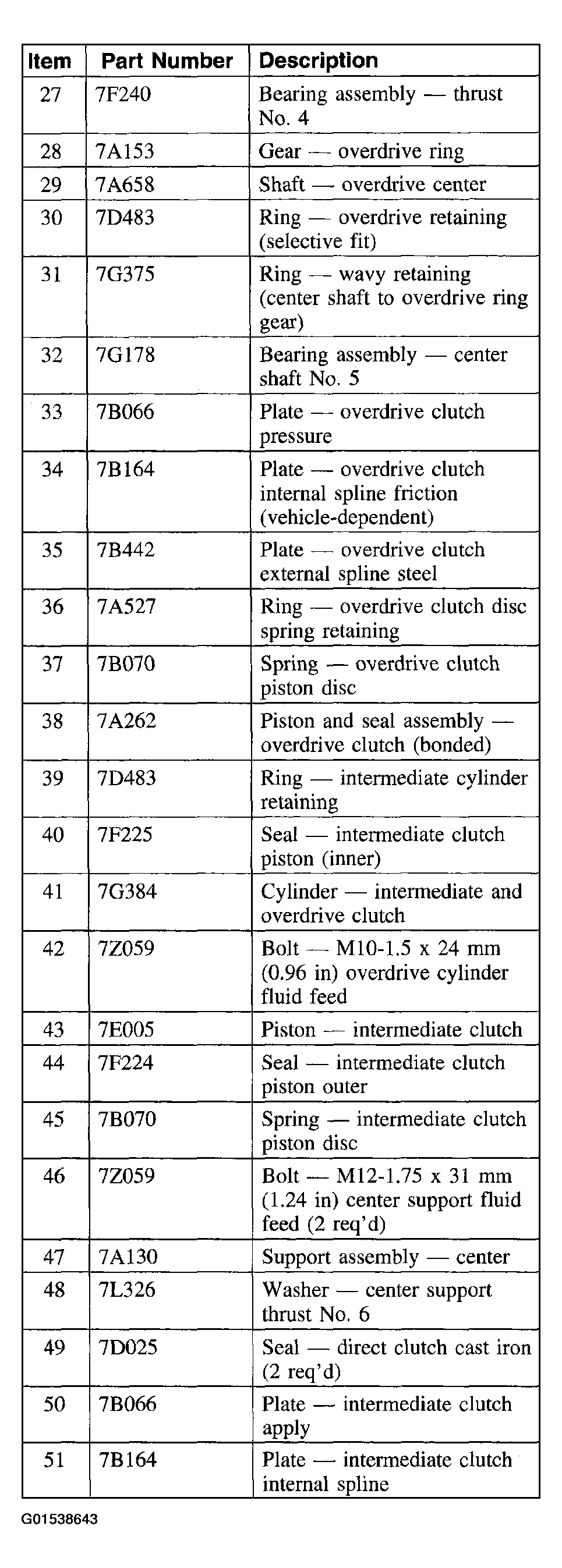

Fig 5: Transmission Component Identification (Items 27-51)

G01538643

Courtesy of FORD MOTOR CO.

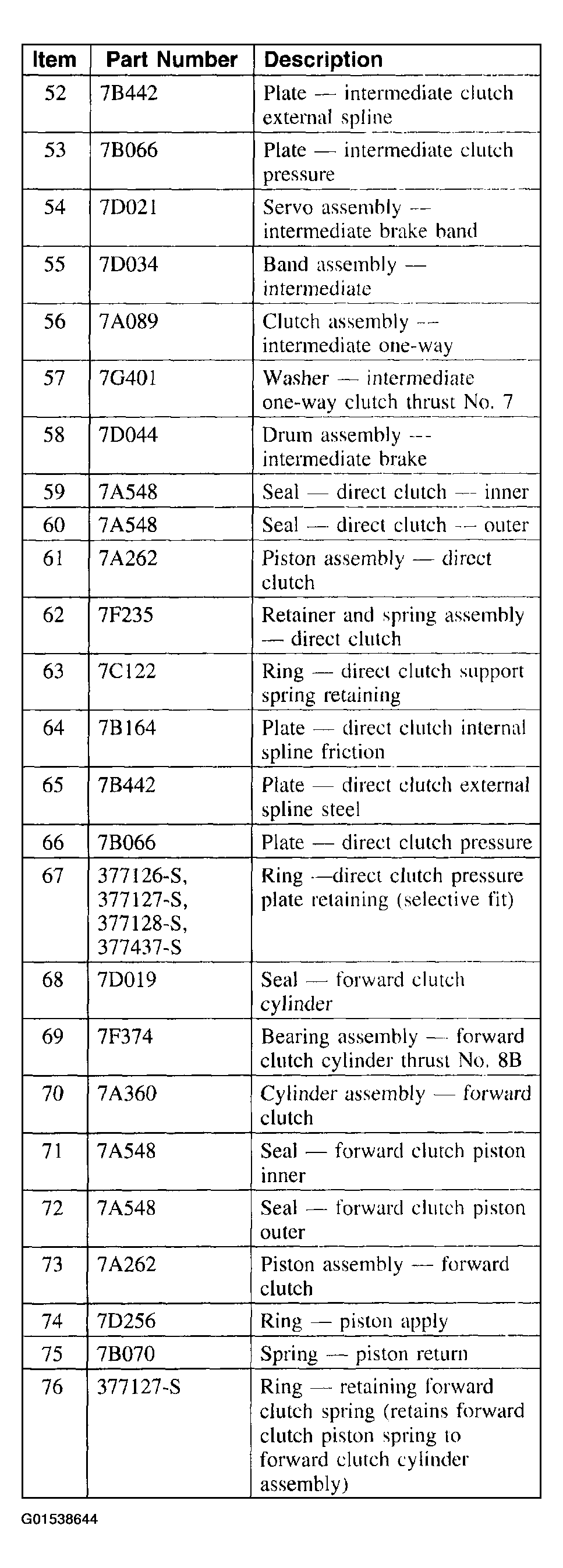

Fig 6: Transmission Component Identification (Items 52-76)

G01538644

Courtesy of FORD MOTOR CO.

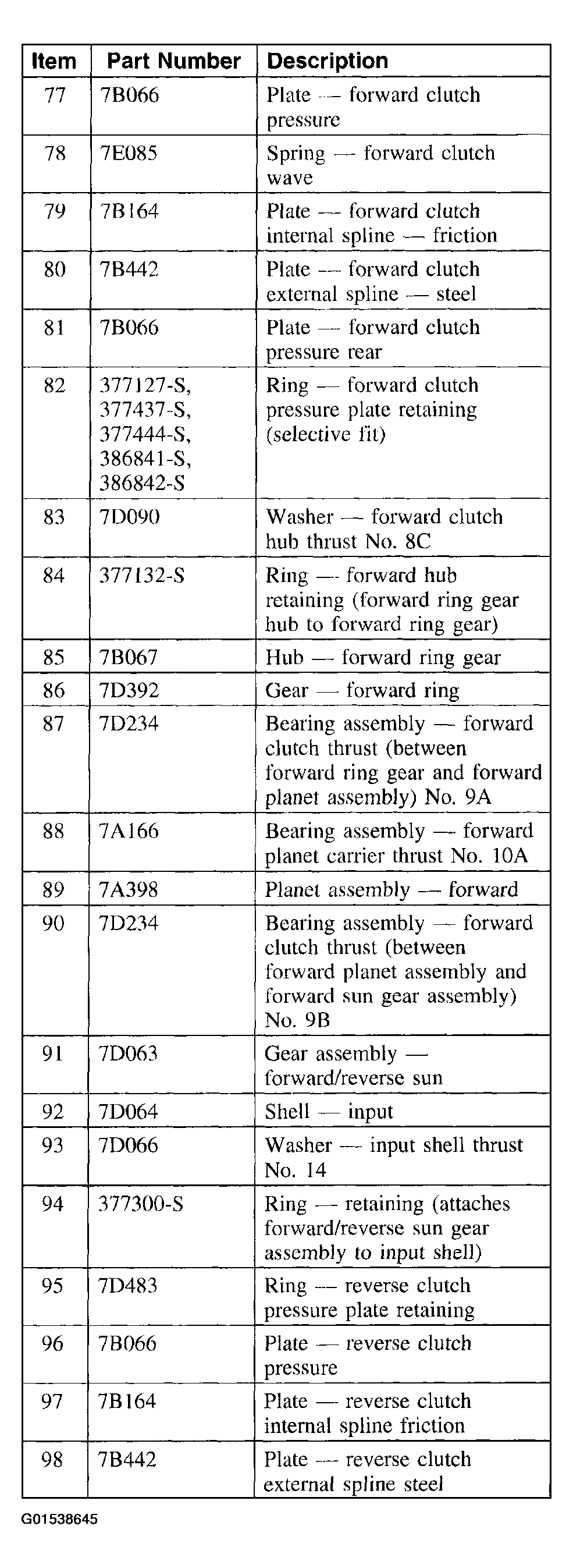

Fig 7: Transmission Component Identification (Items 77-98)

G01538645

Courtesy of FORD MOTOR CO.

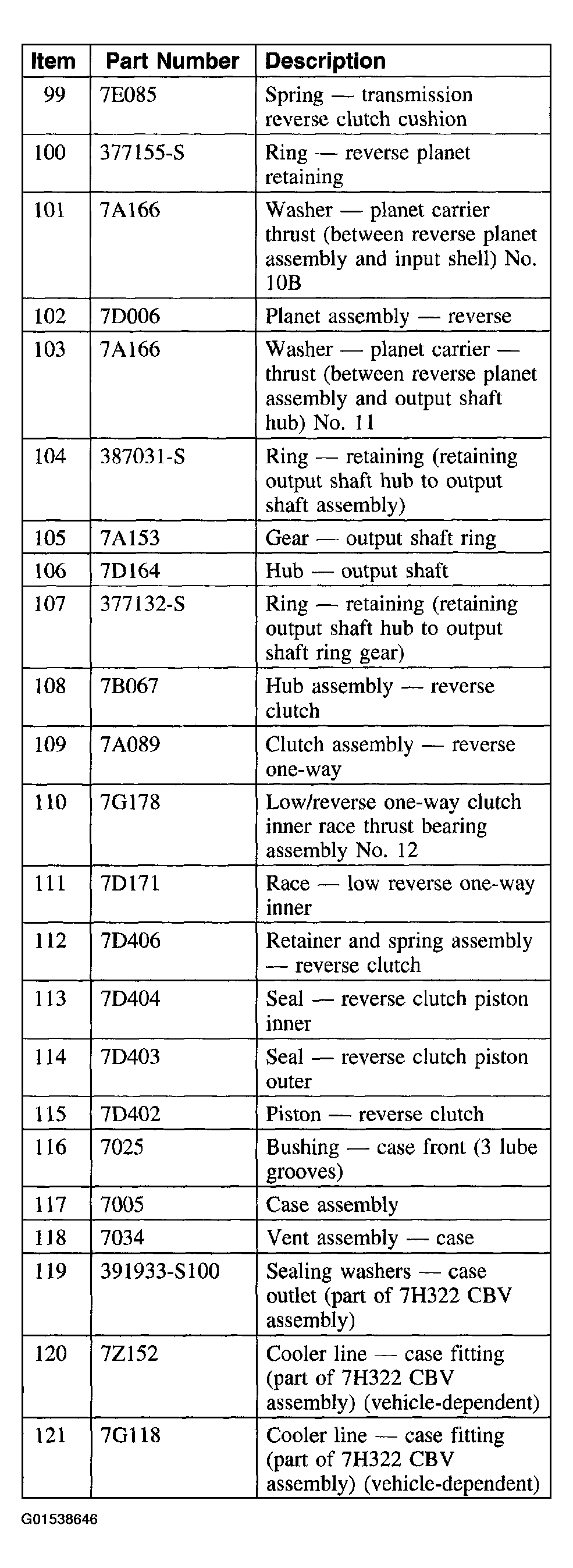

Fig 8: Transmission Component Identification (Items 99-121)

G01538646

Courtesy of FORD MOTOR CO.

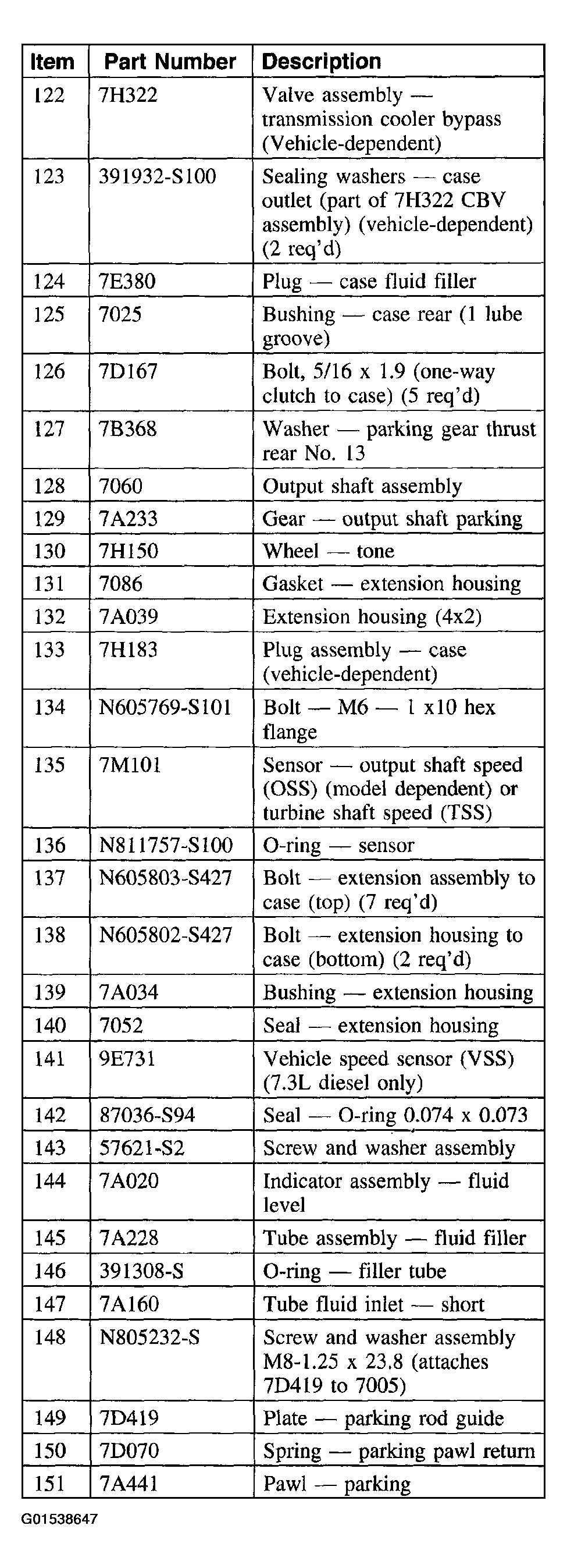

Fig 9: Transmission Component Identification (Items 122-151)

G01538647

Courtesy of FORD MOTOR CO.

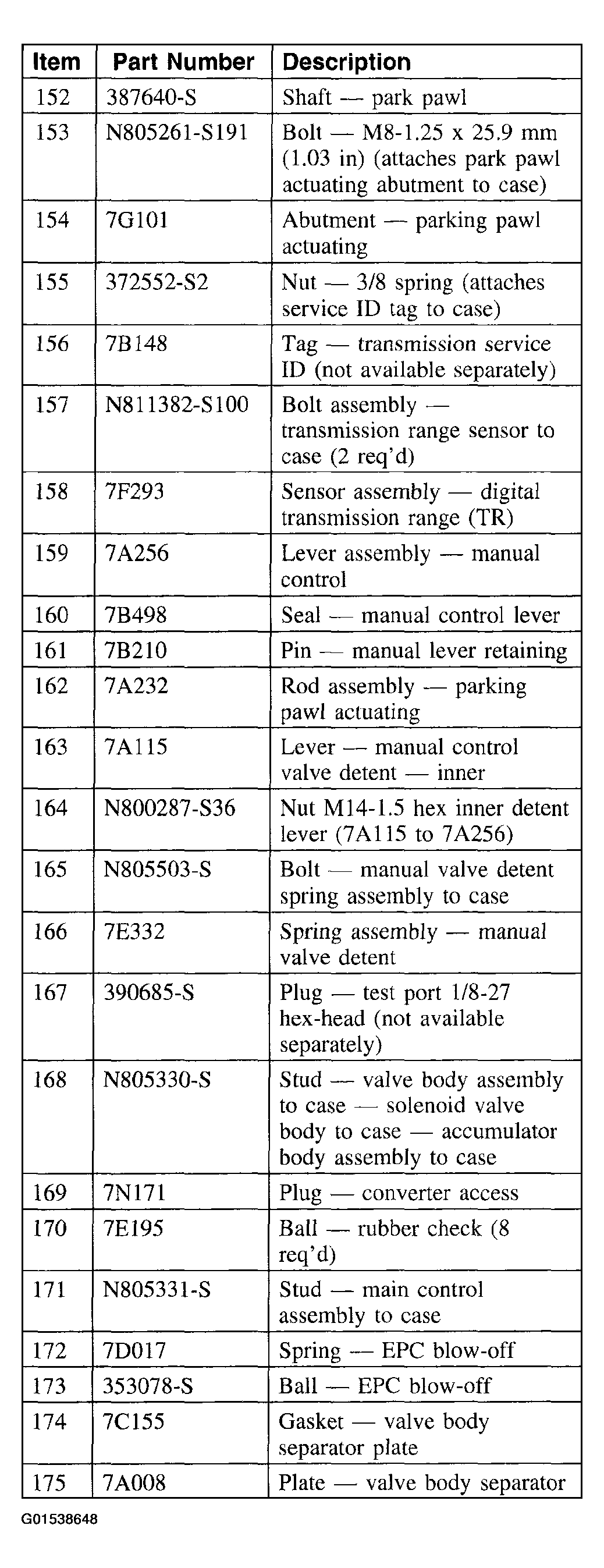

Fig 10: Transmission Component Identification (Items 152-175)

G01538648

Courtesy of FORD MOTOR CO.

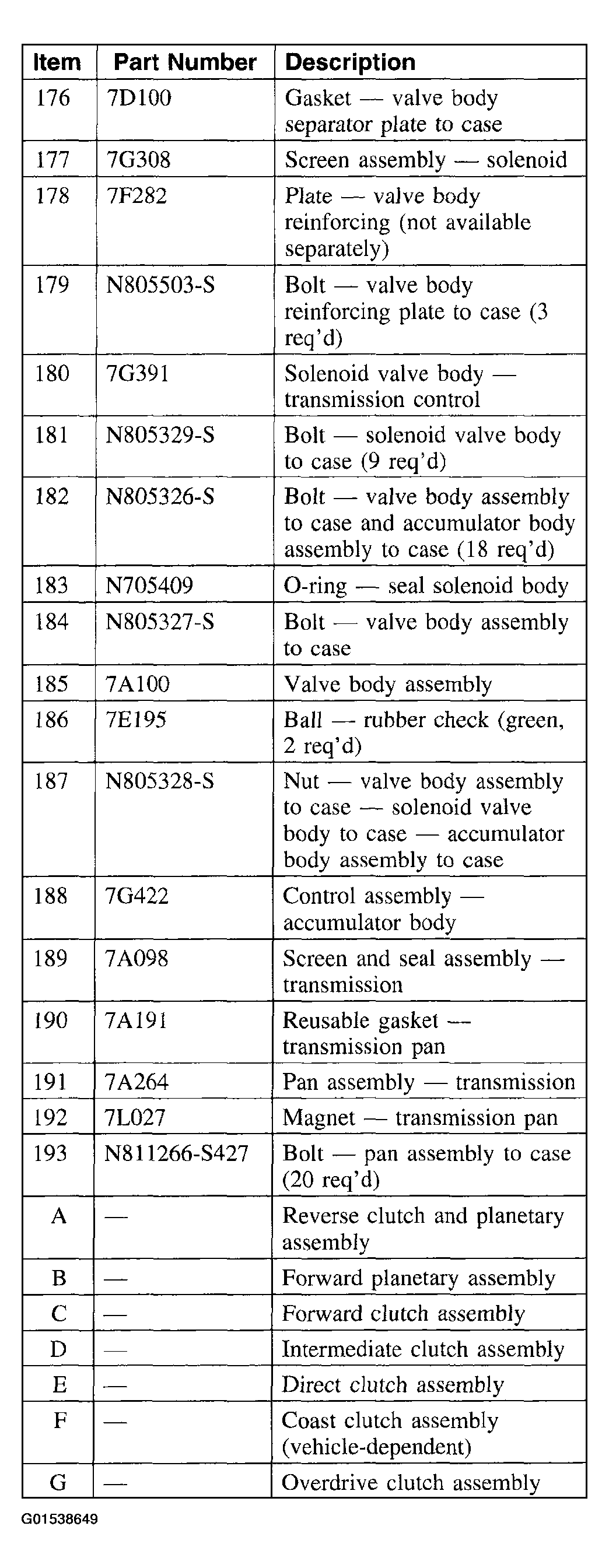

Fig 11: Transmission Component Identification (Items 176-193/A-G)

G01538649

Courtesy of FORD MOTOR CO.
