Hard Start/No Start Diagnostic Procedures: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

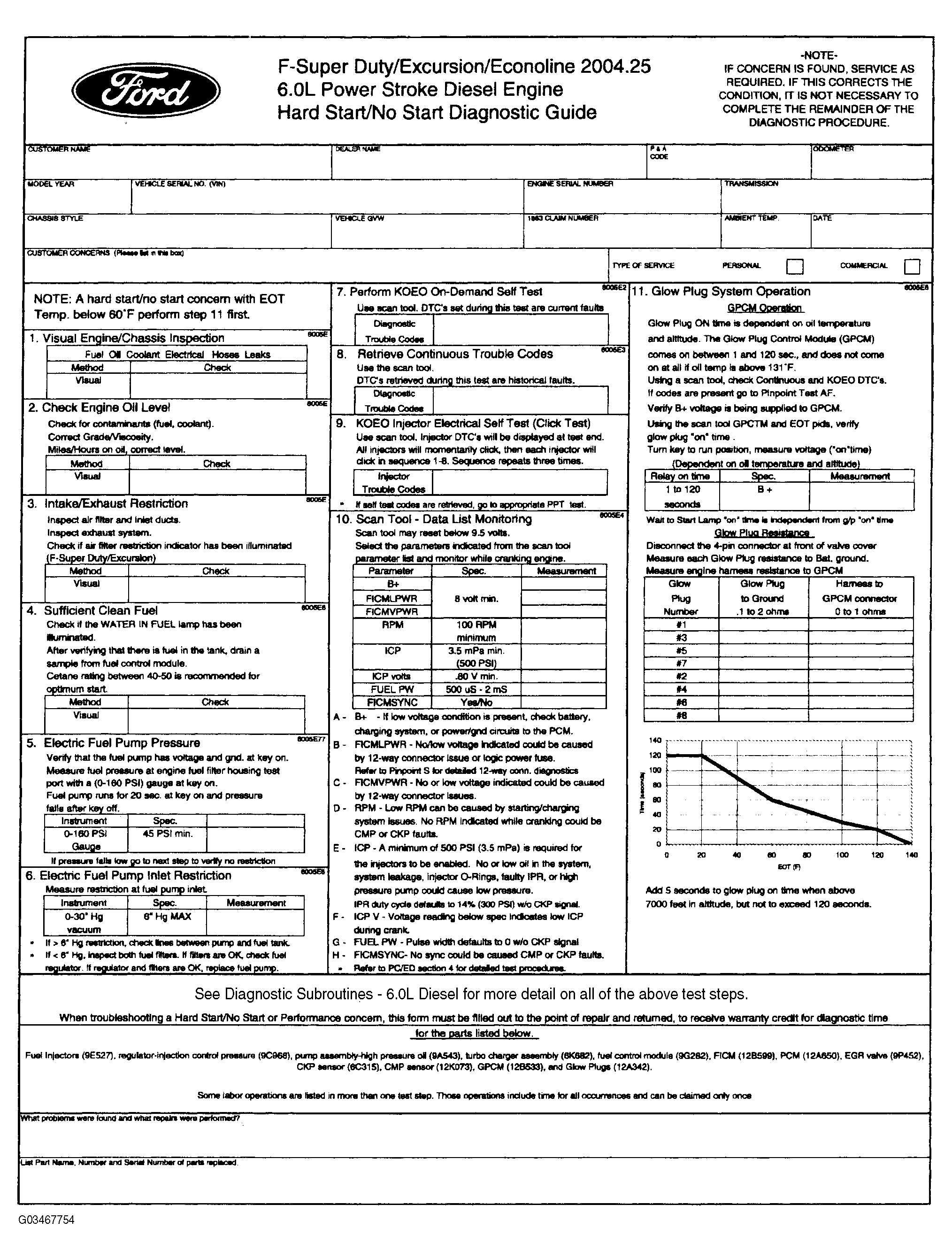

Fig 1: Hard Start/No Start Diagnostic Guide - F-Super Duty/Excursion - Early Build (Built Before 9/2003)
Fig 2: Hard Start/No Start Diagnostic Guide - E-Series or F-Super Duty/Excursion - Late Build (Built After 9/2003)
NOTE:
A hard start/no start concern with the engine oil temperature (EOT) below 15°C (60°F) perform Step 11 first.
