Recommended Procedure:: E-Series

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

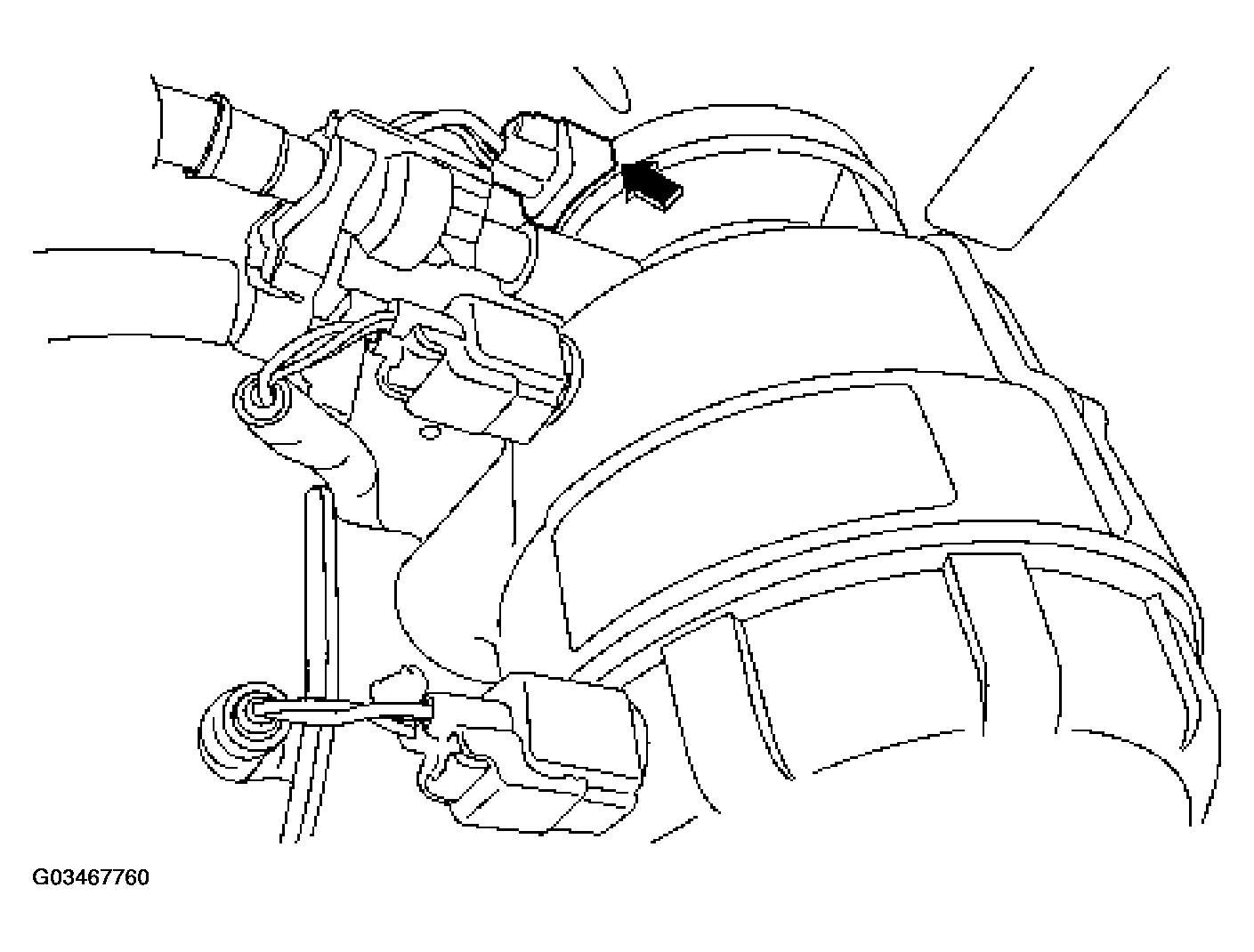

Fig 1: Identifying Electric Fuel Pump Connector - E-Series
G03467760Courtesy of FORD MOTOR CO.

Remove the plug from the front of the fuel filter housing. Install Adapter 303-765 and Gauge 0-1.1 MPa (0-160 psi) Bar 014-00761 or equivalent. Measure fuel pressure in crank or run. If fuel pressure is below the specification of 310 kPa (45 psi), go to the next step to verify no restriction.

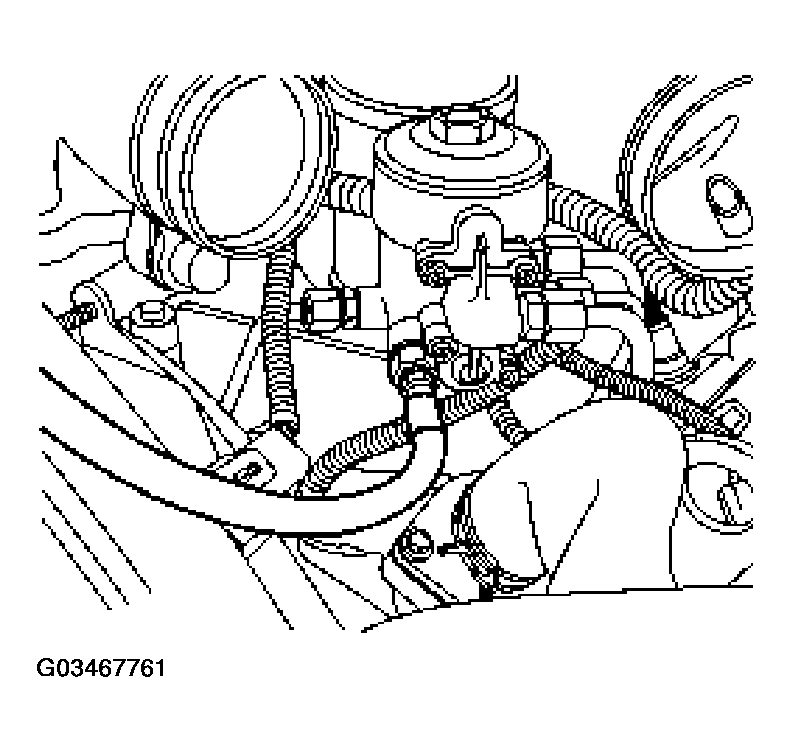

Fig 2: Removing Plug From Front Of Fuel Filter Housing
G03467761Courtesy of FORD MOTOR CO.
