Electro-Hydraulic Injector
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2004 Ford RV Cutaway, 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

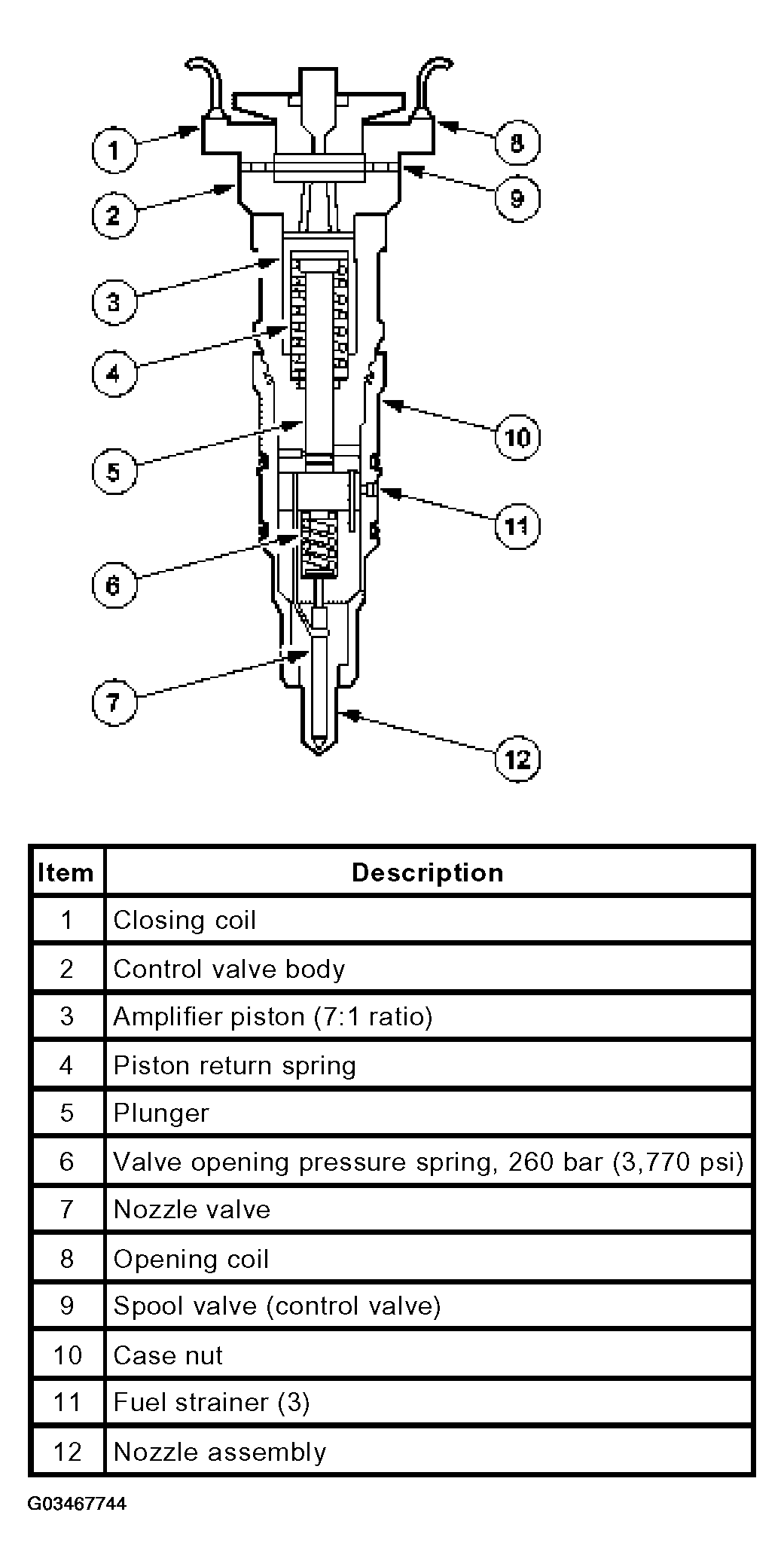

The electro-hydraulic injector is composed of three major components: The oil control, pressure amplification, and the nozzle assembly. The injector uses two 48-volt at 20-amp coils to control a spool valve that directs oil flow in and out of the injector. The fuel injector has a self-extracting hold-down clamp.
