Section 740 (Component Testing)
>>
Component Testing
>>
Exterior rear view mirror switch (17B676)
Exterior rear view mirror switch (17B676)
WARNING:
This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

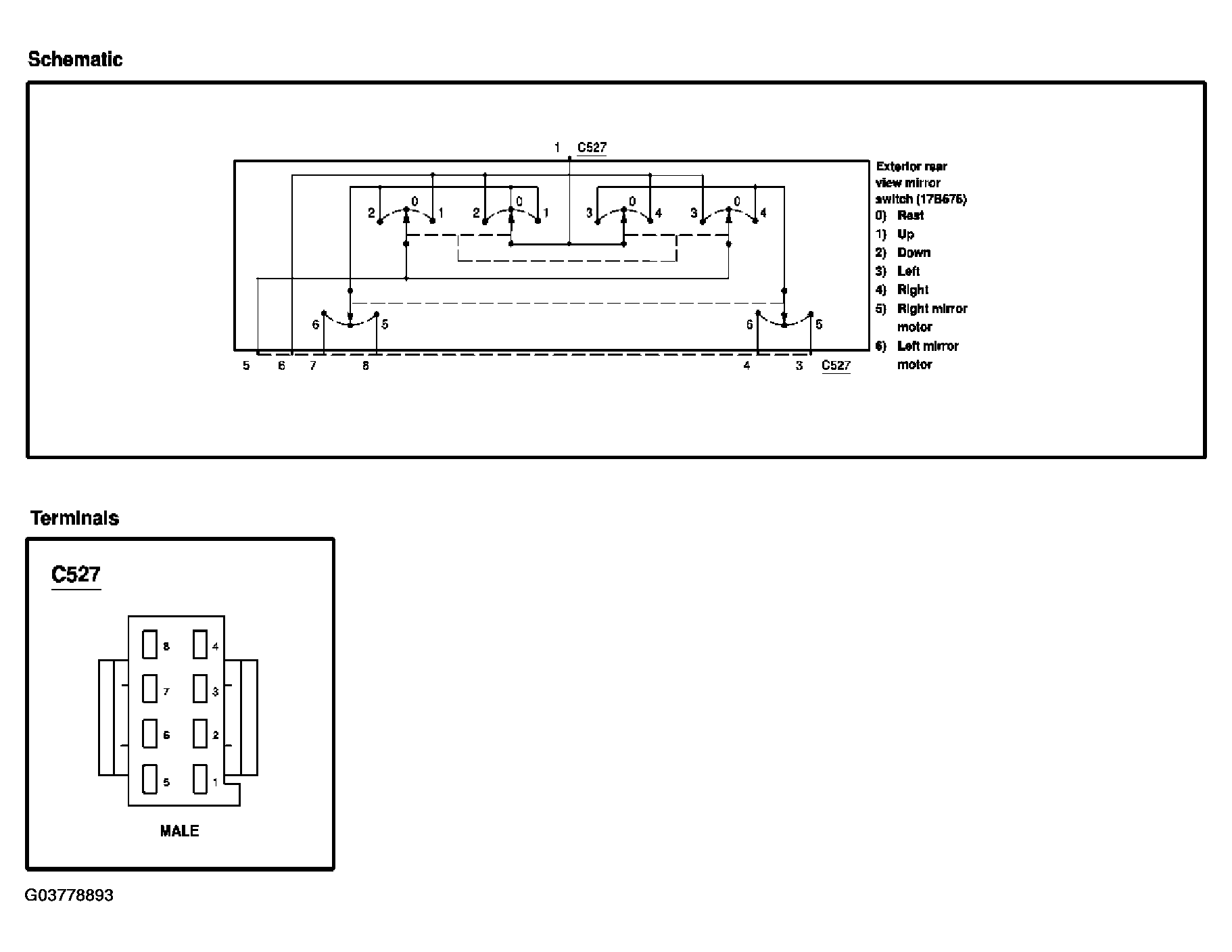

Fig 1: Testing Exterior Rear View Mirror Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

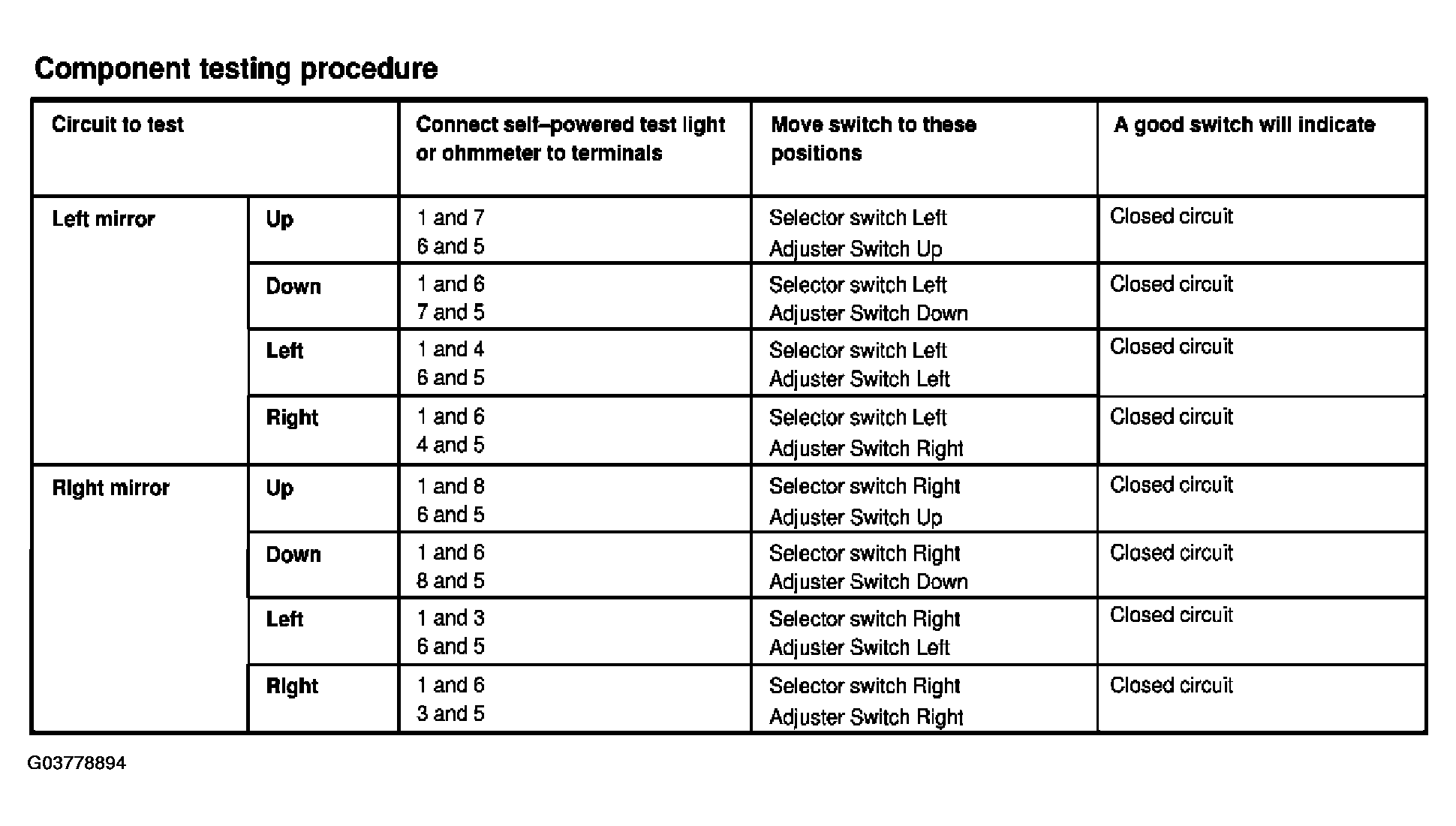

Fig 2: Testing Exterior Rear View Mirror Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
