Exterior rear view mirror switch (17B676)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

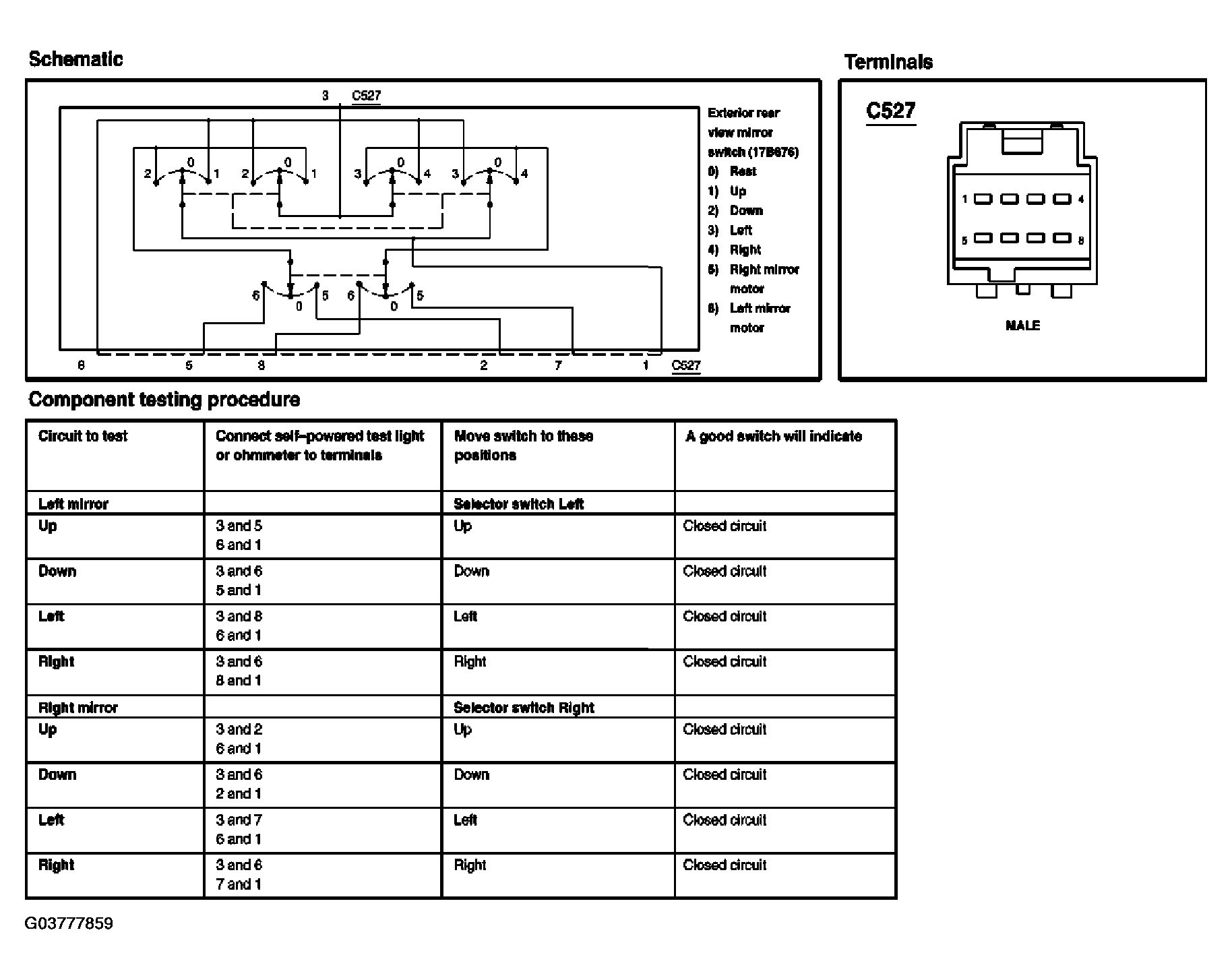

Fig 1: Testing Exterior Rear View Mirror Switch (17B676)
G03777859Courtesy of FORD MOTOR CO.
