Door lock switch, rear doors

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

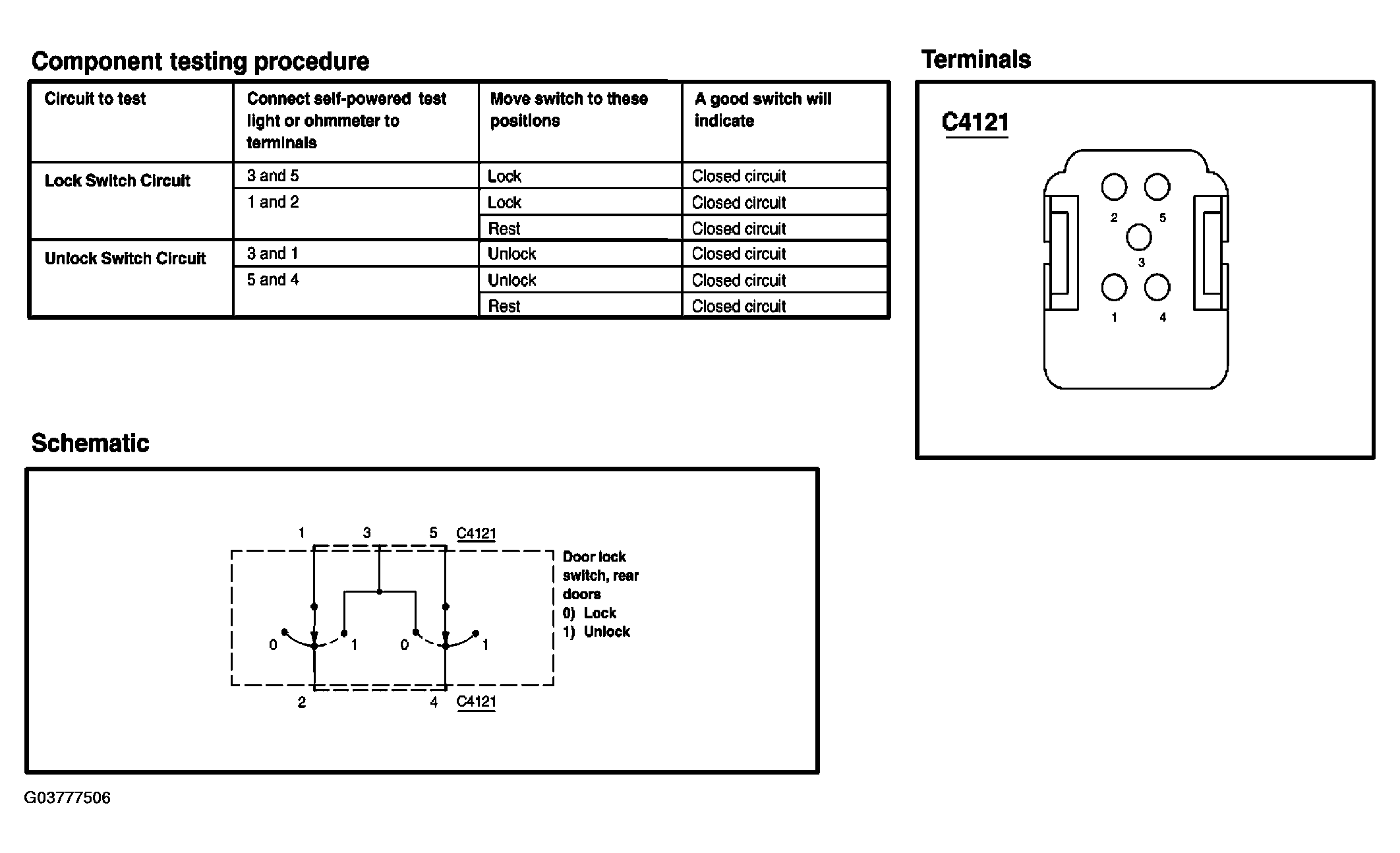

Fig 1: Testing Door Lock Switch And Rear Doors
G03777506Courtesy of FORD MOTOR CO.
