Electronic Automatic Temperature Control (EATC) C228a

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

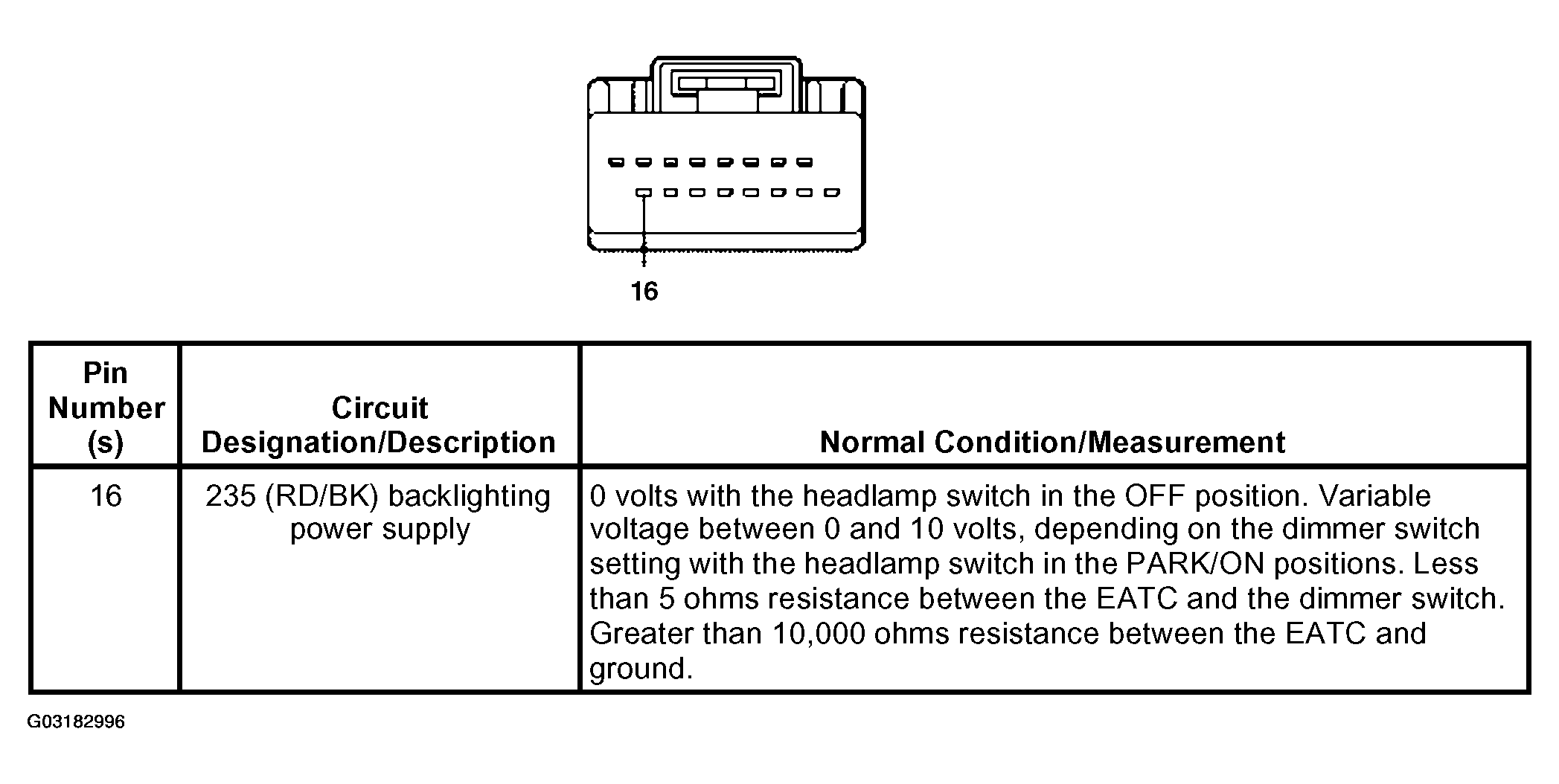

Fig 1: Identifying Electronic Automatic Temperature Control (EATC) C228a Connector Pins
G03182996Courtesy of FORD MOTOR CO.
