Item 7: Transfer Case Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a suitable jack under the transmission.
    Fig 1: Positioning Suitable Jack Under Transmission
    G03182407Courtesy of FORD MOTOR CO.
  2. Position a suitable transmission jack to the transfer case. Securely strap the transfer case to the jack.

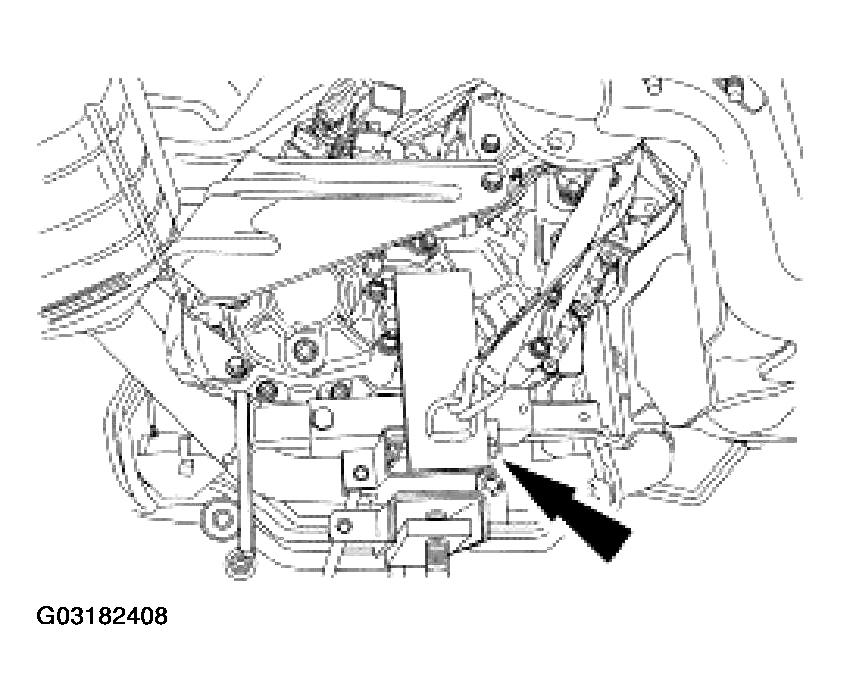

    Fig 2: Positioning Suitable Transmission Jack To Transfer Case
    G03182408Courtesy of FORD MOTOR CO.
  3. Move the transfer case rearward. Remove the transmission insulator, then move the transfer case forward. Using the jack, tip the rear end of the transfer case downward, remove from the vehicle.
