Item 1: Rear Output Shaft Flange Nut Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear drive shaft. For additional information, refer to DRIVELINE SYSTEM .
  2. Index-mark the rear output shaft flange to the rear output shaft.

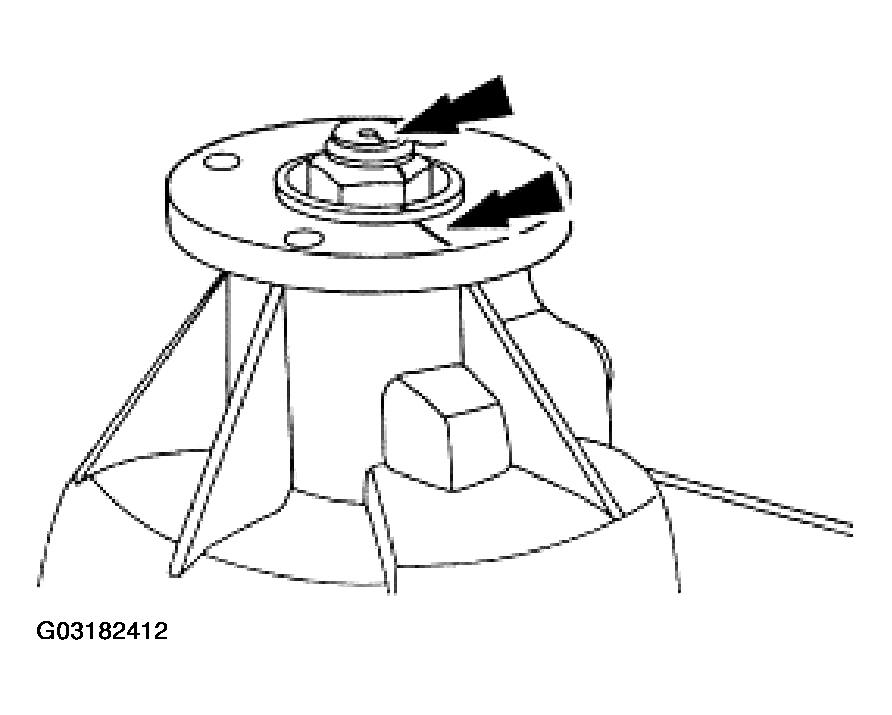

    Fig 1: Marking Rear Output Shaft Flange To Rear Output Shaft
    G03182412Courtesy of FORD MOTOR CO.
  3. Using the special tool to hold the rear output shaft flange, remove the nut.

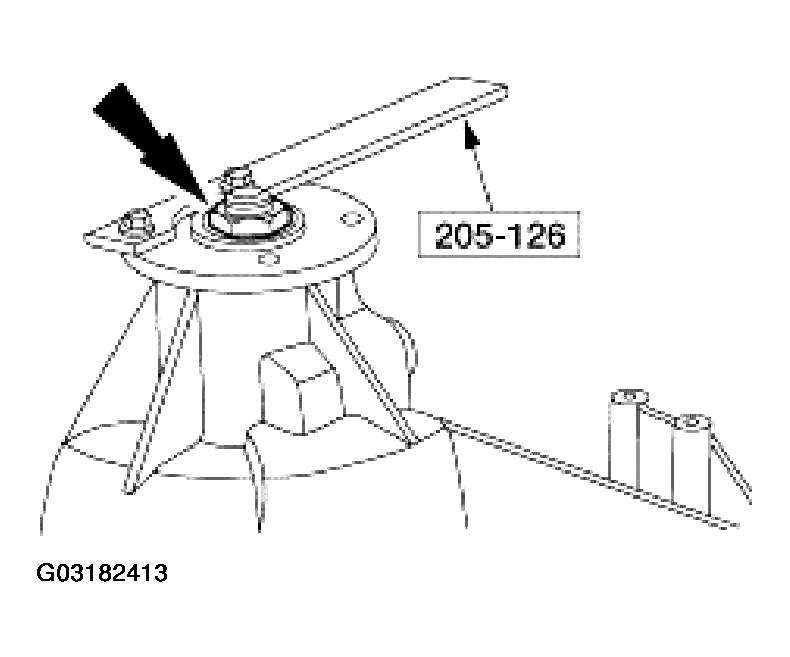

    Fig 2: Identifying Special Tool
    G03182413Courtesy of FORD MOTOR CO.
