Item 1: Rear Output Shaft Flange Nut Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool to hold the rear output shaft flange, install the nut.

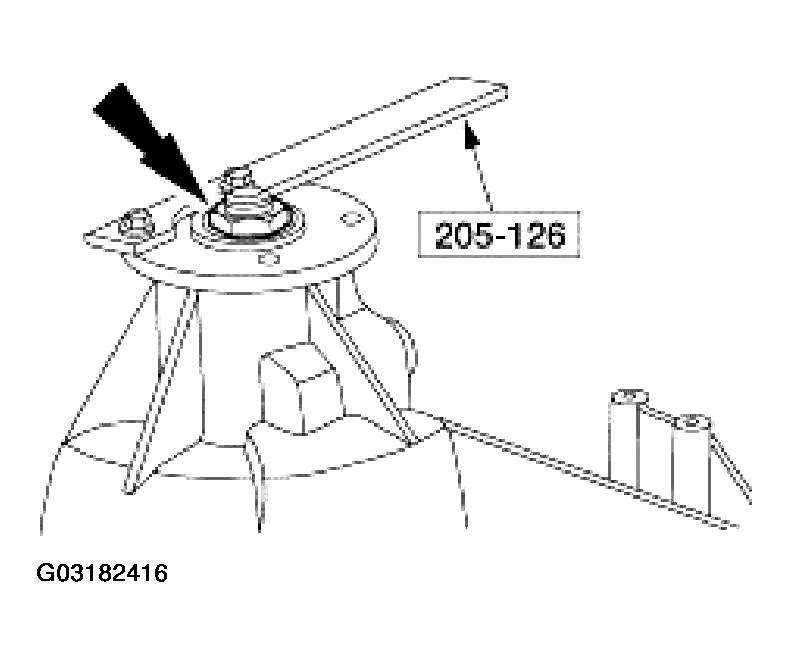

    Fig 1: Installing Nut
    G03182416Courtesy of FORD MOTOR CO.
  2. Install the rear drive shaft. For additional information, refer to DRIVELINE SYSTEM .
