Transfer Case Draining and Filling

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
MERCON® Automatic Transmission Fluid XT-2-QDX MERCON®
    CAUTION: Transfer case failure can result if the correct fill procedures are not followed.
    NOTE: The fluid level must be just below the fill plug.

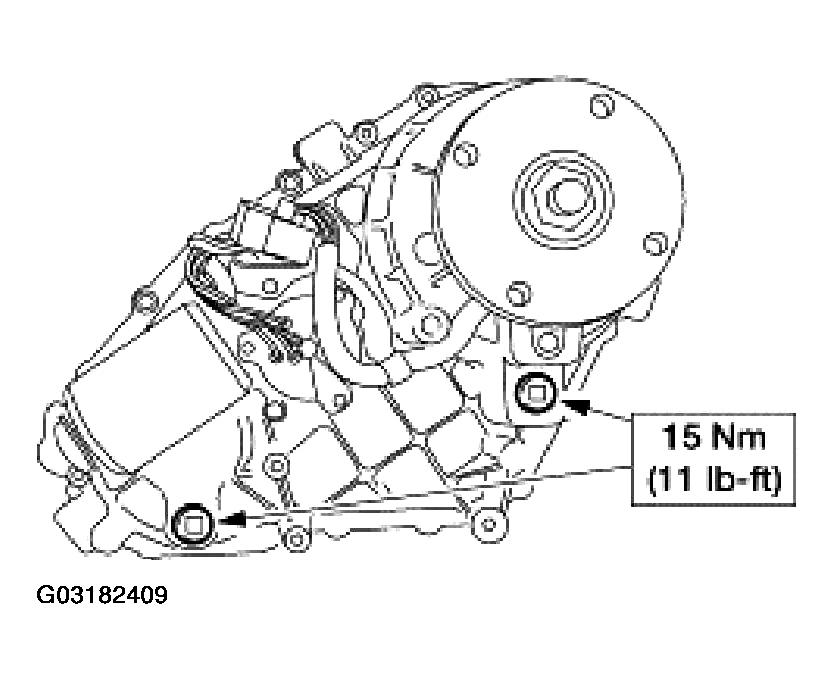

    Fig 1: Identifying Fluid Fill and Drain Plugs
    G03182409Courtesy of FORD MOTOR CO.
  1. Remove the fill plug and check the fluid level.
    • If the fluid is below the proper level, fill the transfer case with automatic transmission fluid.
