Item 6: Connector Interlock Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coil wire pin from the electrical connector.
    1. Remove the connector interlock.
    2. Remove the coil wire pin.
      • Use electrical connector pin extractor tool.

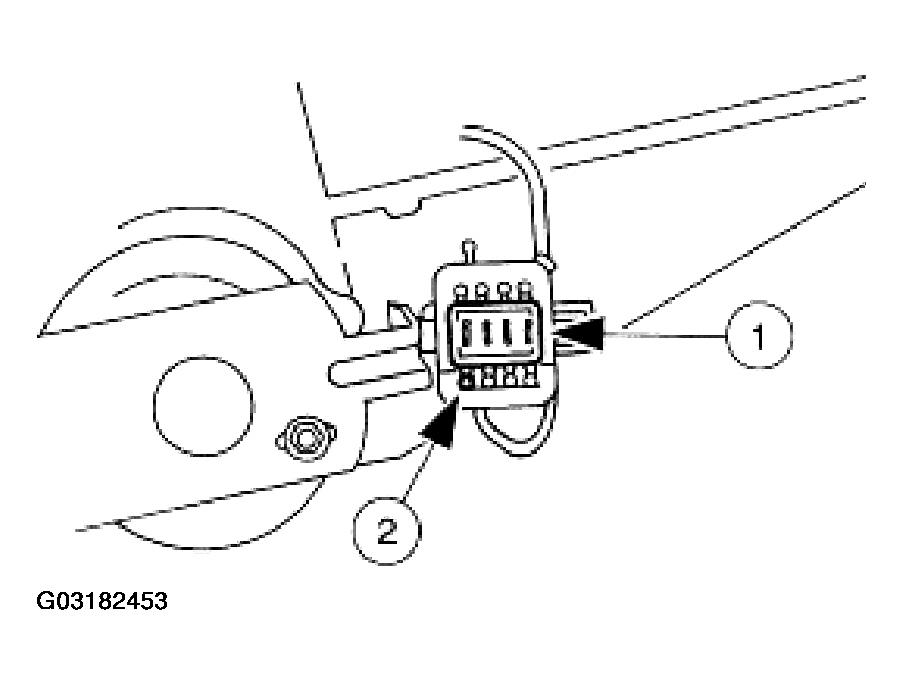

    Fig 1: Removing Coil Wire Pin
    G03182453Courtesy of FORD MOTOR CO.
