Item 6: Connector Interlock Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coil wire pin in the electrical connector.
    1. Install the coil wire pin.
    2. Install the connector interlock.

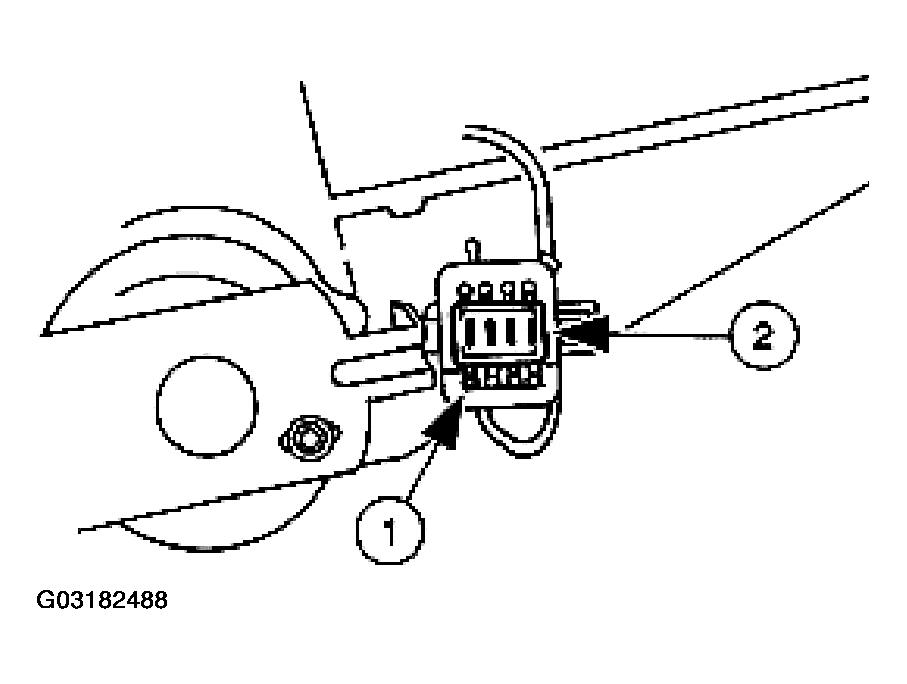

    Fig 1: Installing Connector Interlock
    G03182488Courtesy of FORD MOTOR CO.
