Item 48: Planetary Gear Carrier Support Bearing Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, using a suitable press, install the planetary gear carrier support bearing.

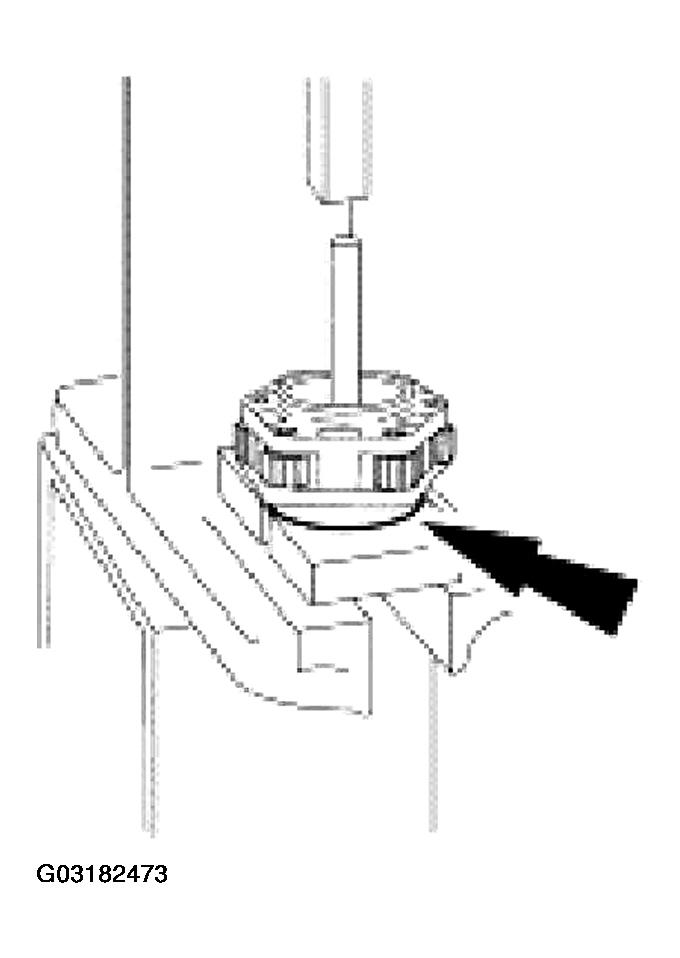

    Fig 1: Installing Planetary Gear Carrier Support Bearing
    G03182473Courtesy of FORD MOTOR CO.
