Item 45: Output Shaft Bushing Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a drift and a hammer, remove the output shaft bushing, if necessary.

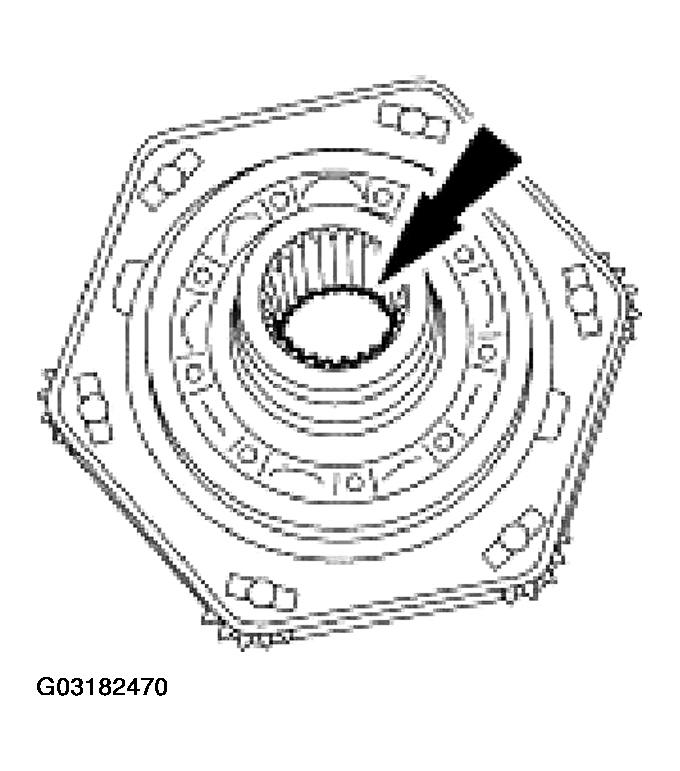

    Fig 1: Removing Output Shaft Bushing
    G03182470Courtesy of FORD MOTOR CO.
