Item 39: Snap Ring Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Holding the front output shaft flange, remove the snap ring and the front output shaft.

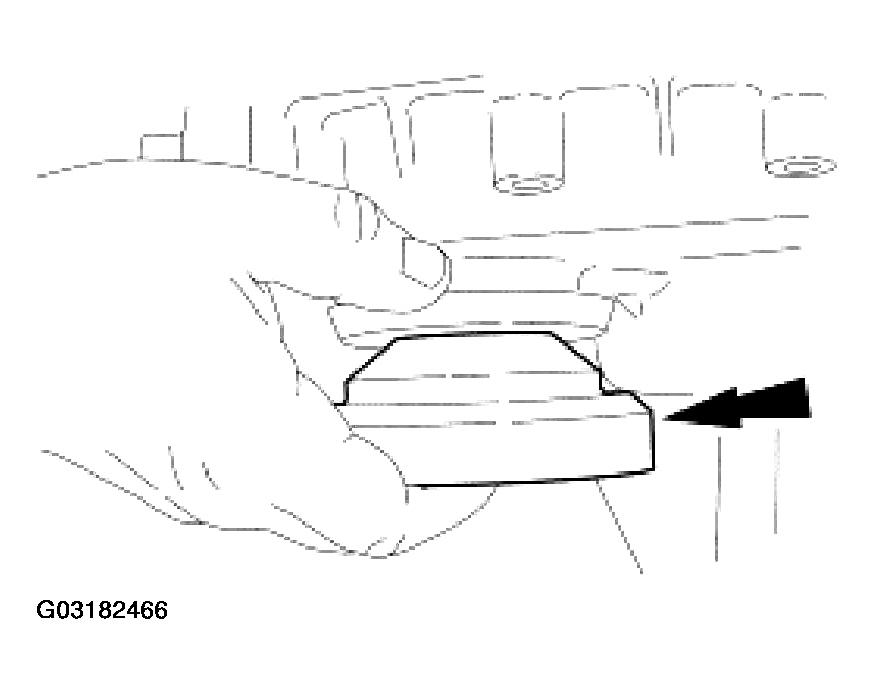

    Fig 1: Holding Front Output Shaft Flange
    G03182466Courtesy of FORD MOTOR CO.
