Item 34: Reduction Shift Fork Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reduction shift fork and high-low collar as an assembly.

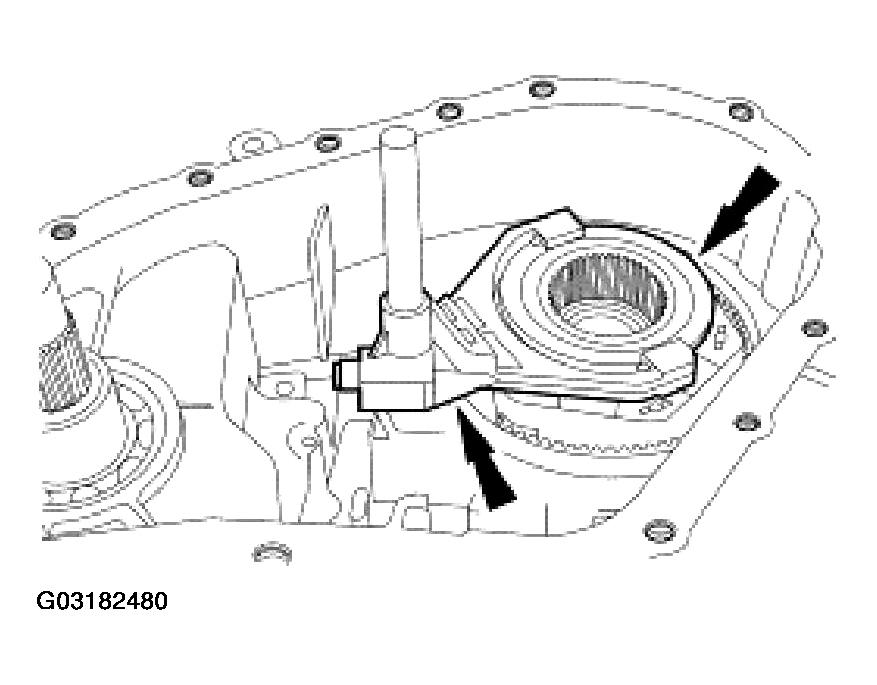

    Fig 1: Installing Reduction Shift Fork And High-Low Collar
    G03182480Courtesy of FORD MOTOR CO.
