Item 33: High-Low Collar Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the high-low collar and reduction fork as an assembly.

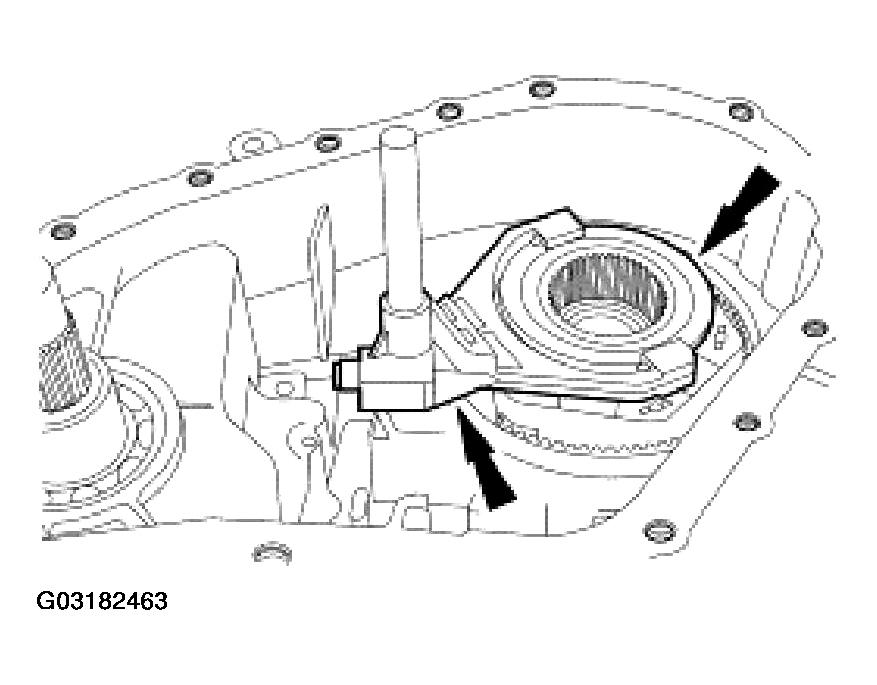

    Fig 1: Removing High-Low Collar And Reduction Fork
    G03182463Courtesy of FORD MOTOR CO.
