Item 31: Rear Output Shaft and Oil Pump Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not disassemble the oil pump assembly.

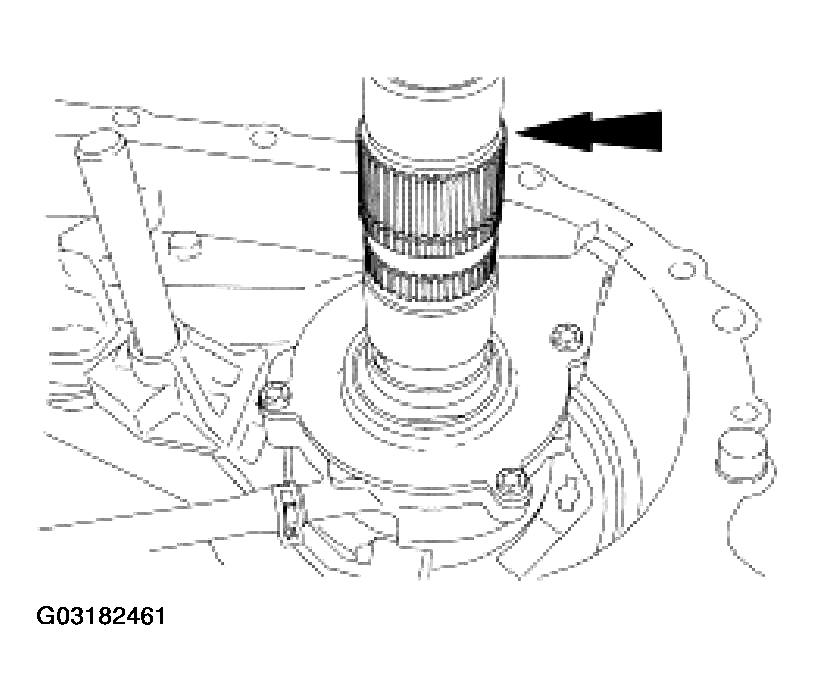

    Fig 1: Removing Oil Pump Assembly And Rear Output Shaft
    G03182461Courtesy of FORD MOTOR CO.
  1. Remove the oil pump assembly and the rear output shaft as an assembly.
