Item 28: Drive Sprocket Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive chain, driven sprocket and drive sprocket as an assembly.

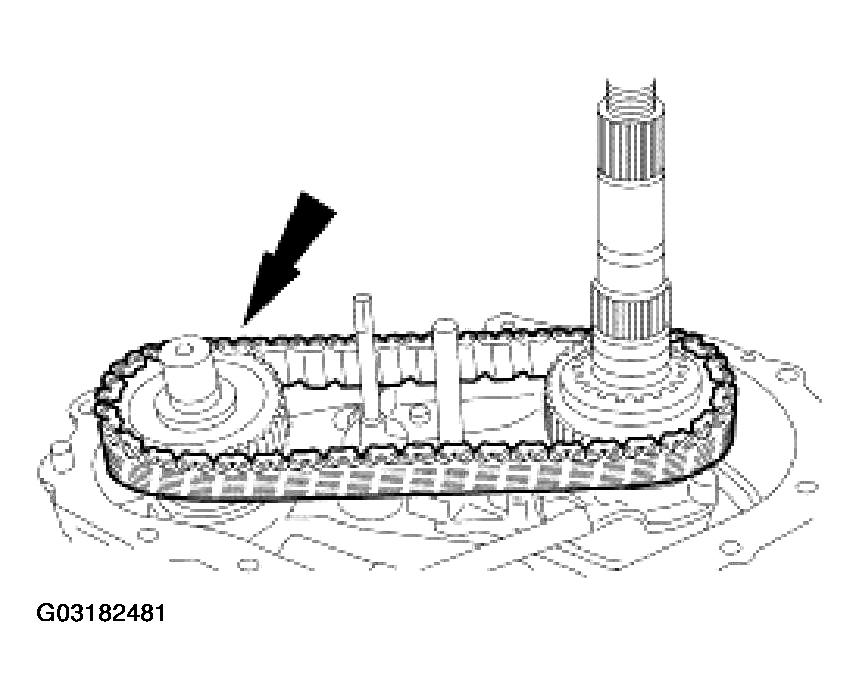

    Fig 1: Installing Drive Chain, Driven Sprocket And Drive Sprocket
    G03182481Courtesy of FORD MOTOR CO.
