Item 26: Drive Chain Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive chain, driven sprocket and drive sprocket as an assembly.

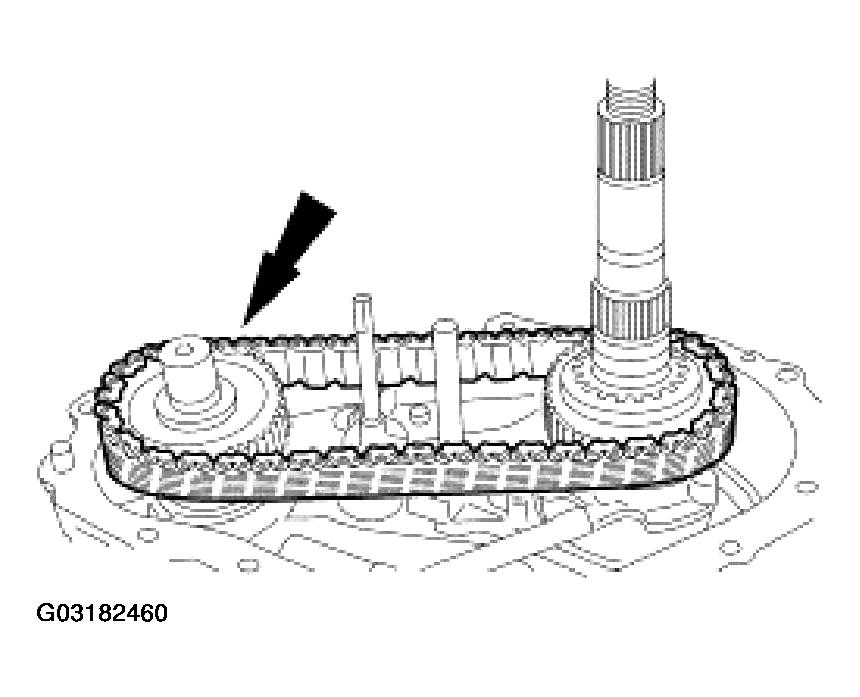

    Fig 1: Removing Drive Chain, Driven Sprocket And Drive Sprocket
    G03182460Courtesy of FORD MOTOR CO.
