Item 18: Clutch Coil Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coil assembly and the cam and coil housing assembly as one assembly.

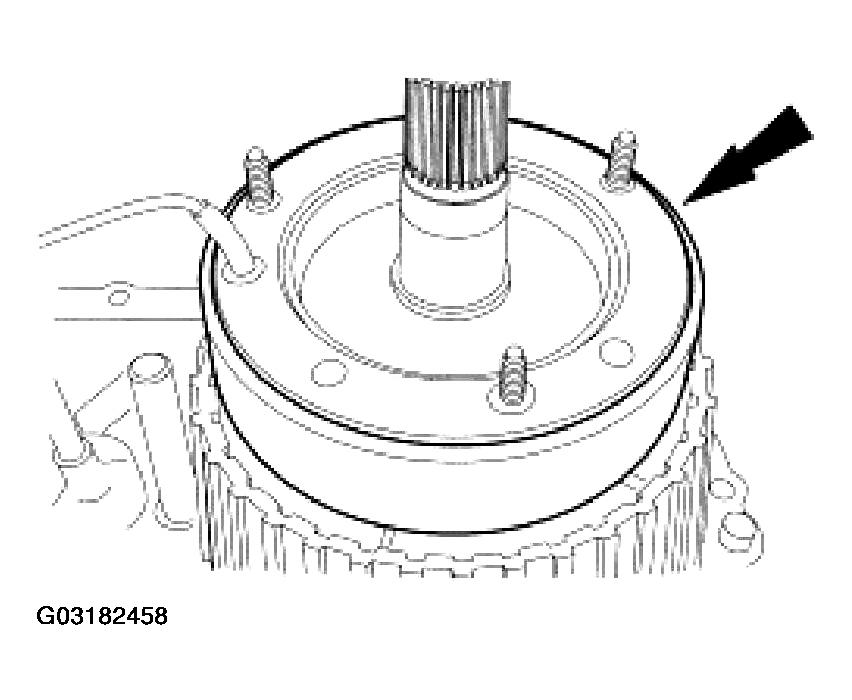

    Fig 1: Removing Coil Assembly And Cam And Coil Housing Assembly
    G03182458Courtesy of FORD MOTOR CO.
