Item 14: Rear Output Shaft Support Bearing Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, press the rear output shaft support bearing into the case.

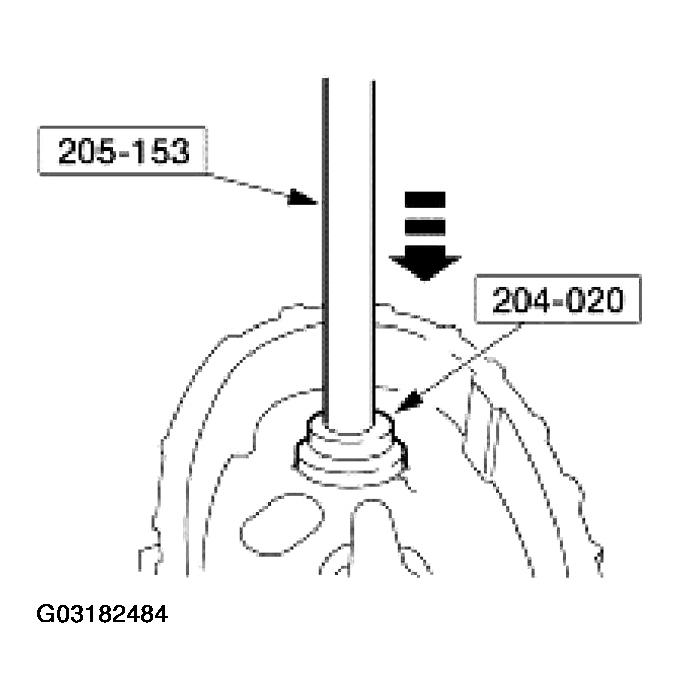

    Fig 1: Pressing Rear Output Shaft Support Bearing Into Case
    G03182484Courtesy of FORD MOTOR CO.
