Item 13: Front Output Shaft Rear Bearing Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the front output shaft rear bearing.

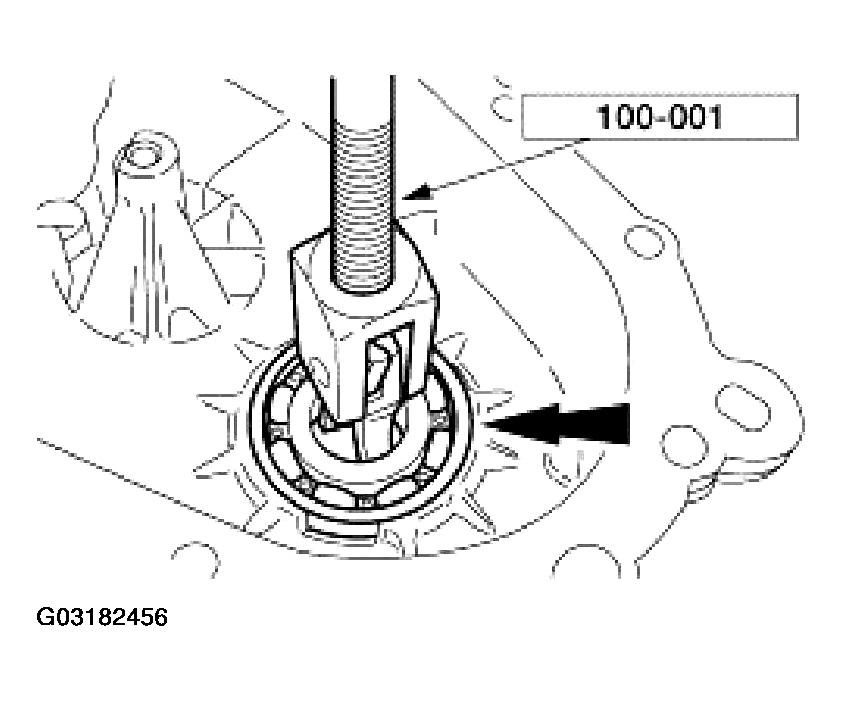

    Fig 1: Removing Front Output Shaft Rear Bearing
    G03182456Courtesy of FORD MOTOR CO.
