Item 13: Front Output Shaft Rear Bearing Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, press the front output shaft rear bearing into the case.

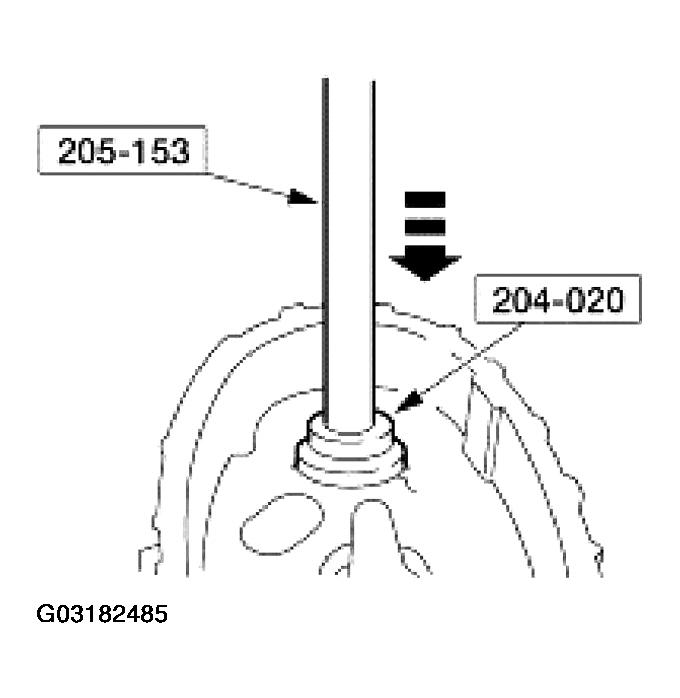

    Fig 1: Pressing Front Output Shaft Rear Bearing Into Case
    G03182485Courtesy of FORD MOTOR CO.
