Item 1: Rear Output Shaft Flange Nut Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool to hold the rear output shaft flange, remove the nut.

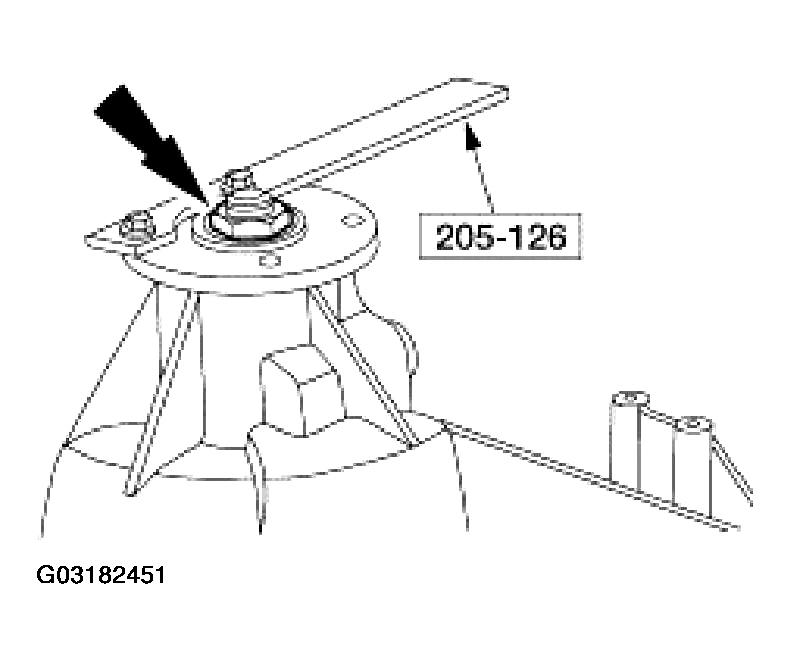

    Fig 1: Identifying Special Tool
    G03182451Courtesy of FORD MOTOR CO.
