Item 29: Snap Ring Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the front output shaft while removing the snap ring.

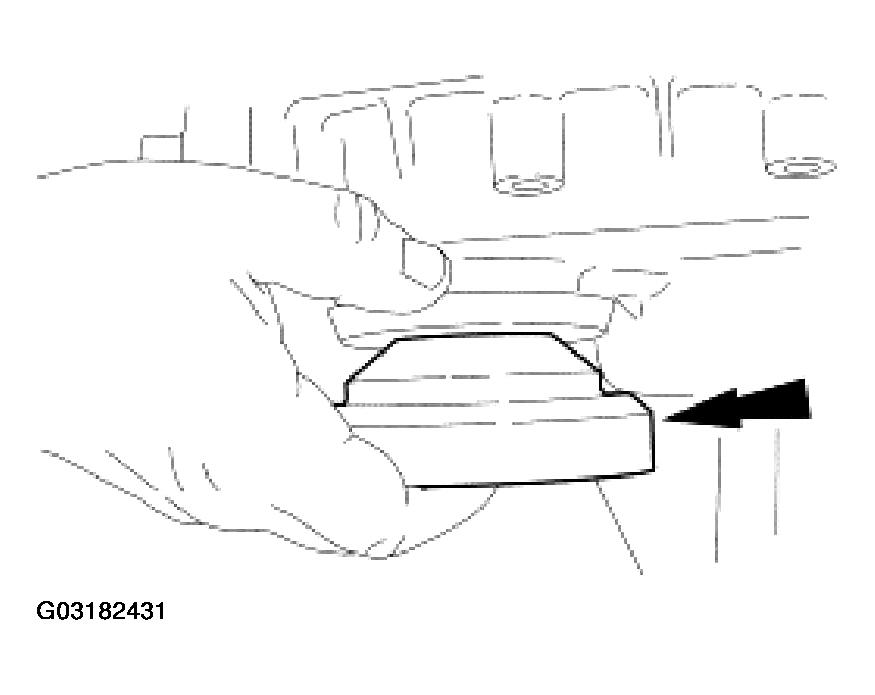

    Fig 1: Removing Snap Ring
    G03182431Courtesy of FORD MOTOR CO.
