Transfer Case Clockwise (CW) and Counterclockwise (CCW) Relays C1173/C1129

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

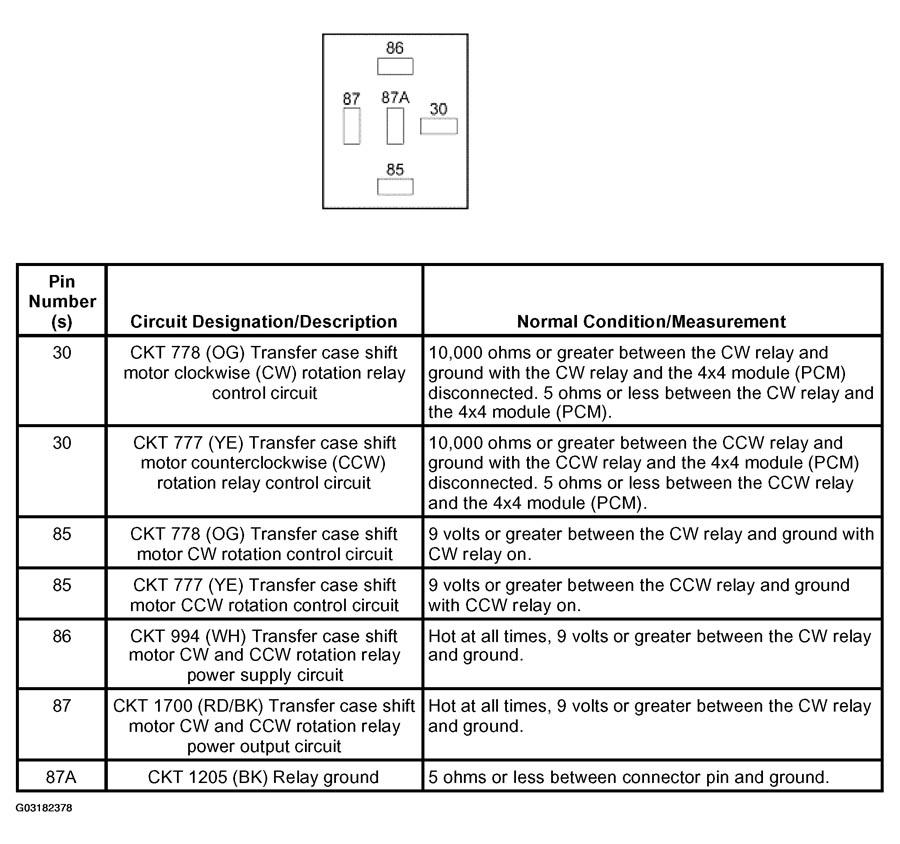

Fig 1: Identifying Transfer Case Clockwise (CW) And Counterclockwise (CCW) Relays C1173/C1129 Connector Pin
G03182378Courtesy of FORD MOTOR CO.
