Connector Identification

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Lincoln Navigator, 2002 Ford Expedition, 2001 Lincoln Navigator, 2001 Ford RV Cutaway, and 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Digital TR Sensor Connector Terminals
G98I01956Courtesy of FORD MOTOR CO.
Fig 2: PCM Harness Connector Terminal Identification
G97C28771Courtesy of FORD MOTOR CO.

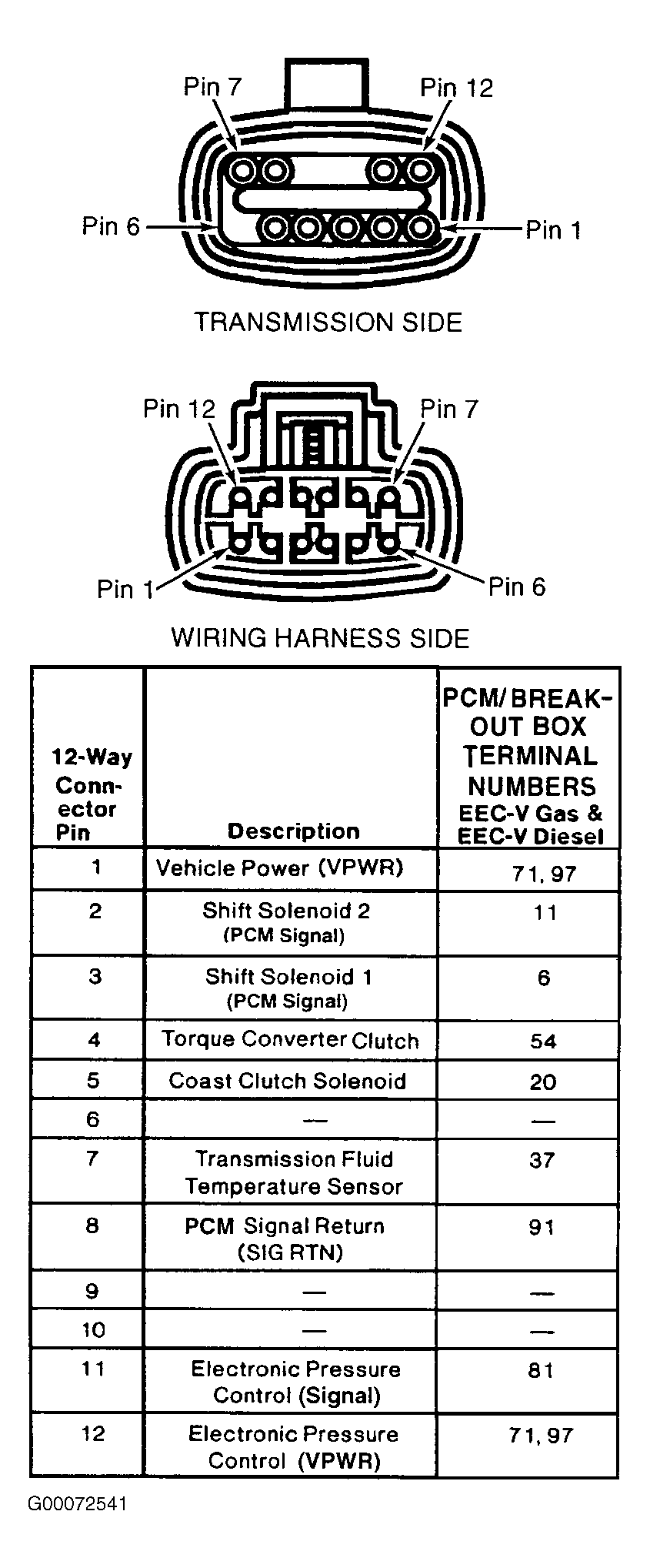

Fig 3: Identifying Transmission Harness Connector Terminals & Circuit Identification Table
G00072541Courtesy of FORD MOTOR CO.
