Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
    2. WARNING: Never remove the pressure relief cap while the engine is operating or when the cooling system is hot. Failure to follow these instructions can result in damage to the cooling system or engine or result in personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When certain all the pressure has been released, (still with a cloth) turn and remove the pressure relief cap. Failure to follow these instructions can result in personal injury.
    CAUTION: The coolant must be recovered in a suitable, clean container for reuse. If the coolant is contaminated, it must be recycled or disposed of correctly and the system filled with new coolant.
    CAUTION: Always fill the cooling system with the same type of coolant that was drained from the system. Do not mix coolant types.
    CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to the engine and cooling components. In order to obtain these protections, the engine coolant must be maintained at the correct concentration and fluid level in the degas bottle.
  2. When adding engine coolant, use a 50/50 mixture of engine coolant and distilled water.

    To maintain the integrity of the coolant and the cooling system:

    • Add Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent meeting Ford specification WSS-M97B51-A1 (yellow color). Always fill the cooling system with the same type of coolant that was drained from the system. Do not mix coolant types.
    • Do not add orange-colored Motorcraft Specialty Orange Engine Coolant VC-2 or equivalent meeting WSS-M97B44-D. Mixing coolants may degrade the coolant's corrosion protection.
    • Do not add alcohol, methanol, brine, or any engine coolants mixed with alcohol or methanol anti-freeze. These can cause engine damage from overheating or freezing.

      Relieve the cooling system pressure and disconnect and cap the engine vent hose and the radiator vent hose.

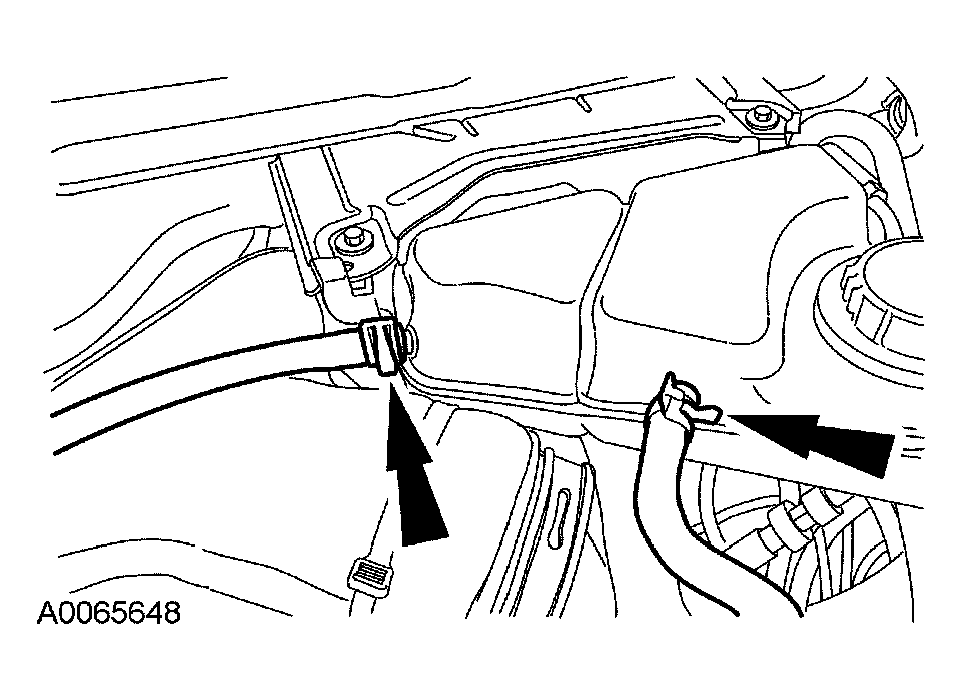

      Fig 1: Disconnecting Cap Engine Vent Hose And Radiator Vent Hose
      G03899185Courtesy of FORD MOTOR CO.
  3. Remove the bolts and position the degas bottle aside.

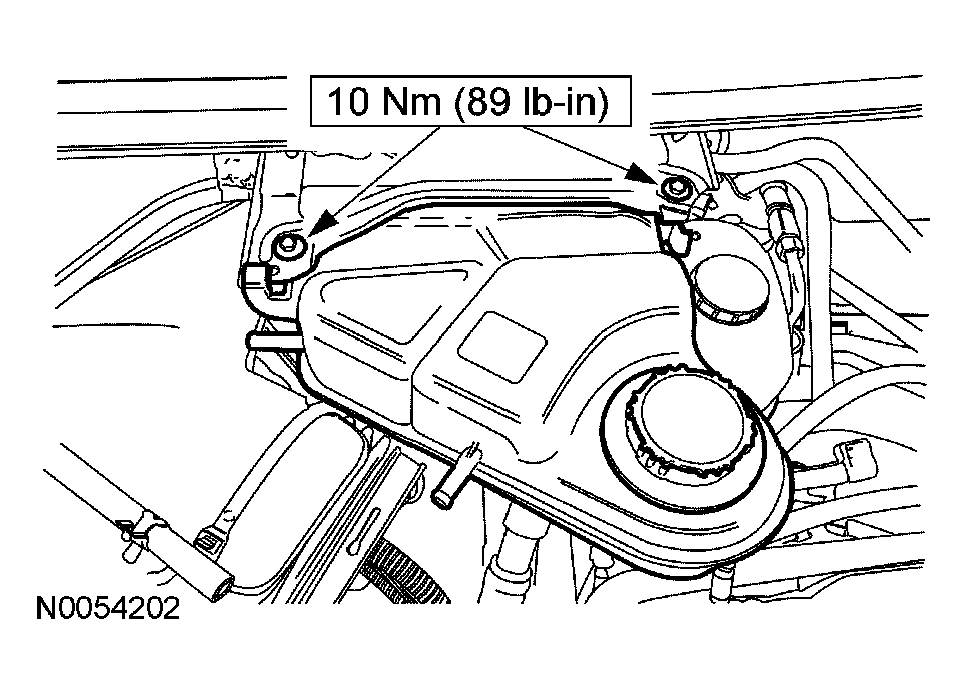

    Fig 2: Removing Degas Bottle Aside Bolts
    G03899186Courtesy of FORD MOTOR CO.
    4. NOTE: Early build shown, late build similar.

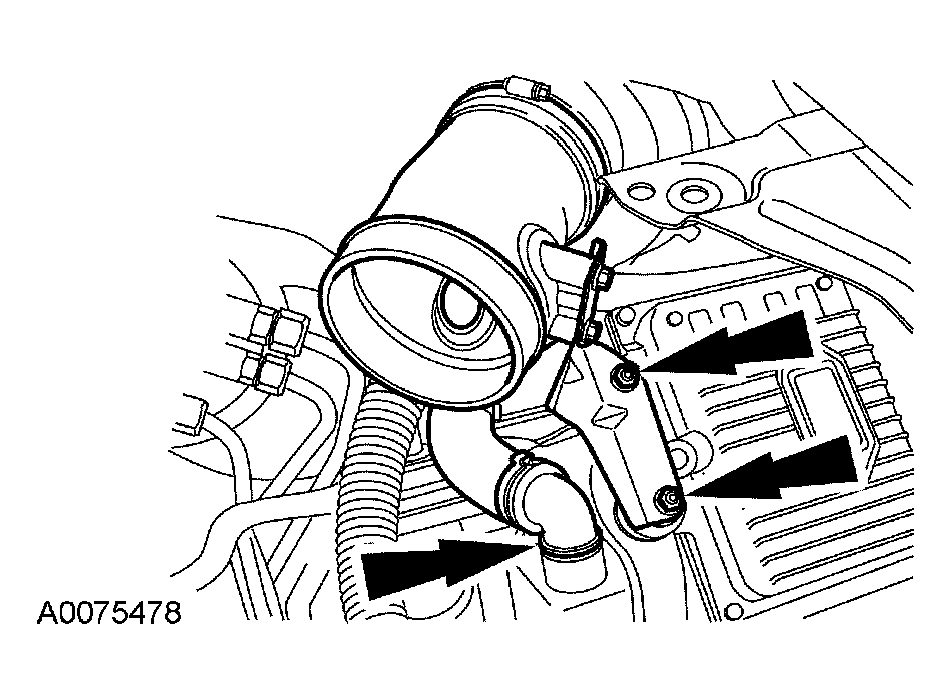

    Fig 3: Disconnecting Vent Tube
    G03899187Courtesy of FORD MOTOR CO.
  4. Remove the turbocharger inlet pipe mounting nuts and disconnect the vent tube.
  5. Loosen the clamp and remove the turbocharger inlet pipe.
    Fig 4: Removing Turbocharger Inlet Pipe
    G03899188Courtesy of FORD MOTOR CO.
    6. NOTE: Early build shown, late build similar.

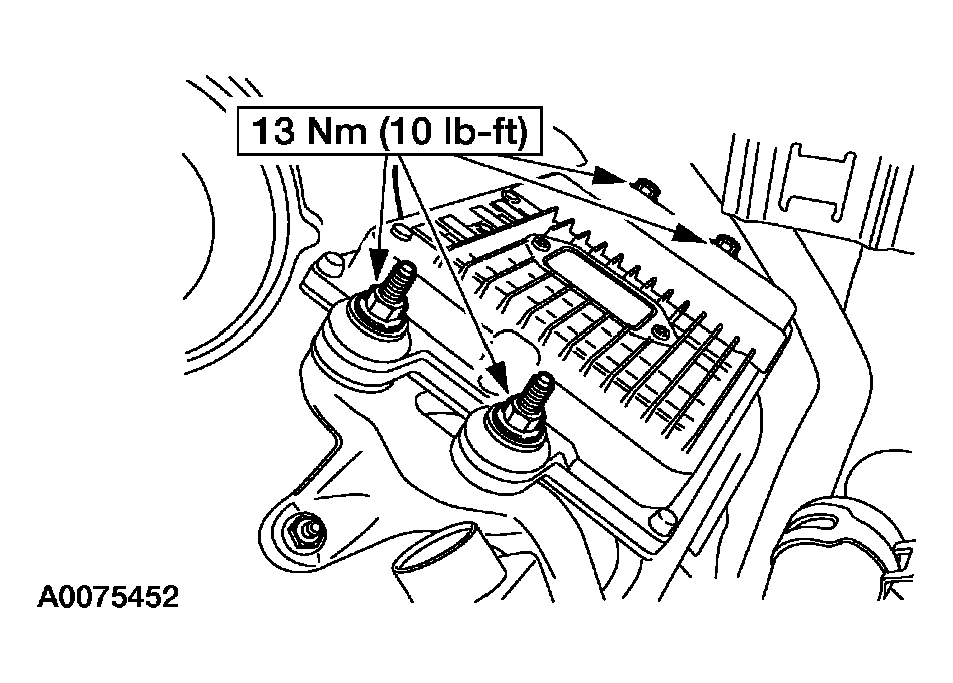

    Fig 5: Removing Fuel Injector Control Module Mounting Bolts
    G03899189Courtesy of FORD MOTOR CO.
  6. Remove the fuel injector control module mounting bolts and position the module for access to the electrical connectors.
  7. Disconnect the fuel injector control module electrical connectors. Remove the fuel injector control module.

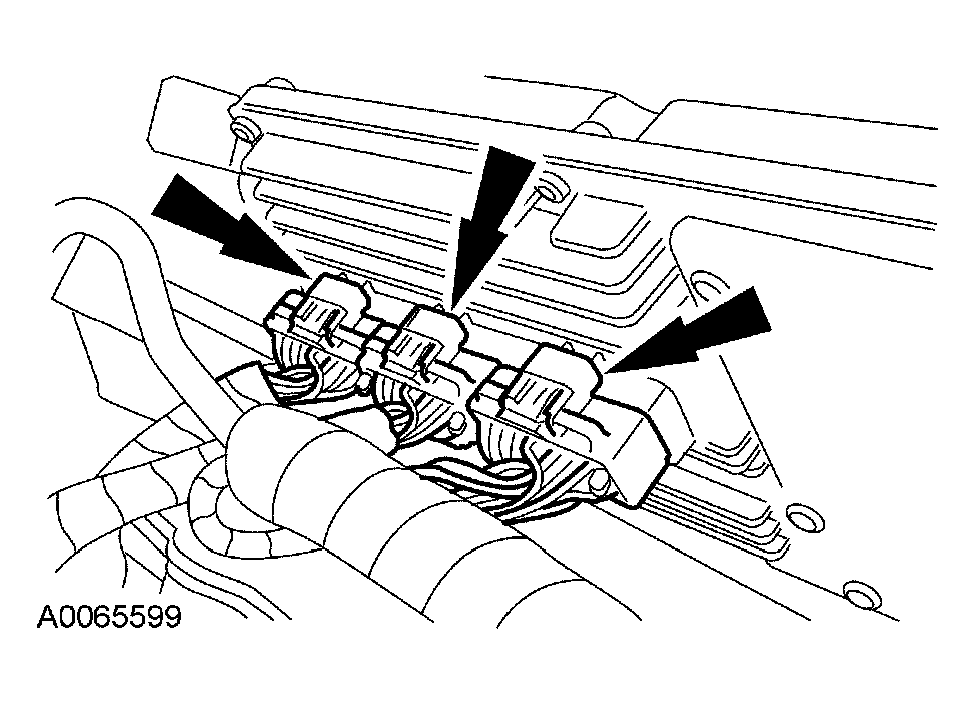

    Fig 6: Disconnecting Fuel Injector Control Module Electrical Connectors
    G03899190Courtesy of FORD MOTOR CO.
    8. NOTE: Late build shown, early build similar.

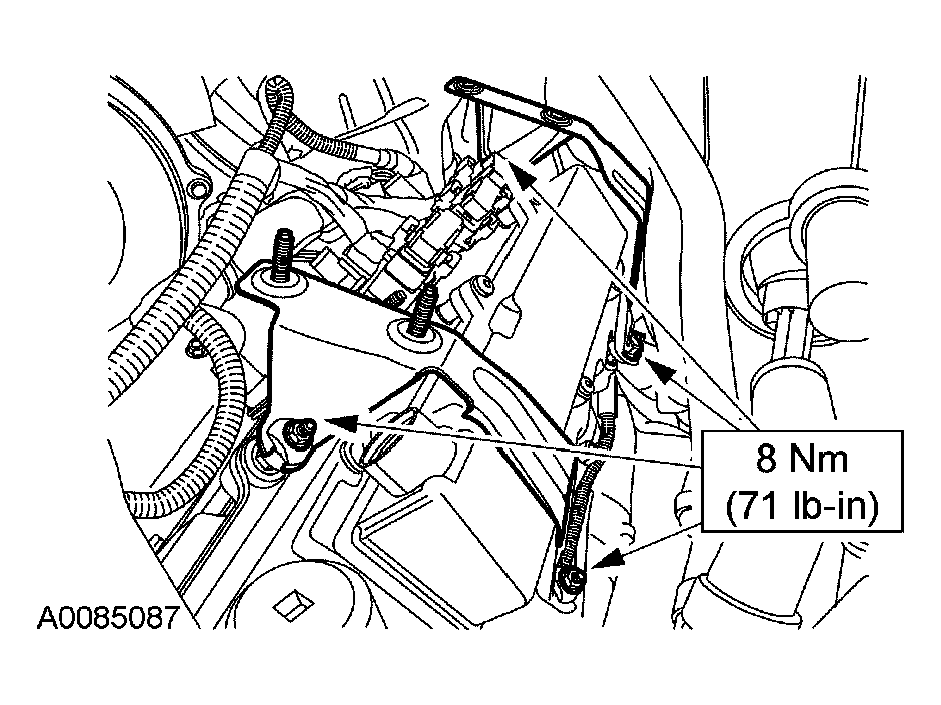

    Fig 7: Removing Fuel Injector Control Module Mounting Bracket
    G03899191Courtesy of FORD MOTOR CO.
  8. Remove the fuel injector control module mounting bracket.
    9. NOTE: Early build shown, late build similar.

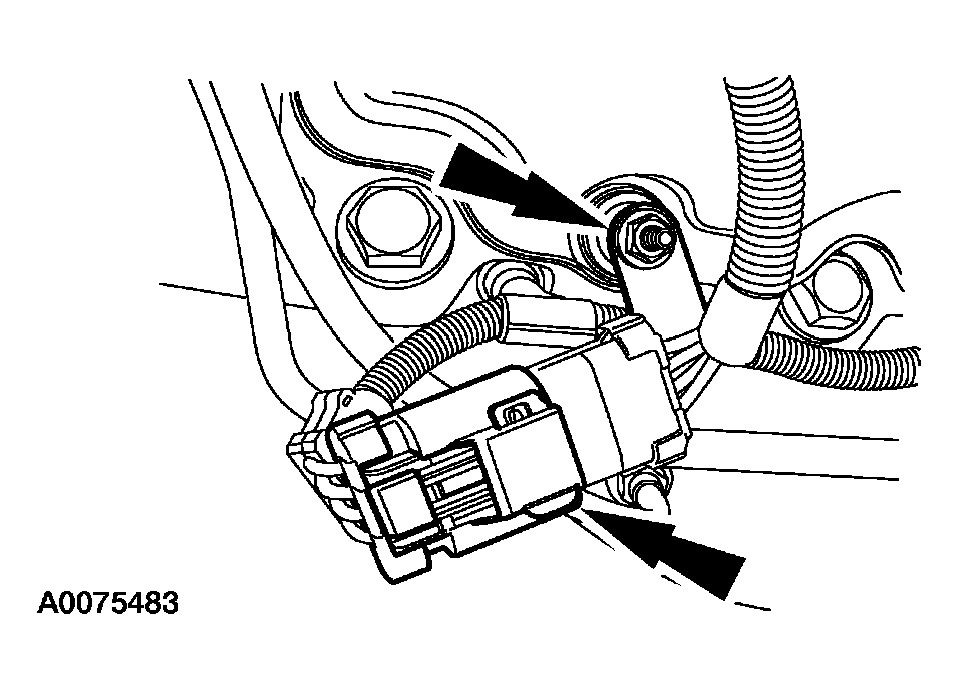

    Fig 8: Disconnecting Glow Plug Connector
    G03899192Courtesy of FORD MOTOR CO.
  9. Disconnect the glow plug connector and retainer.
  10. Remove the nut and position the oil level indicator and tube aside.

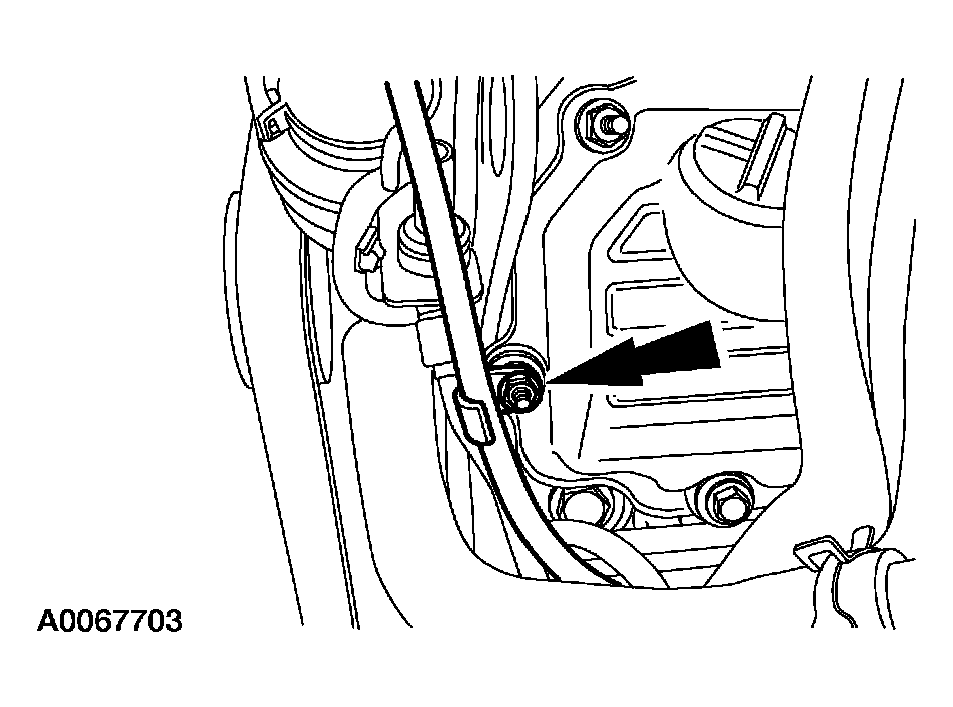

    Fig 9: Removing Nut
    G03899193Courtesy of FORD MOTOR CO.
    11. CAUTION: To prevent engine damage, do not use air powered tools when installing the valve cover.
    NOTE: Mark the position of the valve cover bolts for valve cover bolt installation.
    NOTE: Early build shown, late build similar.

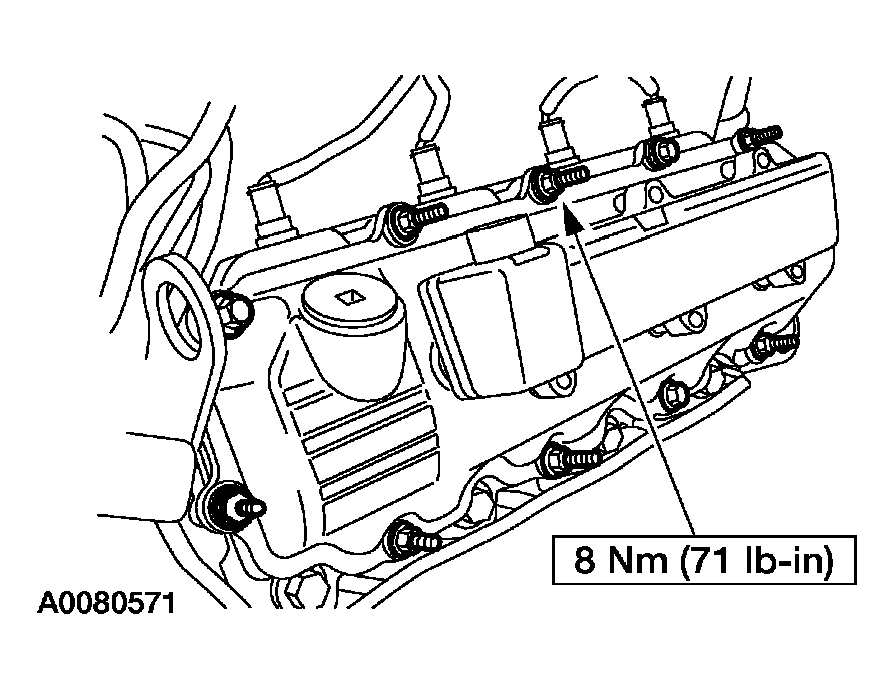

    Fig 10: Removing Valve Cover Bolts
    G03899194Courtesy of FORD MOTOR CO.
  11. Remove the eleven bolts and the valve cover. Clean and inspect the valve cover gasket, and install a new gasket if necessary.
    12. CAUTION: Vehicles with a 6.0L diesel, with the engine cold, fill the degas bottle only to the MIN line. The correct fill level on these vehicles is between the MIN line and 15 mm (0.59 in) below the MIN line. This fill level will allow for coolant expansion. Overfilling the degas bottle may result in damage to the pressure cap, which can cause the engine to overheat.
  12. To install, reverse the removal procedure.
