Oil Pan - Lower Dual Generator: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Install a new O-ring on the oil pick-up tube and position the oil pick-up tube in the oil pan.
    Fig 1: Locating Oil Pickup Tube O-Ring Seal
    G03887262Courtesy of FORD MOTOR CO.
  2. Install a new press-in-place gasket into the upper oil pan.

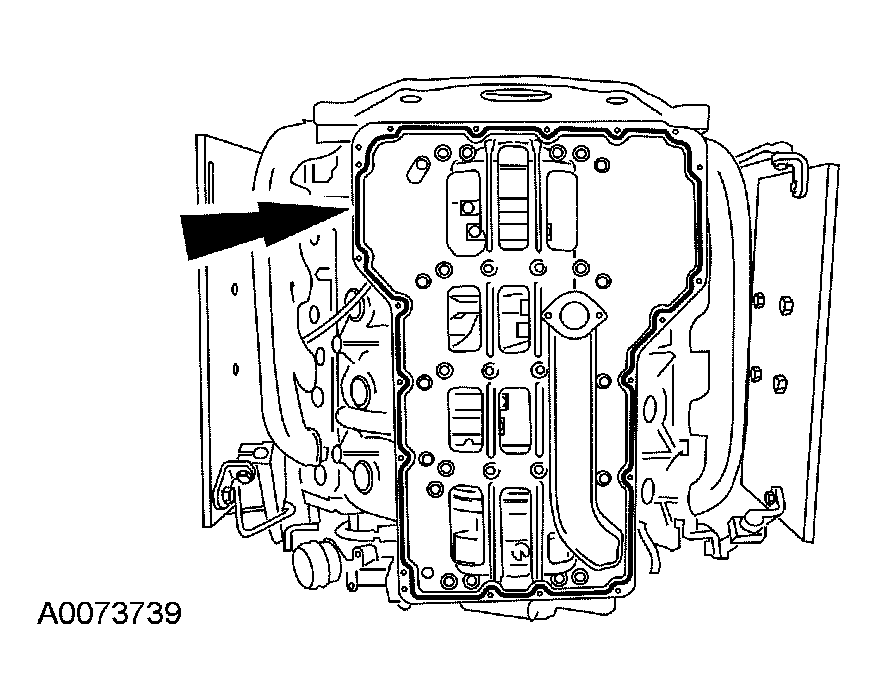

    Fig 2: Installing New Press-In-Place Gasket
    G03899478Courtesy of FORD MOTOR CO.
  3. Position the oil pan in the vehicle.

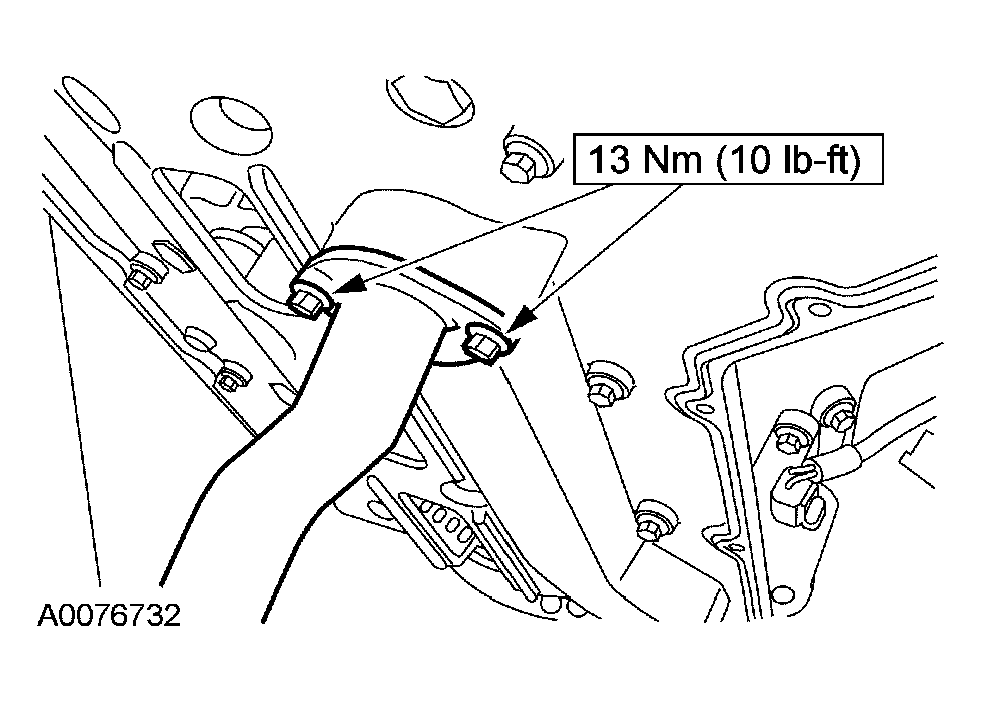

  4. Install the oil pick-up tube and bolts.
    Fig 3: Installing Oil Pick-Up Tube Bolts
    G03899479Courtesy of FORD MOTOR CO.
  5. Position the oil pan and install the bolts.
    Fig 4: Installing Oil Pan Bolts
    G03899480Courtesy of FORD MOTOR CO.

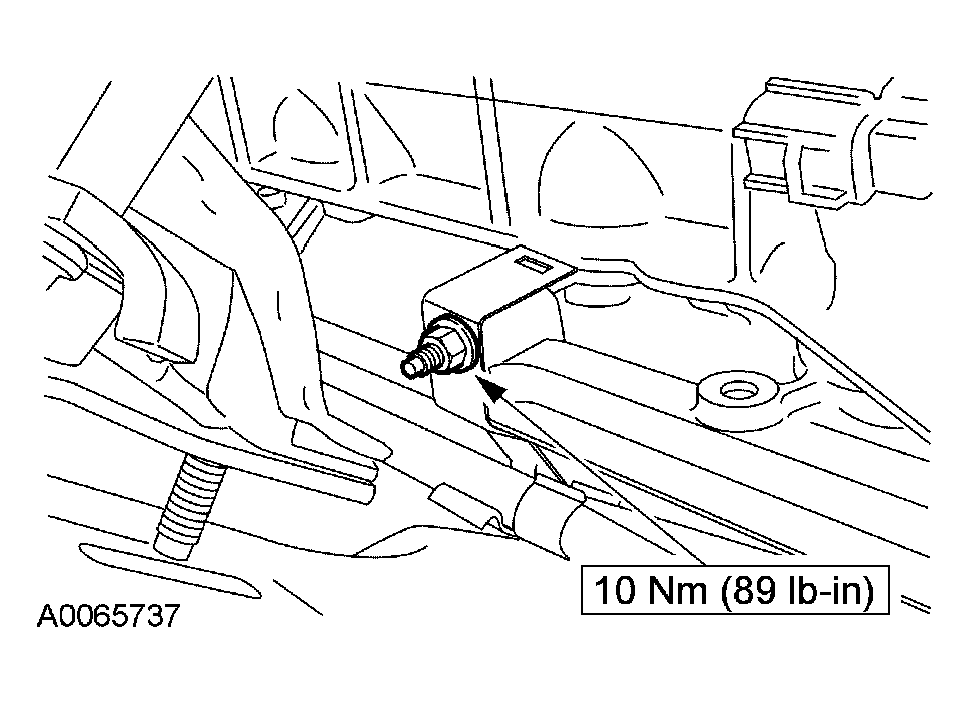

  6. Install the transmission cooler tube bracket and nut.
    Fig 5: Installing Transmission Cooler Tube Bracket Nut
    G03899482Courtesy of FORD MOTOR CO.

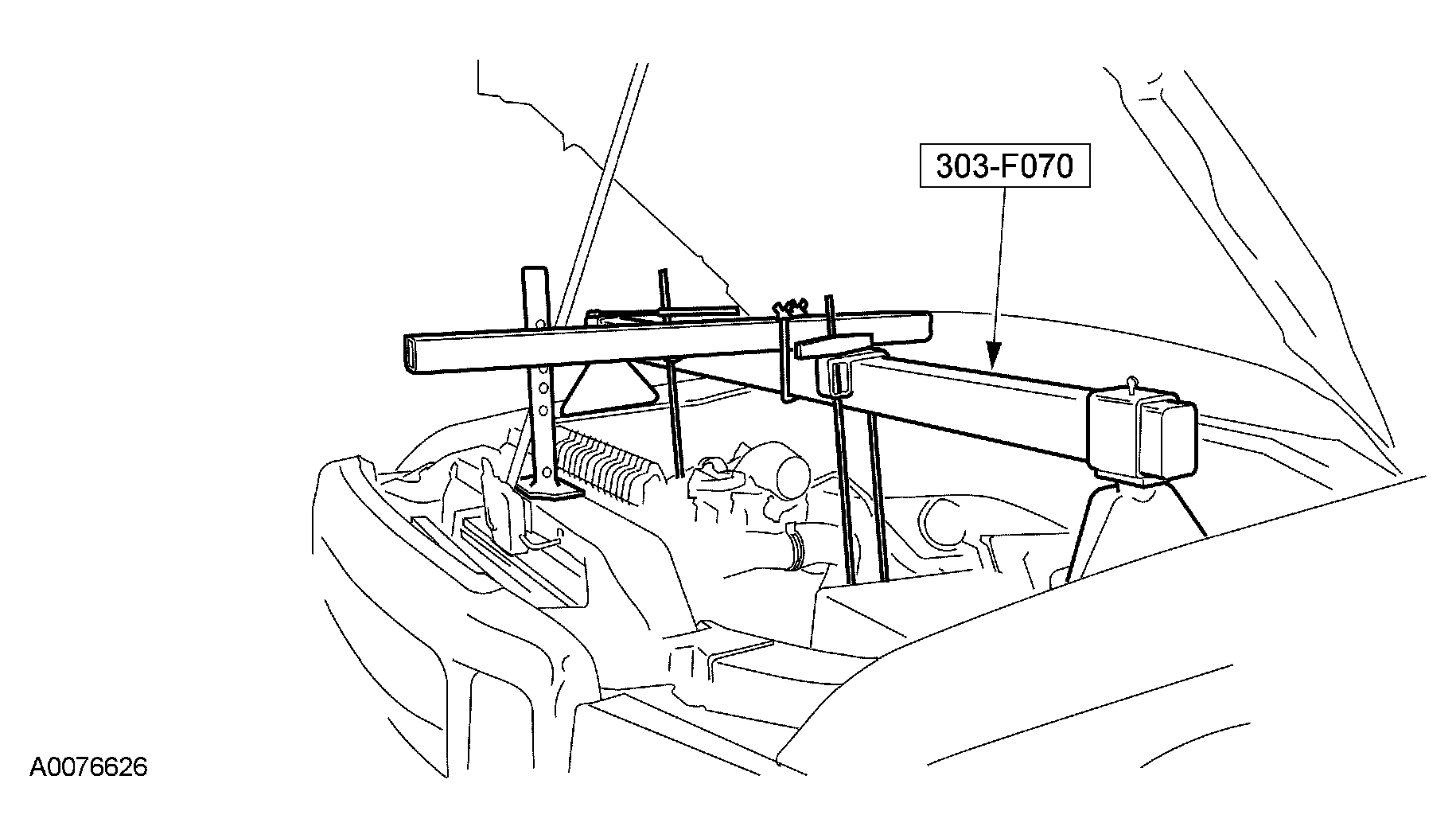

  7. Using the special tool, lower the engine.
    Fig 6: Lowering Engine
    G03899481Courtesy of FORD MOTOR CO.

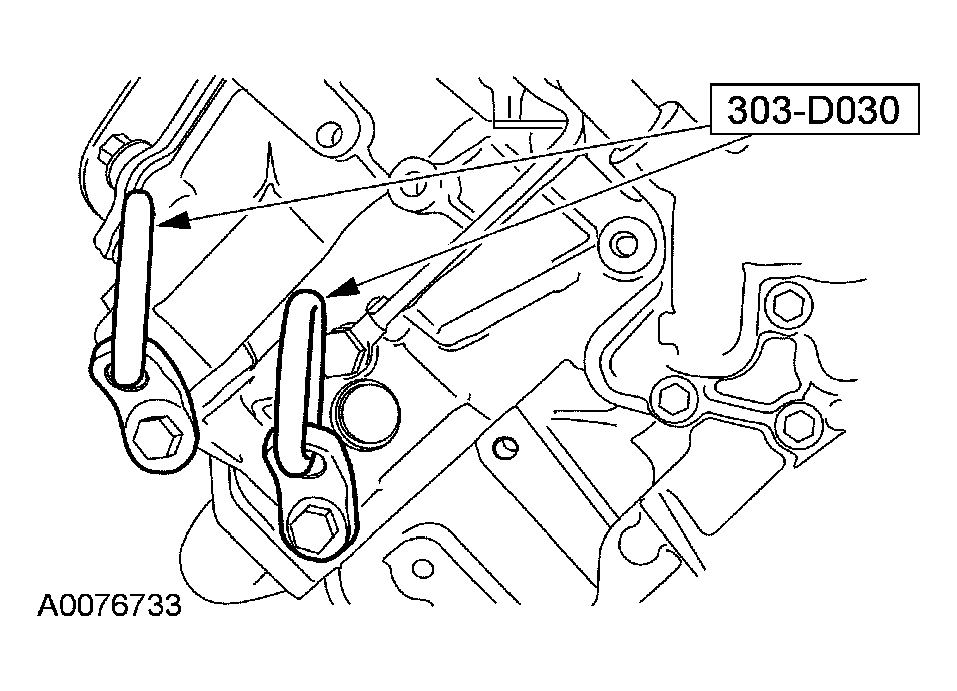

    8. NOTE: RH side shown, LH similar.
    Fig 7: Removing Lifting Eyes And Special Tool
    G03899483Courtesy of FORD MOTOR CO.
  8. Remove the lifting eyes and the special tool.

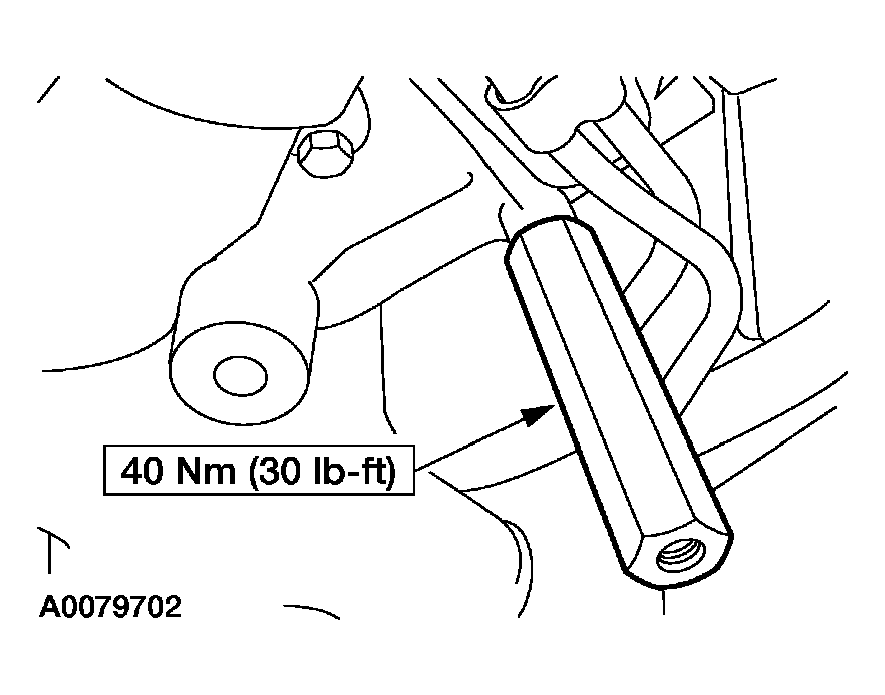

  9. Install the fan shroud mounting stud.
    Fig 8: Installing Fan Shroud Mounting Stud
    G03899484Courtesy of FORD MOTOR CO.
  10. Connect the heater hose at the coolant pump.

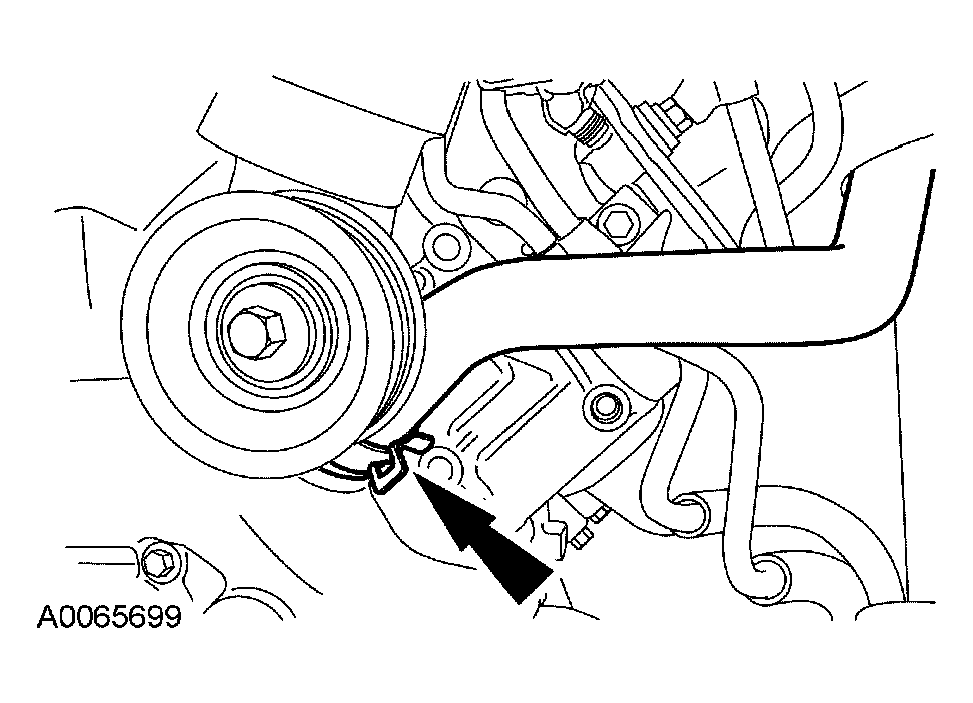

    Fig 9: Connecting Heater Hose At Coolant Pump
    G03899485Courtesy of FORD MOTOR CO.

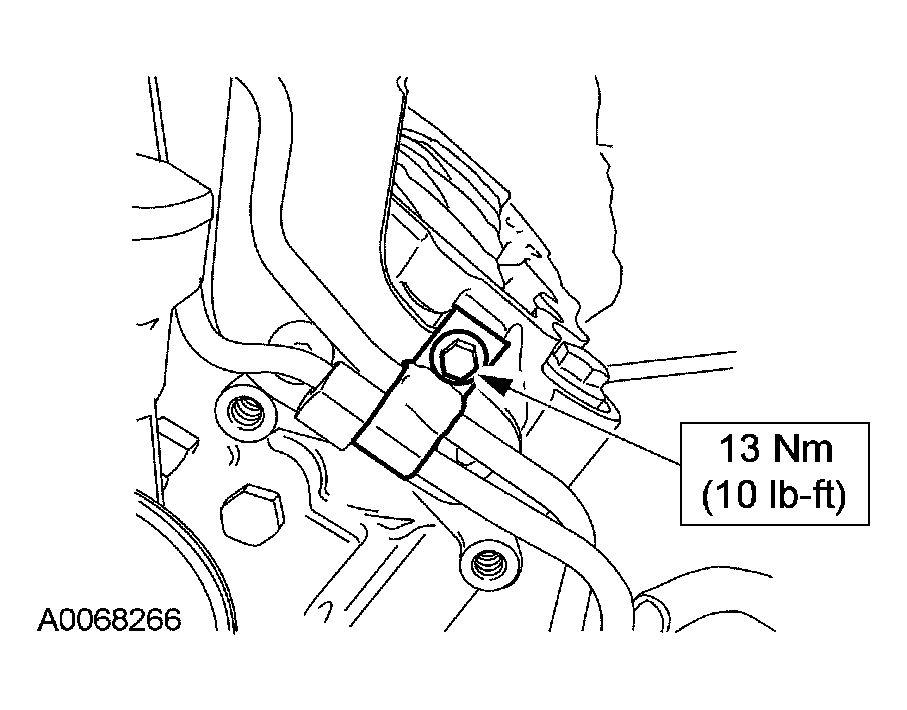

  11. Install the retaining bolt for the fuel lines.
    Fig 10: Installing Retaining Bolt Fuel Lines
    G03899486Courtesy of FORD MOTOR CO.
  12. If removed, install the ball studs. Connect the hood lifts and remove the hood support.
    Fig 11: Locating Hood Lift Assembly
    G03907095Courtesy of FORD MOTOR CO.
  13. Position the primary generator and install the bolts.

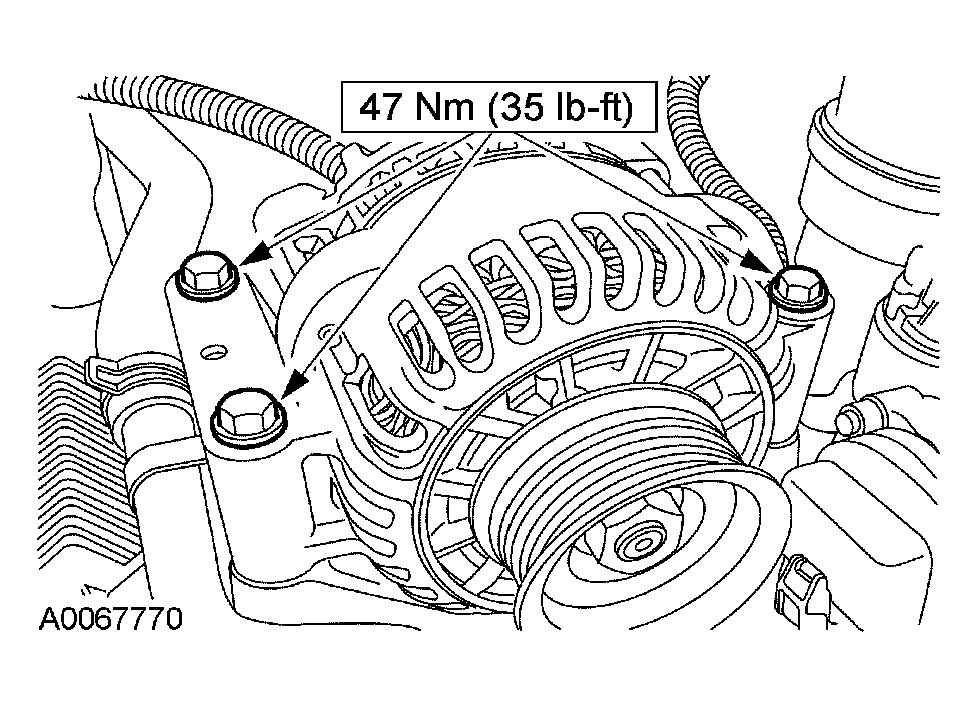

    Fig 12: Installing Generator Bolts
    G03899488Courtesy of FORD MOTOR CO.
  14. Install the secondary generator with mounting bracket and bolts.
    Fig 13: Locating Bolts And Generator Mounting Bracket - With Torque Specification
    G03887159Courtesy of FORD MOTOR CO.
  15. Connect the B+ wire, secondary generator electrical connector and wire retainer.

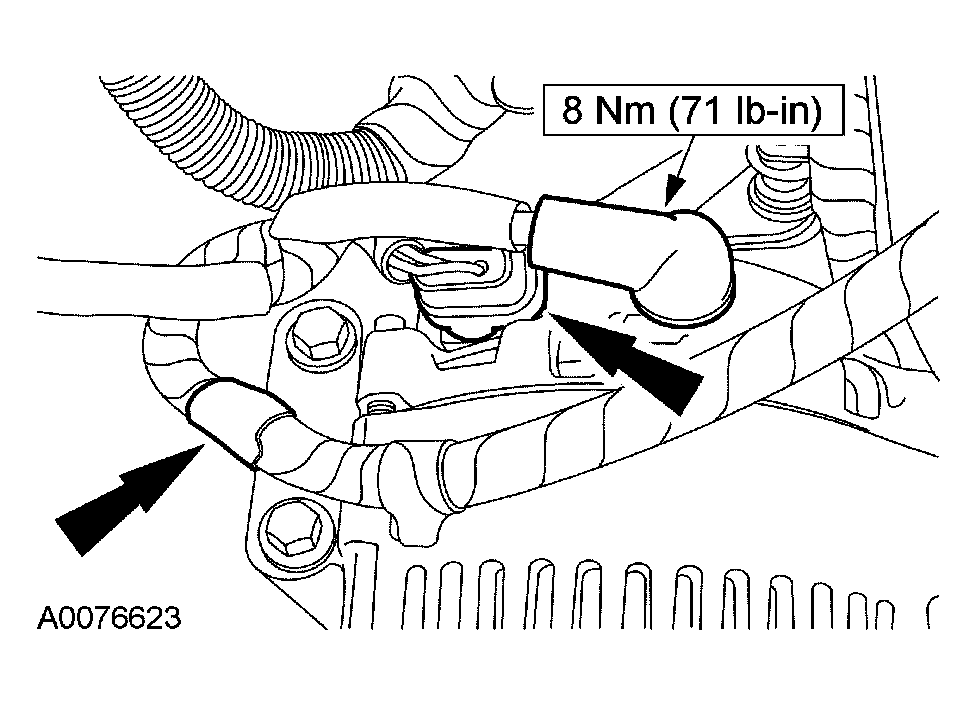

    Fig 14: Connecting B+ Wire, Secondary Generator Electrical Connector
    G03899491Courtesy of FORD MOTOR CO.
  16. Install the primary accessory drive belt tensioner and bolts.
    Fig 15: Primary Accessory Drive Belt Tensioner Bolts - With Torque Specification
    G03887161Courtesy of FORD MOTOR CO.
  17. Position the secondary accessory drive belt idler pulley. Install the bracket and bolts.
    Fig 16: Secondary Accessory Drive Belt Idler Pulley Bolts - With Torque Specification
    G03887162Courtesy of FORD MOTOR CO.
  18. Install the primary accessory drive belt.
    Fig 17: Rotating Accessory Drive Belt Tensioner
    G03887088Courtesy of FORD MOTOR CO.
  19. Install the secondary accessory drive belt tensioner and bolt.
    Fig 18: Secondary Accessory Drive Belt Tensioner Bolt - With Torque Specification
    G03907183Courtesy of FORD MOTOR CO.
  20. Install the secondary accessory drive belt.
    Fig 19: Rotating Drive Belt Tensioner Clockwise
    G03887086Courtesy of FORD MOTOR CO.
  21. Install the stator and stator bolts.

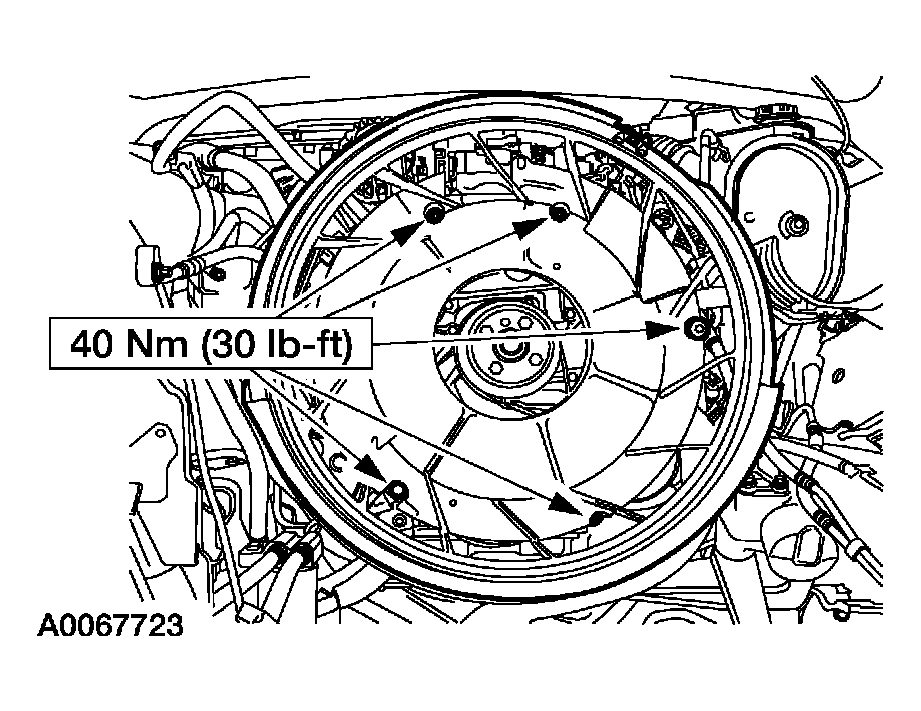

    Fig 20: Installing Stator And Stator Bolts
    G03899497Courtesy of FORD MOTOR CO.

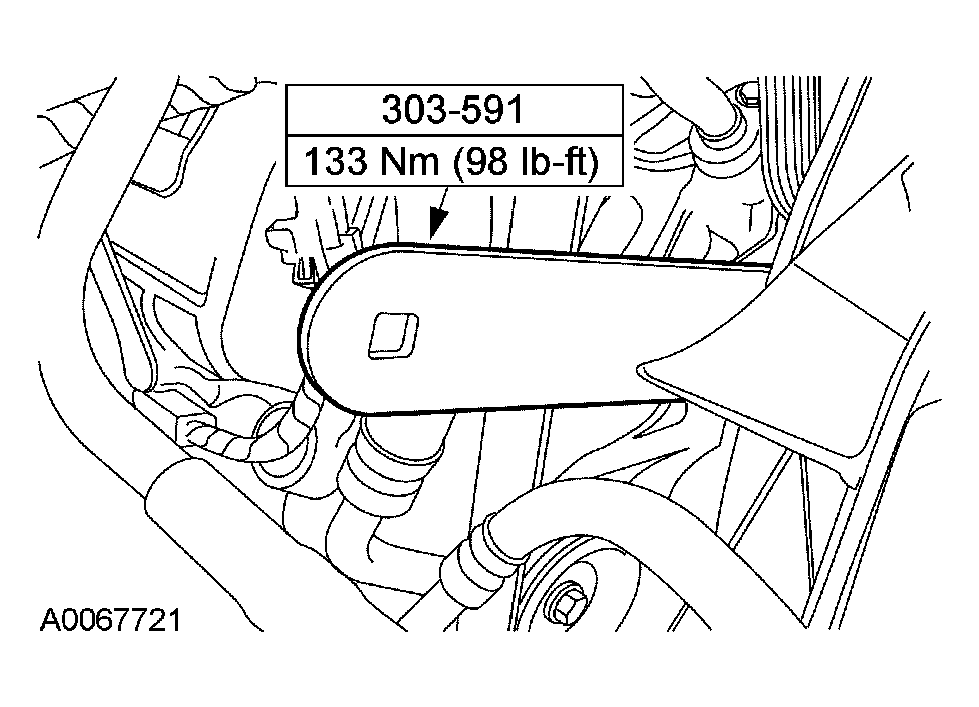

  22. Install the cooling fan clutch. Use the special tool to tighten the cooling fan clutch.
    Fig 21: Installing Cooling Fan Clutch
    G03899498Courtesy of FORD MOTOR CO.

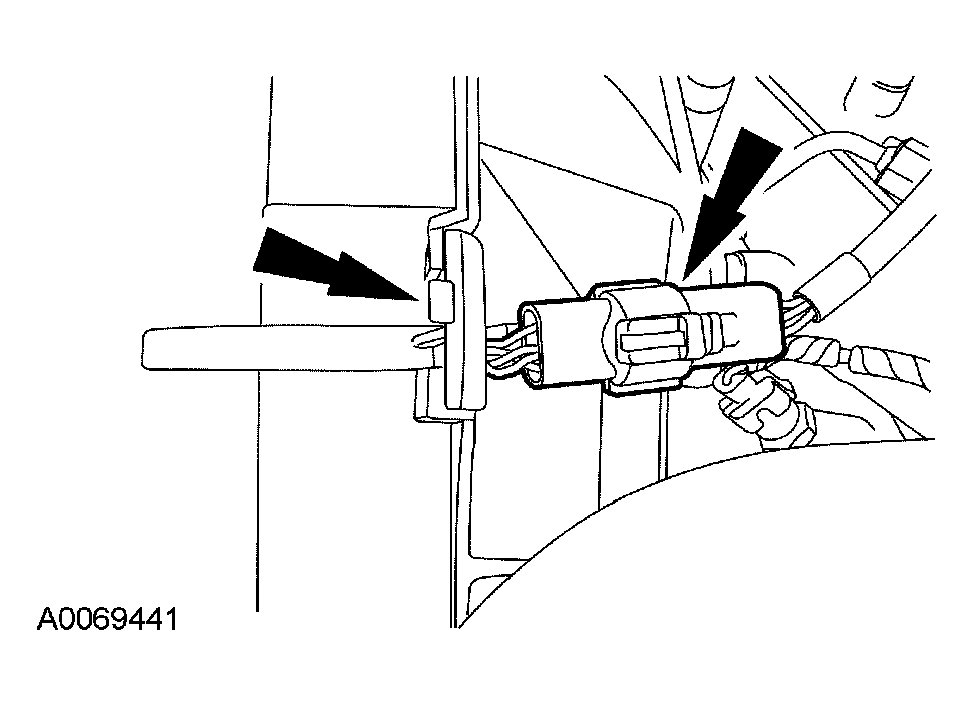

  23. Position and clip the cooling fan wiring. Connect the cooling fan electrical connector.
    Fig 22: Connecting Cooling Fan Electrical Connector
    G03899499Courtesy of FORD MOTOR CO.
  24. Install the radiator and shroud as an assembly.

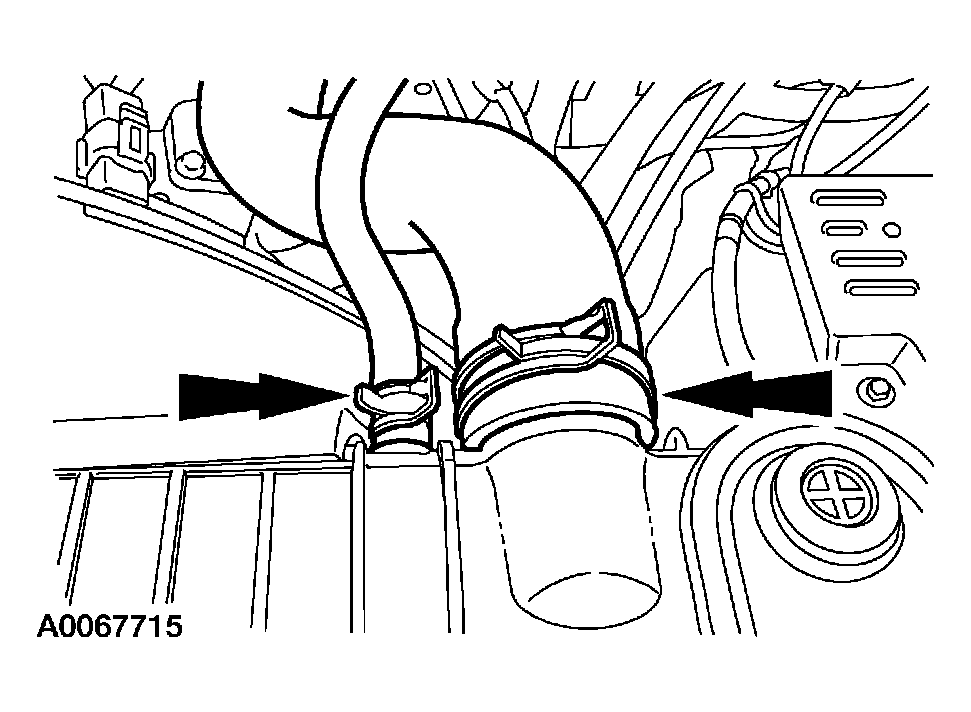

  25. Connect the upper radiator hose and the radiator overflow hose.
    Fig 23: Connecting Upper Radiator Hose And Radiator Overflow Hose
    G03899500Courtesy of FORD MOTOR CO.

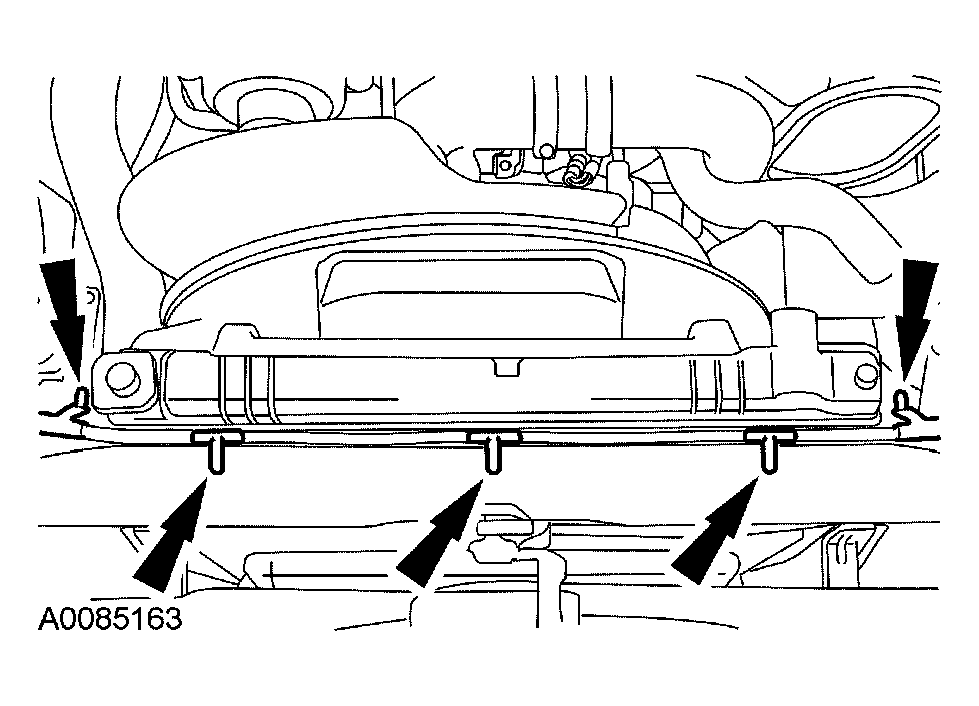

  26. Position the harness wiring, install the 2 wiring retainers and 3 pin-type retainers.
    Fig 24: Positioning Harness Wiring
    G03899501Courtesy of FORD MOTOR CO.
  27. Position the sight shield and install the 4 pin-type retainers.
    Fig 25: Identifying Pin-Type Retainers
    G03899450Courtesy of FORD MOTOR CO.

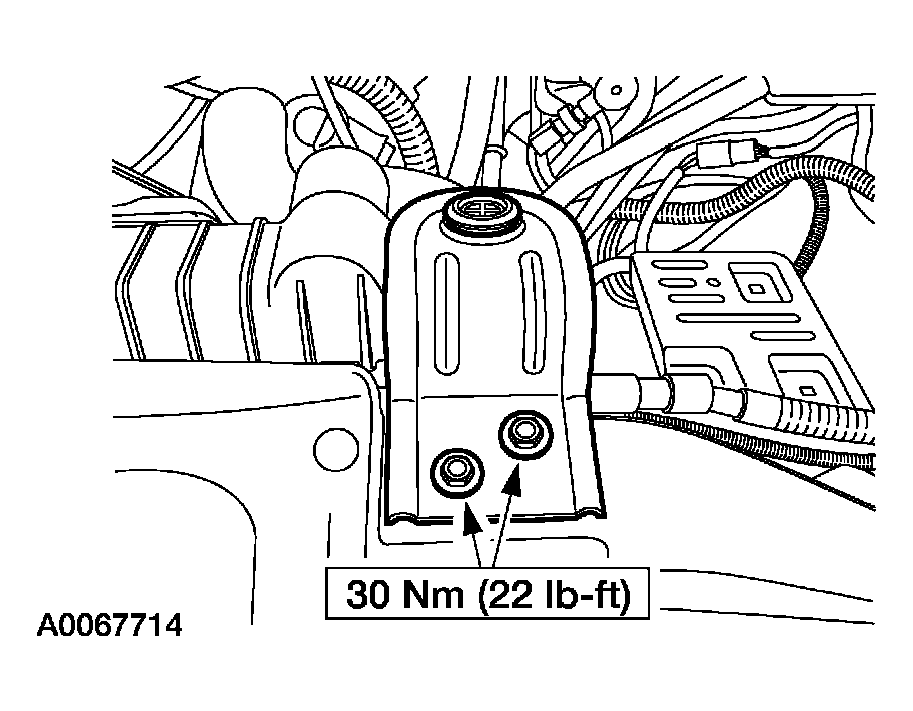

  28. Install the radiator support brackets.
    Fig 26: Installing Radiator Support Brackets
    G03899503Courtesy of FORD MOTOR CO.

    29. Vehicles with metal ducts

    NOTE: If there is any oil residue, clean both connecting ports and the inside surface of the charge air cooler duct to prevent the duct from blowing off.

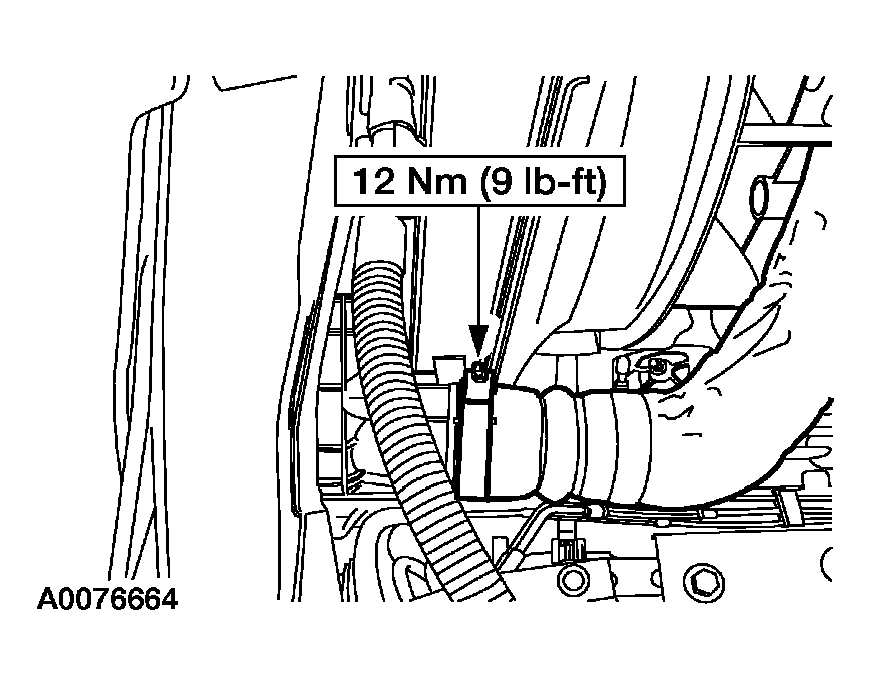

    Fig 27: Installing Charge Air Cooler Duct
    G03899504Courtesy of FORD MOTOR CO.
  29. Install the charge air cooler duct and tighten the clamps.

    30. Vehicles with blow molded ducts

    NOTE: If there is any oil residue, clean both connecting ports and the inside surface of the charge air cooler duct to prevent the duct from blowing off.

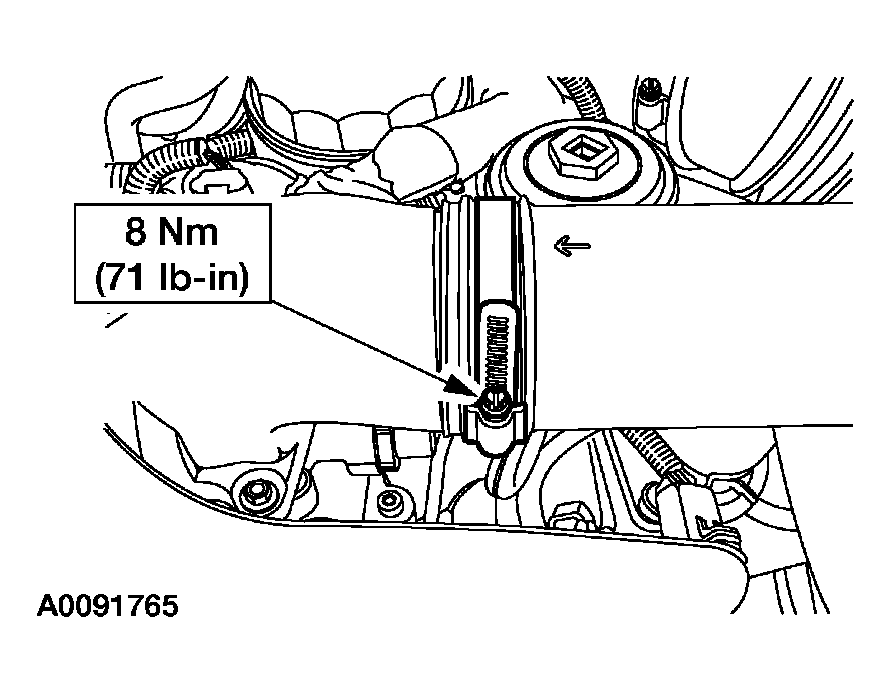

    Fig 28: Locating Charge Air Cooler Duct With Torque Specifications
    G03899505Courtesy of FORD MOTOR CO.
  30. Install the charge air cooler duct and tighten the clamps.

    31. All vehicles

  31. Install the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

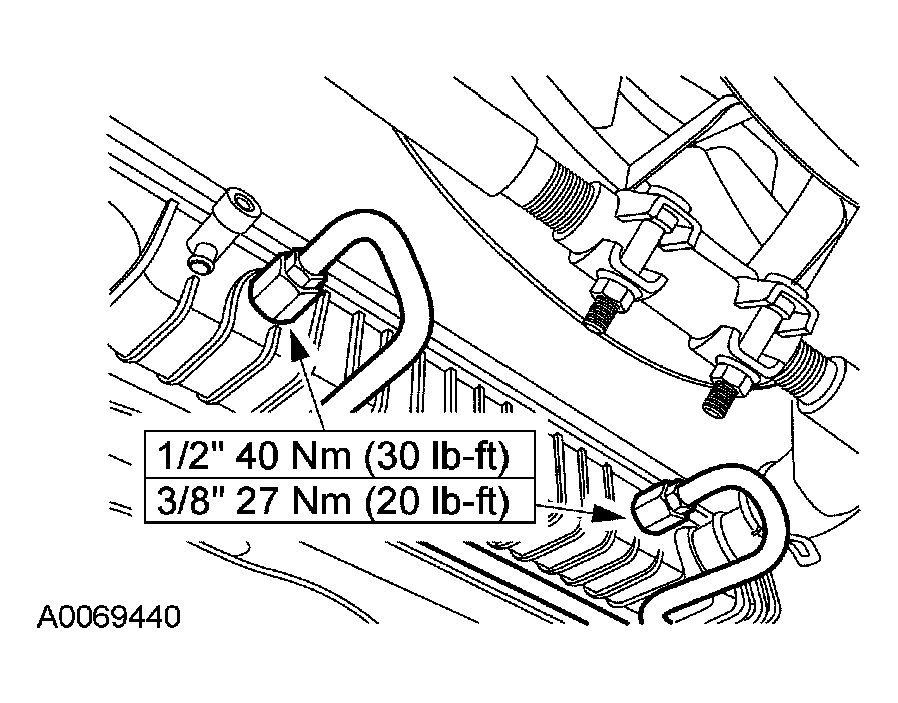

  32. Connect the transmission cooler tubes.
    Fig 29: Connecting Transmission Cooler Tubes
    G03899506Courtesy of FORD MOTOR CO.
  33. Close the radiator draincock. Connect the lower radiator hose.

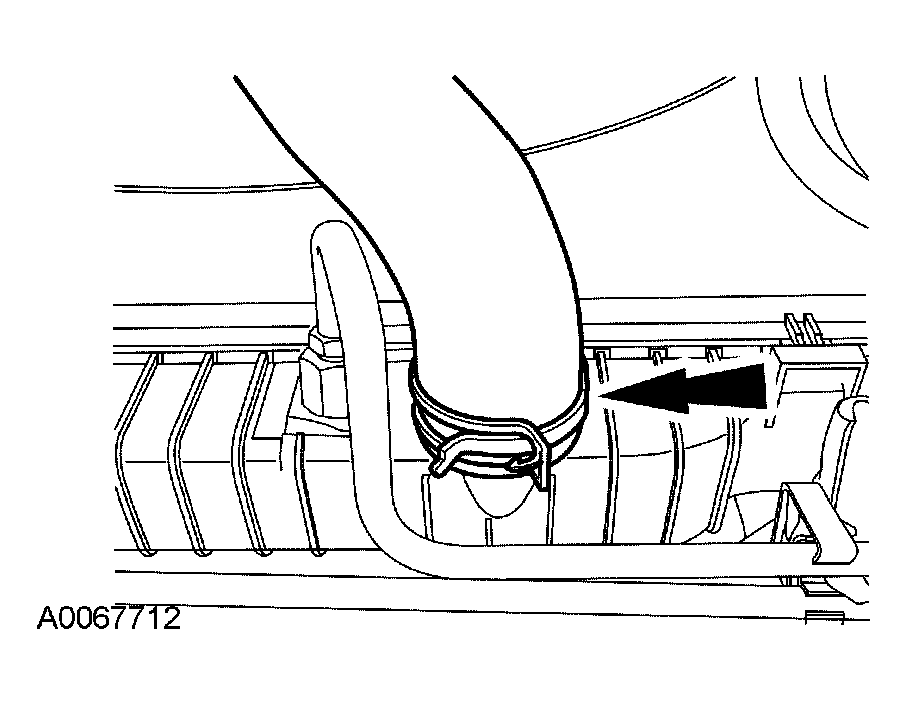

    Fig 30: Connecting Lower Radiator Hose
    G03899507Courtesy of FORD MOTOR CO.
    34. NOTE: LH side shown, RH side similar.

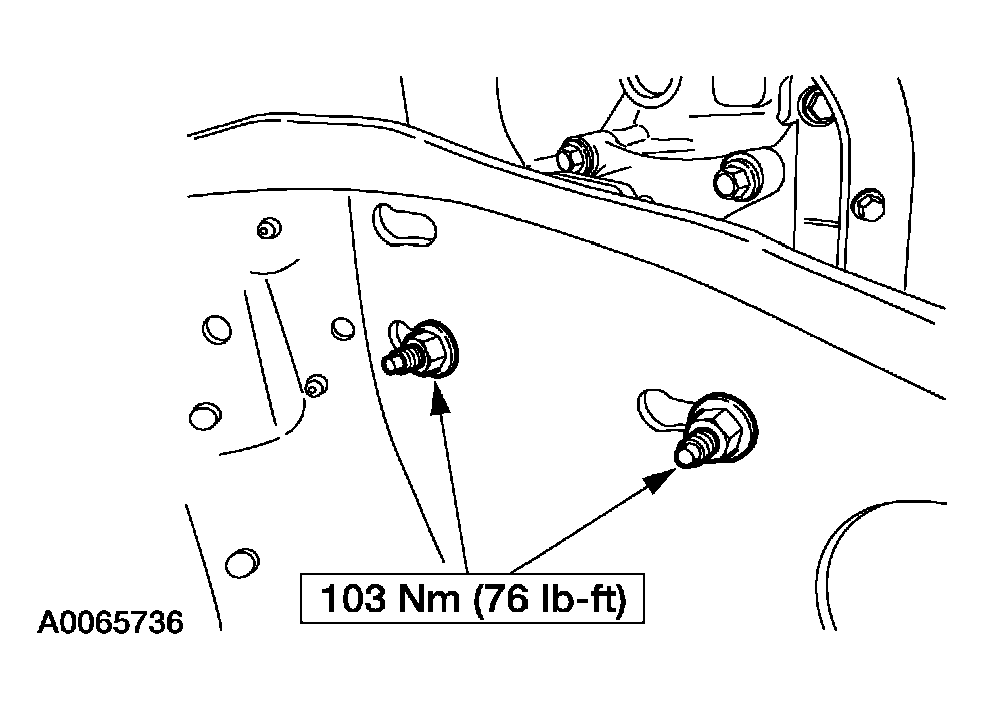

    Fig 31: Installing Motor Mount Retaining Nuts
    G03899508Courtesy of FORD MOTOR CO.
  34. Install the motor mount retaining nuts.

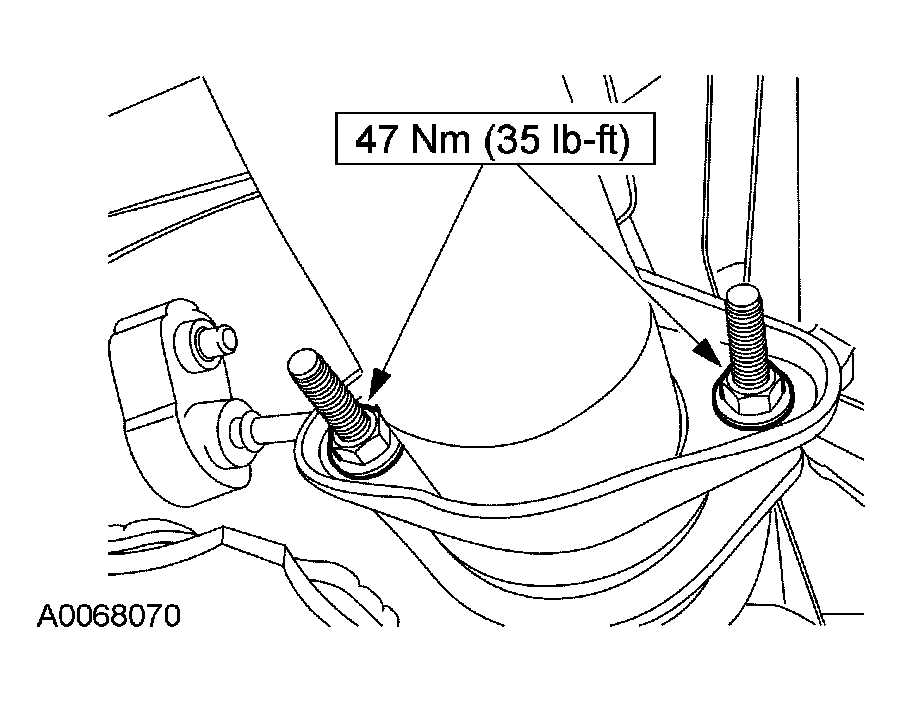

  35. Tighten the exhaust pipe retaining nuts.
    Fig 32: Tightening Exhaust Pipe Retaining Nuts
    G03899509Courtesy of FORD MOTOR CO.
  36. Clean and inspect the oil pan drain plug and gasket, install new if necessary.
    Fig 33: Cleaning And Inspecting Oil Pan Drain Plug
    G03899510Courtesy of FORD MOTOR CO.
  37. Install the oil pan drain plug.
    Fig 34: Installing Oil Pan Drain Plug
    G03899511Courtesy of FORD MOTOR CO.

    38. Vehicles with manual transmissions

  38. Install the rear engine cover. For additional information, refer to Engine Rear Cover
  39. Connect the LH and RH negative battery cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  40. Fill the engine with clean engine oil.
  41. Fill the coolant system. For additional information, refer to ENGINE COOLING .
  42. Run the engine and check for leaks.
