Exhaust Manifold - LH: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Start installing the bolts with the second bolt from the rear on the top. The hole diameter is smaller, therefore allowing alignment of the remaining bolts.

NOTE: When installing the exhaust manifolds, use only prevailing torque hex flange bolts with an interference fit.

NOTE: Apply anti-seize lubricant to the bolt threads prior to installing the bolts.

Fig 1: LH Exhaust Manifold Bolt Tightening Sequence With Torque Specification

Courtesy of FORD MOTOR CO.

Install the LH exhaust manifold and bolts. Tighten the bolts in the sequence shown.
Connect the exhaust pressure tube at the exhaust manifold.

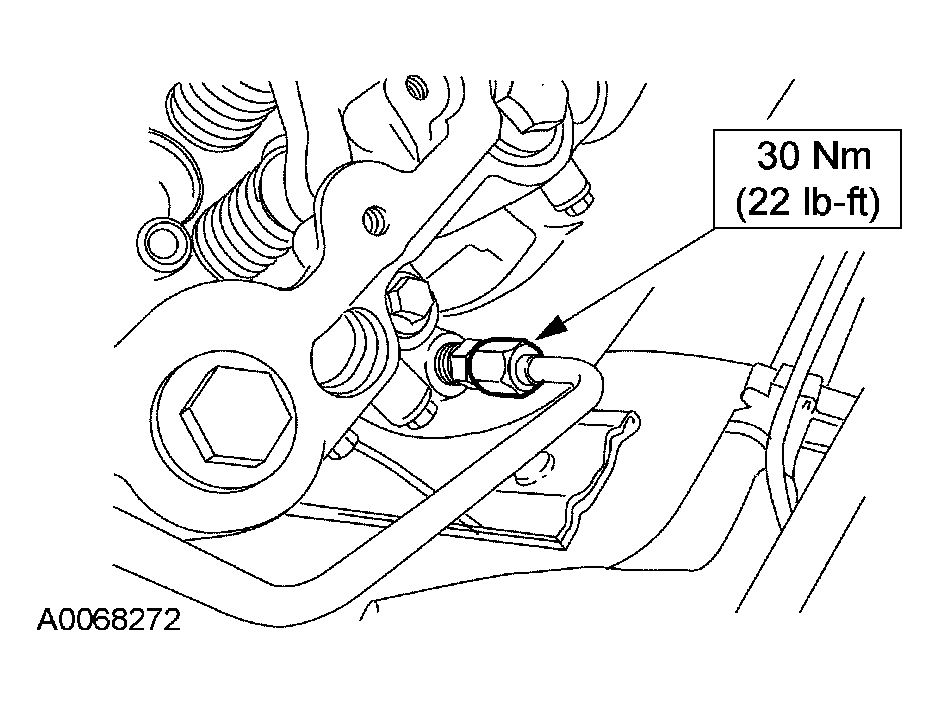

Fig 2: Connecting Exhaust Pressure Tube
Courtesy of FORD MOTOR CO.

NOTE: Apply anti-seize lubricant to the bolt threads prior to installing the bolts.

NOTE: Alternately tighten the bolts to specification.

Fig 3: Installing Turbocharger Adapter Pipe Bolts

Courtesy of FORD MOTOR CO.

Install the LH bolts for the turbocharger adapter pipe.
