Engine Mount - RH, 4WD

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

SPECIAL TOOLS

G03899571
 Heavy Duty Floor Crane 014-00072
G03899572
 Lifting Bracket, Engine 303-050
G03899573
 3-Bar Engine Support 303-F070

    All vehicles

  1. Remove the radiator. For additional information, refer to ENGINE COOLING .
  2. Remove the cooling fan stator. For additional information, refer to ENGINE COOLING .
  3. Disconnect the LH and RH battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Loosen the clamp at the charge air cooler (CAC).

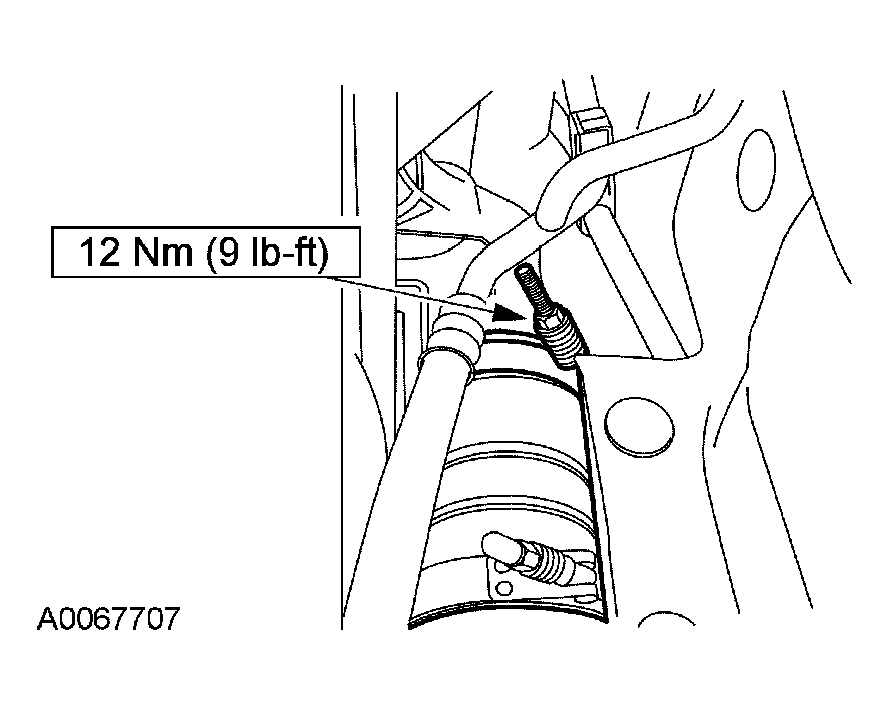

    Fig 1: Loosening Clamp
    G03899574Courtesy of FORD MOTOR CO.
    5. NOTE: If there is any oil residue, clean both connecting ports and the inside surface of the charge air cooler pipe to prevent the pipe from blowing off.

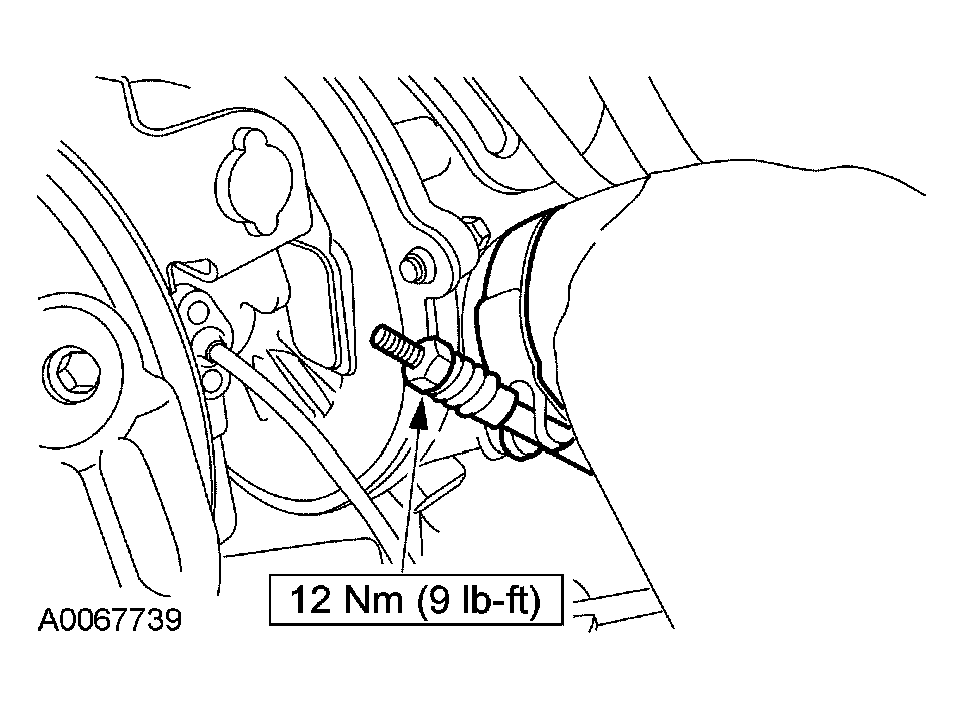

    Fig 2: Loosening Clamp Turbocharger
    G03899575Courtesy of FORD MOTOR CO.
  5. Loosen the clamp at the turbocharger and remove the charge air cooler pipe.
    6. NOTE: RH is shown; LH is similar.
    Fig 3: Removing RH And LH Motor Mount Nuts
    G03899576Courtesy of FORD MOTOR CO.

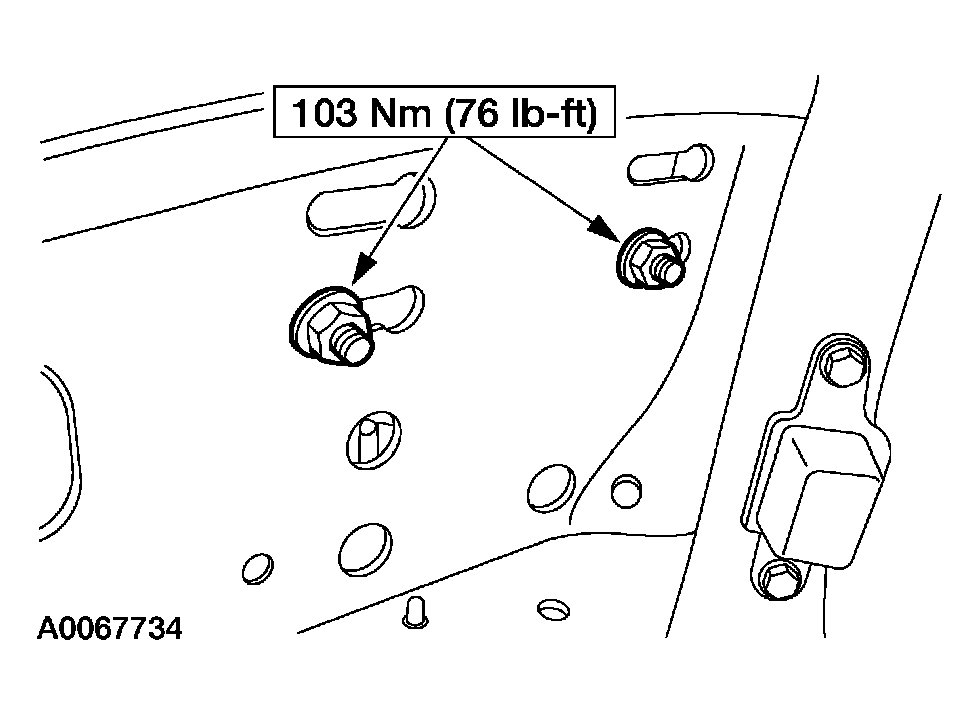

  6. Remove the RH and the LH motor mount nuts.
  7. Remove the bracket-to-engine bolt.
    Fig 4: Removing Bracket-To-Engine Bolt
    G03899577Courtesy of FORD MOTOR CO.

    8. Vehicles with dual generator

  8. Remove the accessory drive belt.
    Fig 5: Rotating Drive Belt Tensioner Clockwise
    G03887086Courtesy of FORD MOTOR CO.
  9. Remove the bolt and the accessory drive belt tensioner.
    Fig 6: Secondary Accessory Drive Belt Tensioner Bolt - With Torque Specification
    G03907183Courtesy of FORD MOTOR CO.
  10. Remove the accessory drive belt.
    Fig 7: Rotating Accessory Drive Belt Tensioner
    G03887088Courtesy of FORD MOTOR CO.
  11. Remove the bolts, bracket and the accessory drive belt idler pulley.
    Fig 8: Secondary Accessory Drive Belt Idler Pulley Bolts - With Torque Specification
    G03887162Courtesy of FORD MOTOR CO.
  12. Remove the bolts and the accessory drive belt tensioner.
    Fig 9: Primary Accessory Drive Belt Tensioner Bolts - With Torque Specification
    G03887161Courtesy of FORD MOTOR CO.
  13. Disconnect the wire retainer, generator electrical connector and B+ wire.

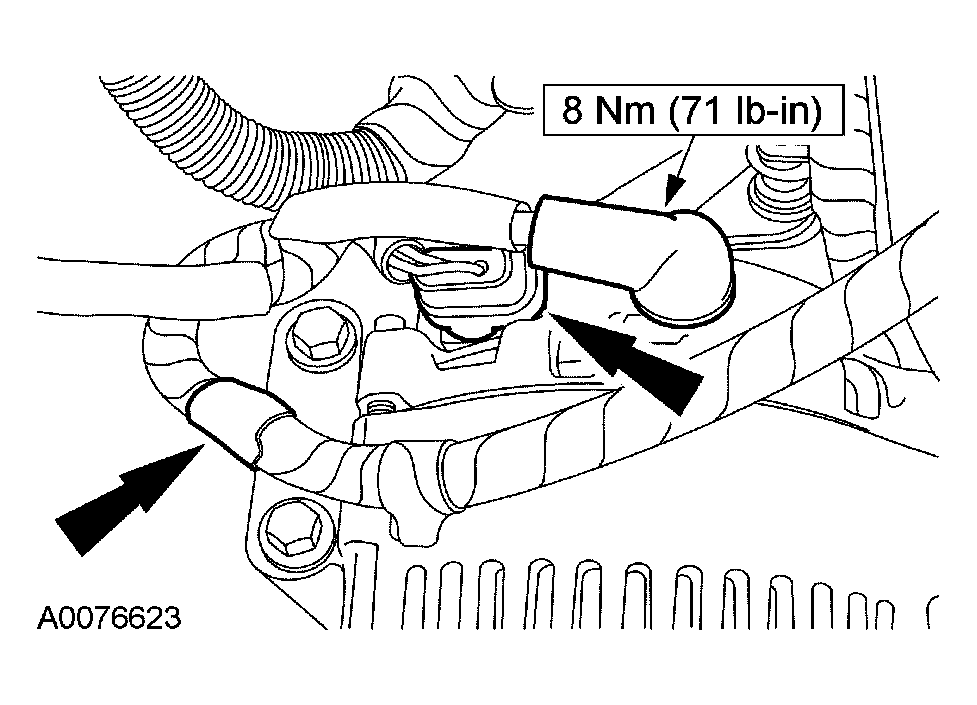

    Fig 10: Disconnecting Wire Retainer
    G03899583Courtesy of FORD MOTOR CO.
  14. Remove the bolts and generator with mounting bracket.
    Fig 11: Locating Bolts And Generator Mounting Bracket - With Torque Specification
    G03887159Courtesy of FORD MOTOR CO.

    15. Vehicles with single generator

  15. Remove the primary accessory drive belt.
    Fig 12: Rotating Accessory Drive Belt Tensioner
    G03906750Courtesy of FORD MOTOR CO.

    16. All vehicles

  16. Remove the bolts and position the generator back.
    Fig 13: Locating Generator Bolts
    G03907094Courtesy of FORD MOTOR CO.
  17. Support the hood and disconnect the hood lift assemblies.
    Fig 14: Locating Hood Lift Assembly
    G03907095Courtesy of FORD MOTOR CO.

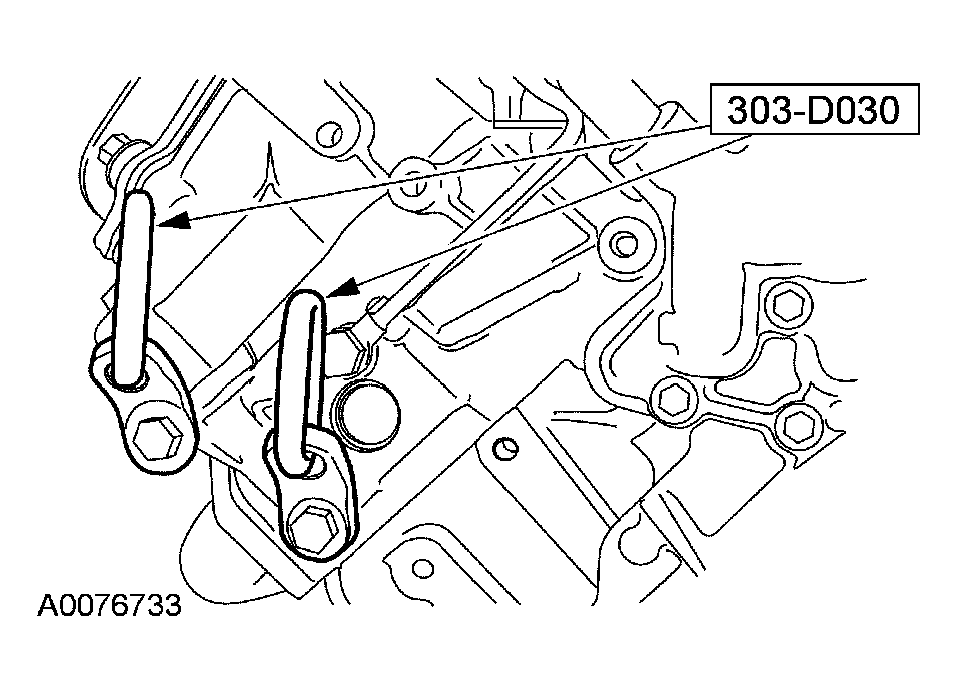

  18. Install two lifting eyes on the RH cylinder head.
    Fig 15: Installing Two Lifting Eyes
    G03899588Courtesy of FORD MOTOR CO.
  19. Remove the retaining bolts for the fuel lines.

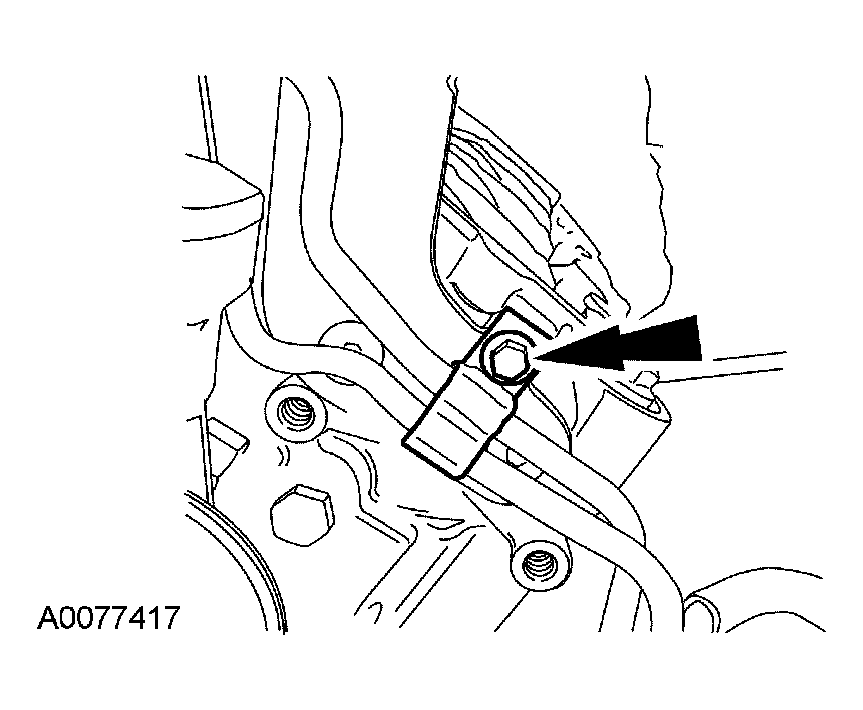

    Fig 16: Removing Retaining Bolts
    G03899589Courtesy of FORD MOTOR CO.

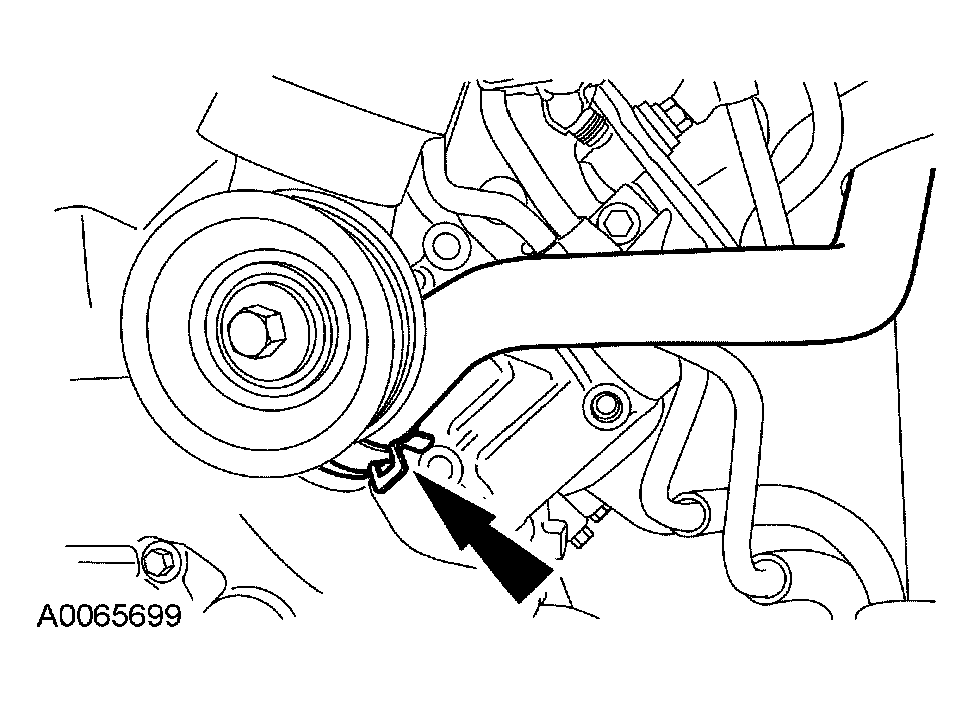

  20. Disconnect the heater hose at the coolant pump.
    Fig 17: Disconnecting Heater Hose
    G03899590Courtesy of FORD MOTOR CO.
  21. Remove the fan shroud mounting stud.
    Fig 18: Removing Fan Shroud Mounting Stud
    G03899591Courtesy of FORD MOTOR CO.
  22. Install one lifting eye on the LH cylinder head.

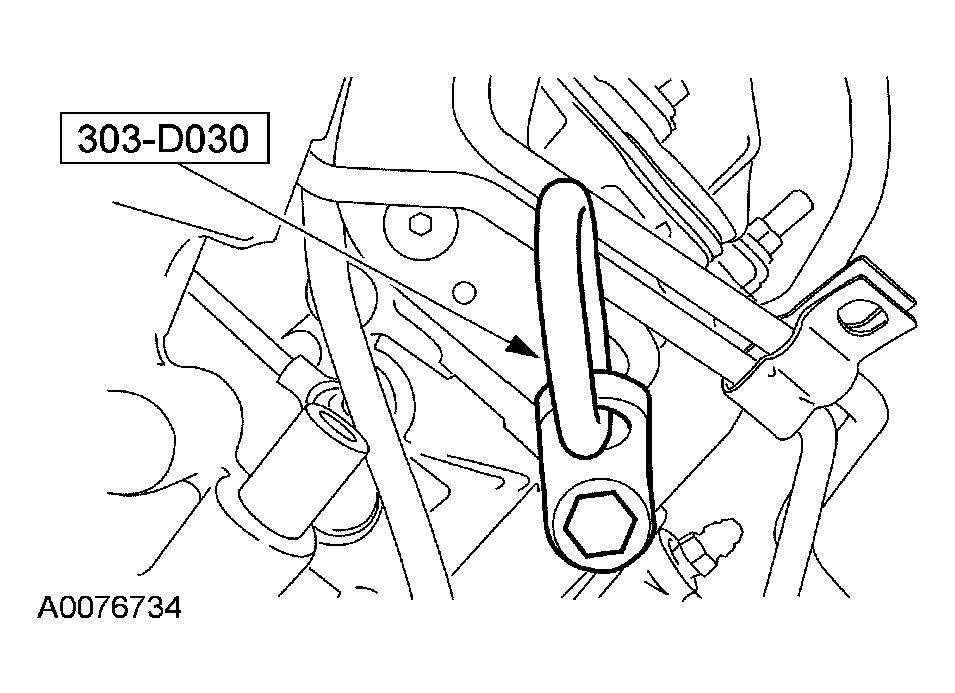

    Fig 19: Installing One Lifting Eye
    G03899592Courtesy of FORD MOTOR CO.
    23. CAUTION: Do not use the special tool to raise the engine. Damage to the special tool or vehicle may occur.
    NOTE: The ball studs may have to be removed.
    NOTE: This procedure requires a second bolt hook assembly. The tools are available through Rotunda Tools with the following numbers: bolt hook 303-F070-6, handle 303-F070-8, bracket 303-F070-7 and washer 303-F070-12004.

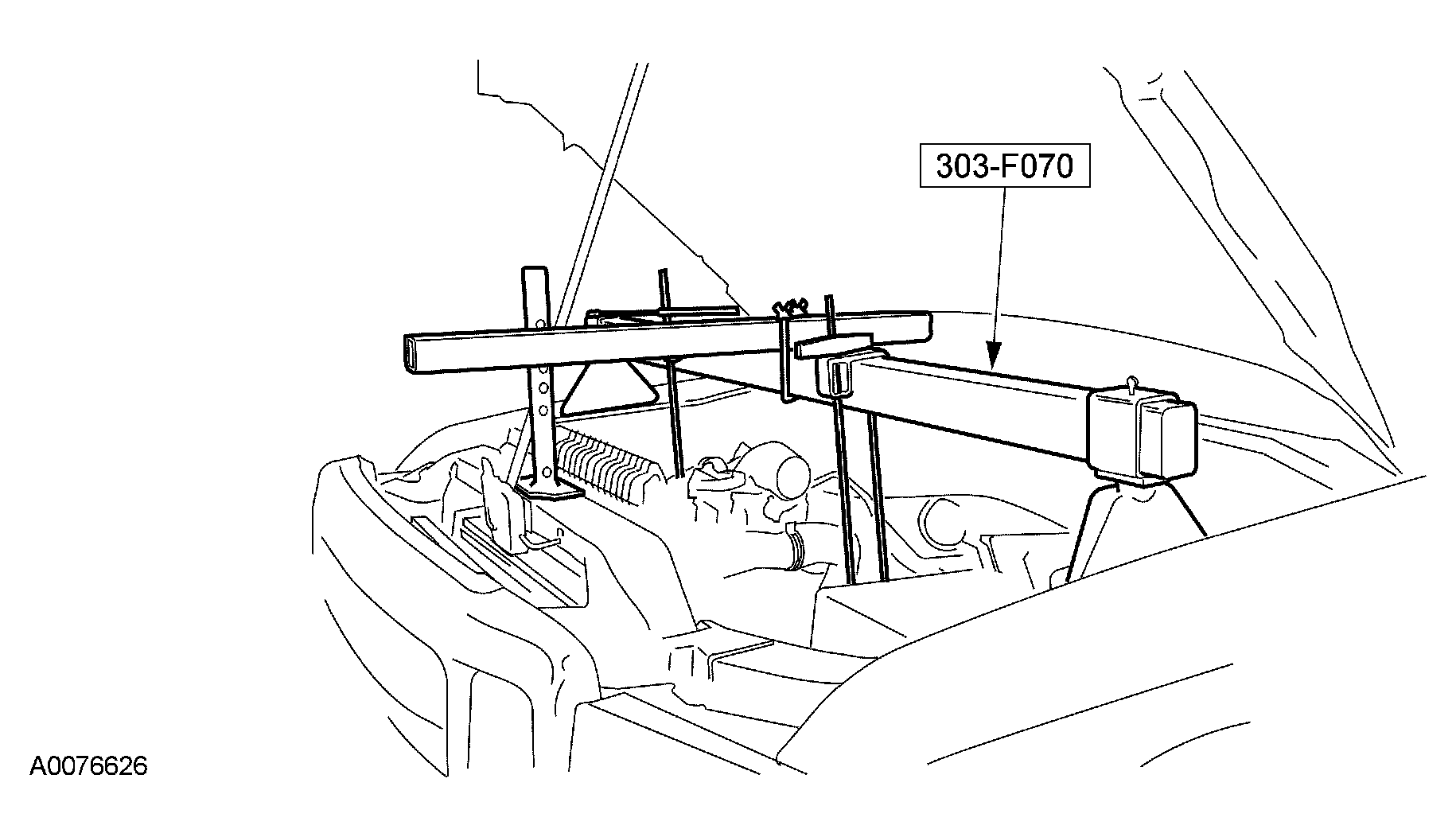

    Fig 20: Installing Special Tool
    G03899593Courtesy of FORD MOTOR CO.
  23. Install the special tool.
    24. NOTE: The engine must be raised evenly.
  24. Using a lifting crane, raise the engine until the turbocharger is about to touch the cowl. Secure the engine with the special tool.
  25. Remove the RH fender splash shield. For additional information, refer to FRONT END BODY PANELS .
    26. NOTE: Rear is shown; front is similar.

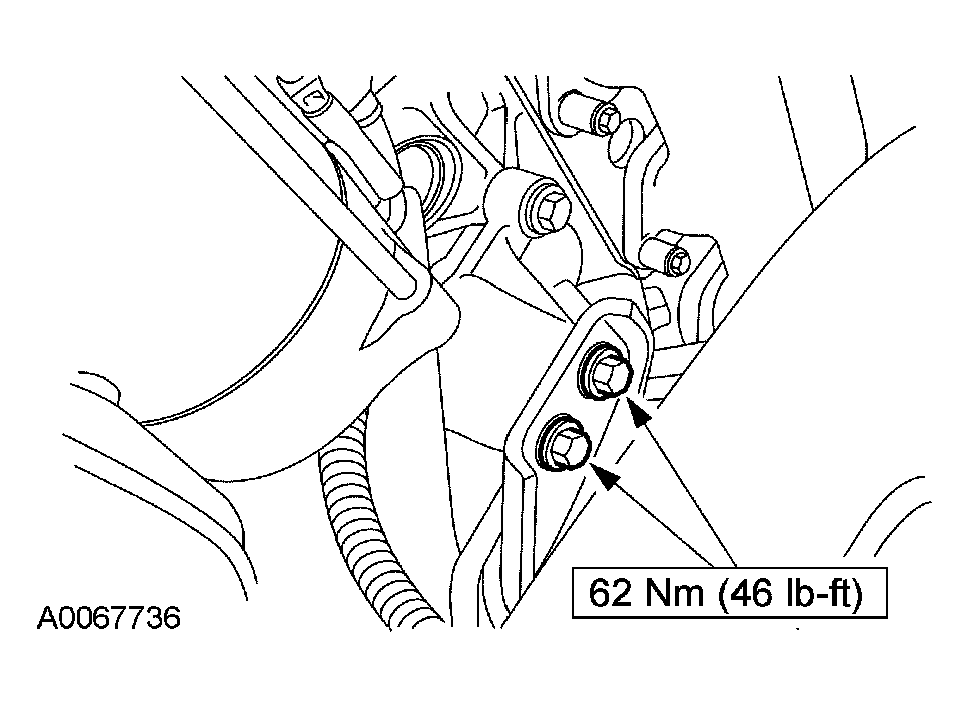

    Fig 21: Removing Four Motor Mount Bolts
    G03899594Courtesy of FORD MOTOR CO.
  26. Remove the four motor mount bolts.
    27. NOTE: Bracket shown removed for clarity.
    Fig 22: Removing Bracket-To-Engine Bolts
    G03899595Courtesy of FORD MOTOR CO.
  27. Remove the bracket-to-engine bolts. Remove the bracket and the motor mount.
  28. To install, reverse the removal procedure.
