Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft vibration damper. For additional information, refer to CRANKSHAFT PULLEY .
  2. Punch two holes in the seal.
    Fig 1: Identifying Crankshaft Seal
    G03887244Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the crankshaft seal.

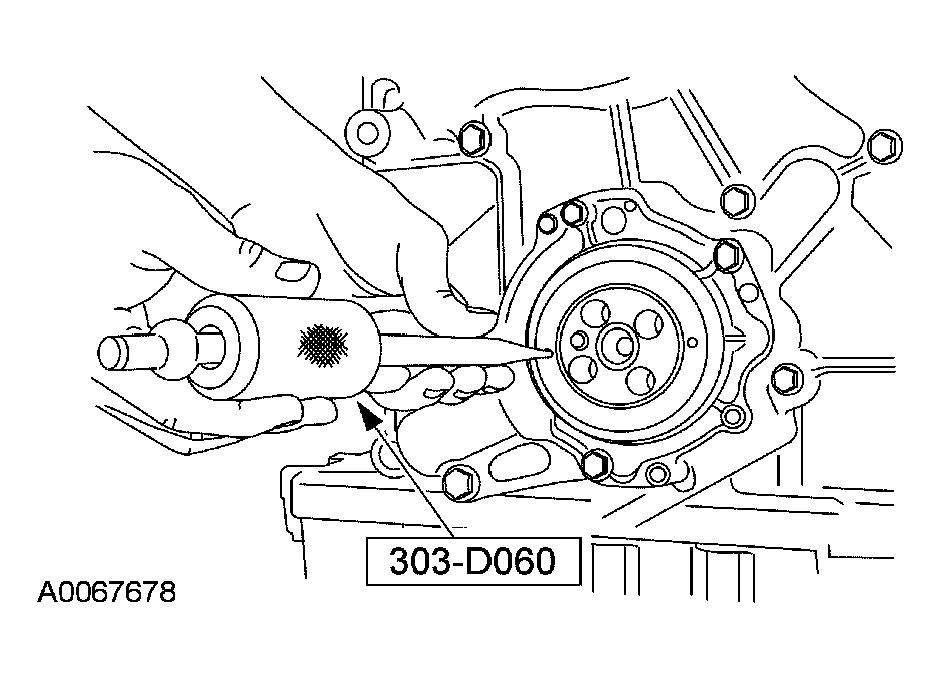

    Fig 2: Removing Crankshaft Seal
    G03899436Courtesy of FORD MOTOR CO.
    4. NOTE: Production engine will not have a wear sleeve.
    Fig 3: Removing Crankshaft Damper Wear Sleeve
    G03899437Courtesy of FORD MOTOR CO.
  4. If equipped, remove the crankshaft damper wear sleeve.
