Transmission Support CROSSMEMBER: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the crossmember to the transmission mount and loosely install the nut.
    Fig 1: Positioning Crossmember To Transmission Mount
    G03381090Courtesy of FORD MOTOR CO.
  2. Install the LH crossmember bracket.

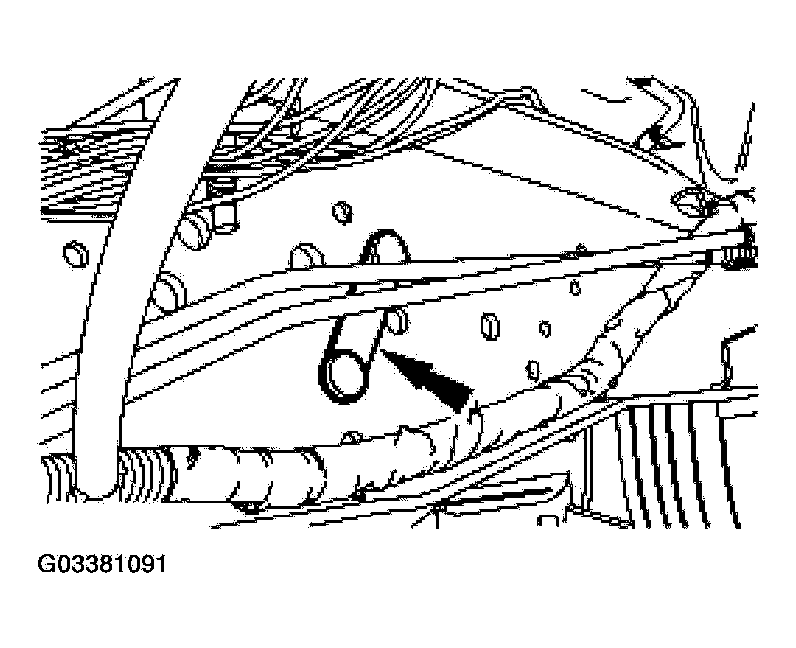

    Fig 2: Installing LH Crossmember Bracket
    G03381091Courtesy of FORD MOTOR CO.
  3. Install the LH crossmember bracket nuts
    Fig 3: Installing LH Crossmember Bracket Nuts
    G03381092Courtesy of FORD MOTOR CO.
  4. Install the RH crossmember bracket.

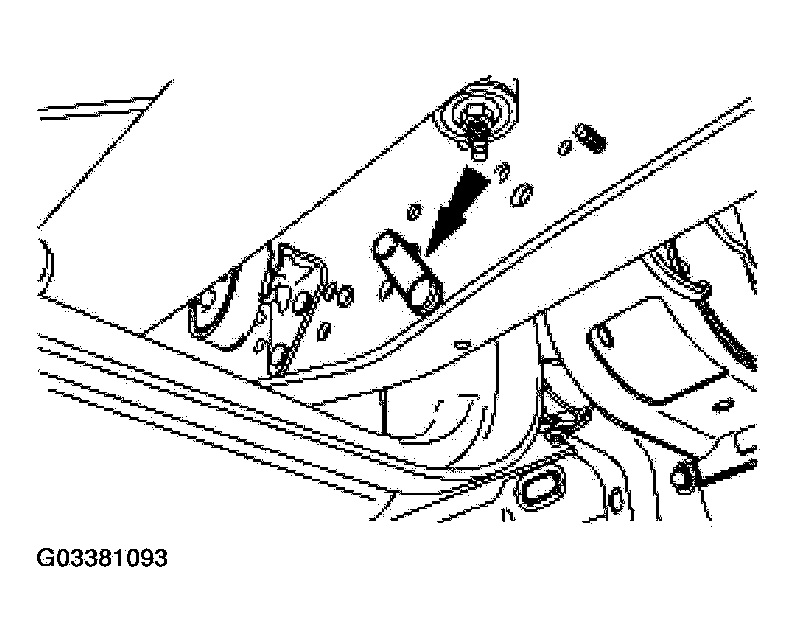

    Fig 4: Installing RH Crossmember Bracket
    G03381093Courtesy of FORD MOTOR CO.
  5. Install the RH crossmember bracket nuts

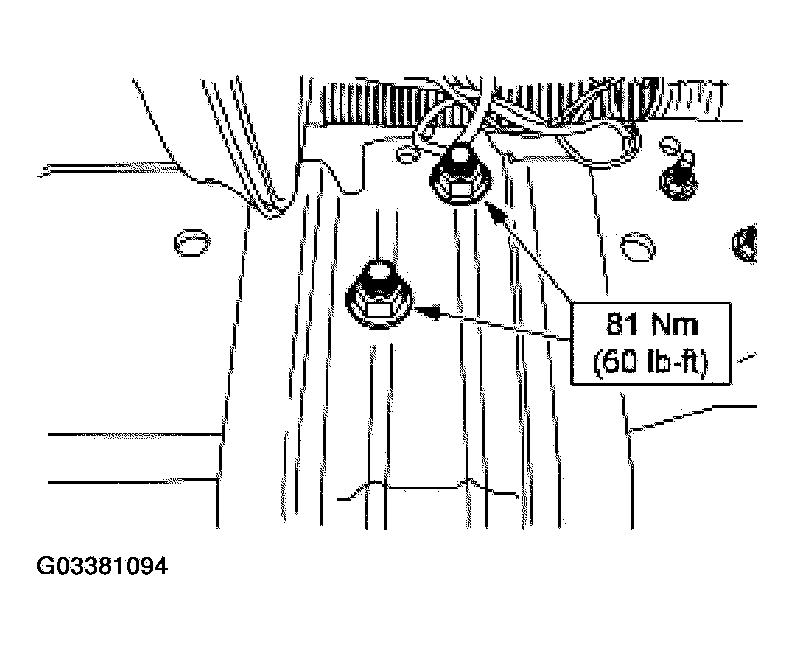

    Fig 5: Installing RH Crossmember Bracket Nuts
    G03381094Courtesy of FORD MOTOR CO.
  6. Tighten the rear insulator nuts.
    Fig 6: Tightening Rear Insulator Nuts
    G03381095Courtesy of FORD MOTOR CO.
  7. Install the wire harness and install the two retaining clips to the rear of the crossmember.

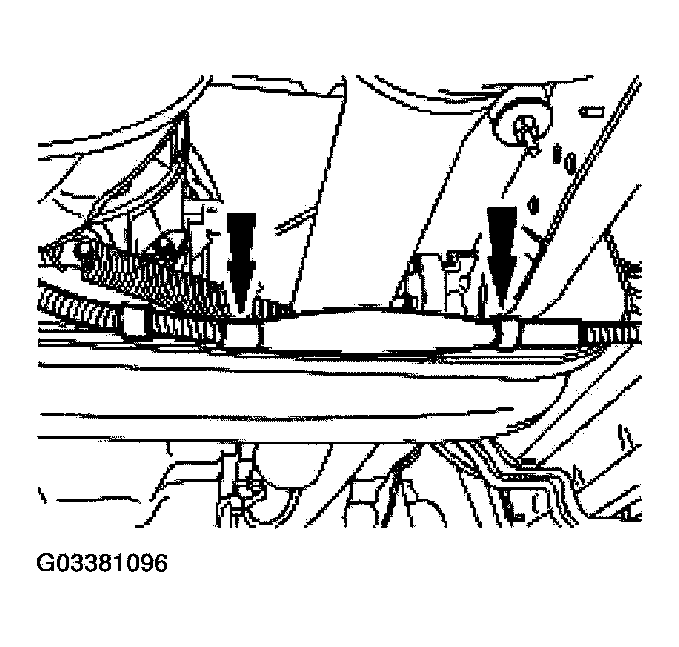

    Fig 7: Installing Retaining Clips To Rear Of Crossmember
    G03381096Courtesy of FORD MOTOR CO.
