Transmission Insulator & Retainer: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear transmission support insulator.
    1. Remove the rear transmission support insulator nuts.
    2. Remove the rear transmission support insulator bolts.

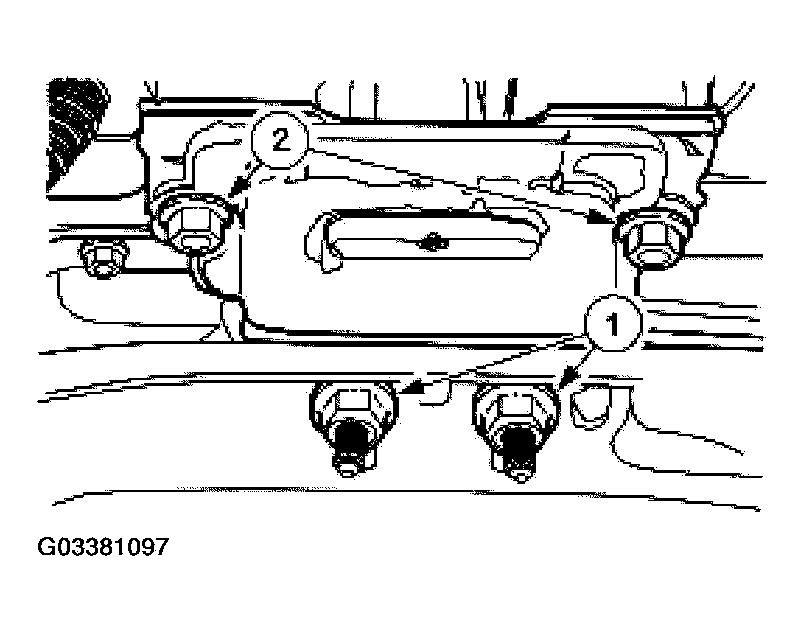

      Fig 1: Removing Rear Transmission Support Insulator Bolts
      G03381097Courtesy of FORD MOTOR CO.
  3. Using a suitable high-lift transmission jack, remove the rear transmission support insulator.
    1. Raise the transmission upward, off the transmission support insulator.
    2. Remove the rear transmission support insulator.

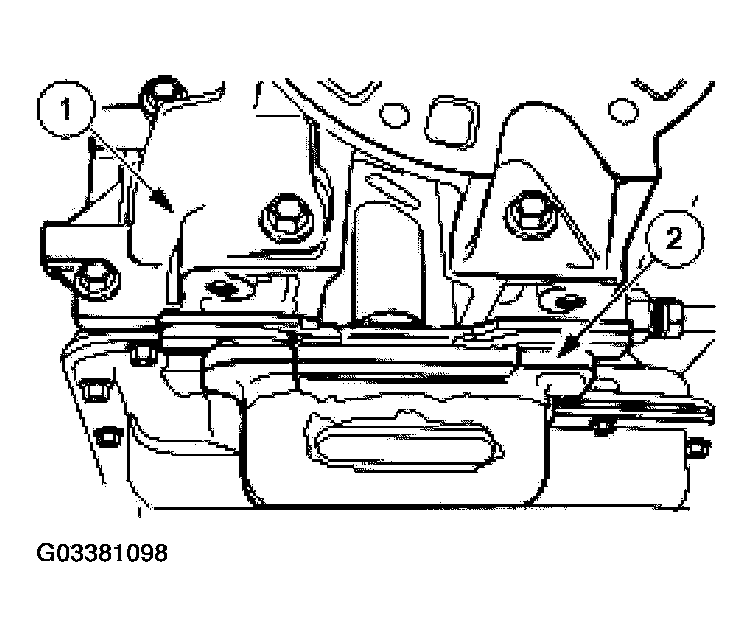

      Fig 2: Removing Rear Transmission Support Insulator
      G03381098Courtesy of FORD MOTOR CO.
