Transmission Insulator & Retainer: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear transmission support insulator.
    1. Install the rear transmission support insulator.
    2. Lower the transmission onto the transmission support insulator.

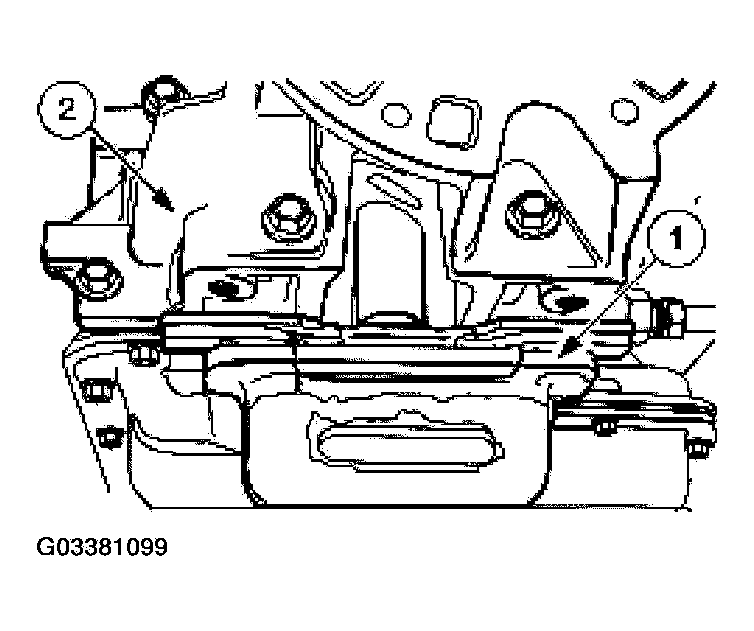

      Fig 1: Installing Rear Transmission Support Insulator
      G03381099Courtesy of FORD MOTOR CO.
    2. NOTE: It may be necessary to raise the back of the transmission slightly in order to install the bolts.

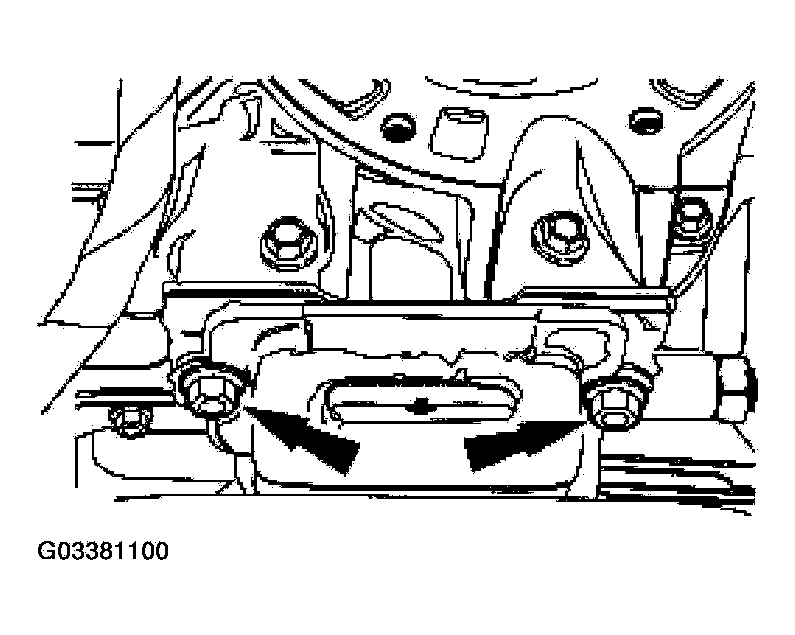

    Fig 2: Installing Transmission Support Insulator Bolts
    G03381100Courtesy of FORD MOTOR CO.
  2. Loosely install the transmission support insulator bolts.
  3. Loosely install the transmission support insulator nuts.
    Fig 3: Installing Transmission Support Insulator Nuts
    G03381101Courtesy of FORD MOTOR CO.
  4. Tighten the transmission support insulator bolts and nuts.

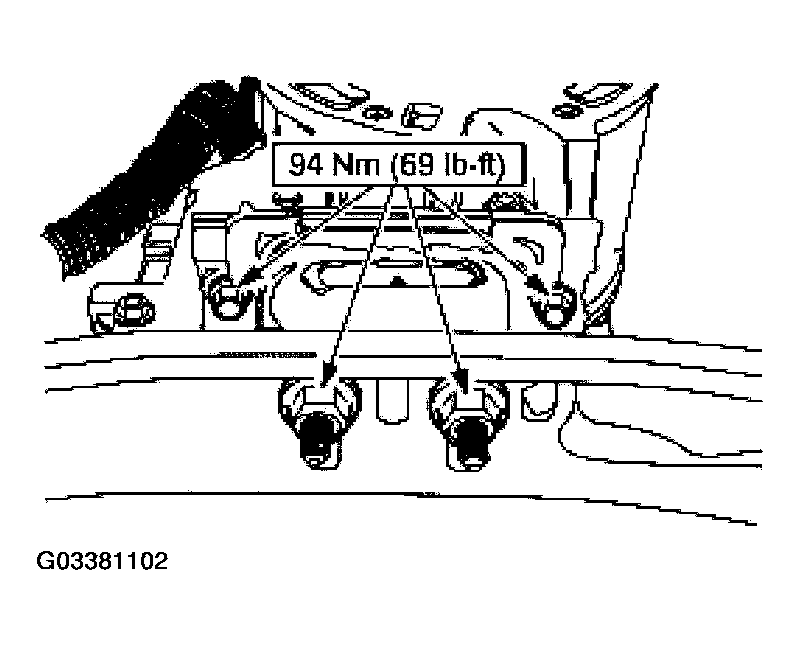

    Fig 4: Tightening Transmission Support Insulator Bolts And Nuts
    G03381102Courtesy of FORD MOTOR CO.
