Transmission Fluid Temperature (TFT) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the transmission fluid temperature (TFT) sensor electrical connector.

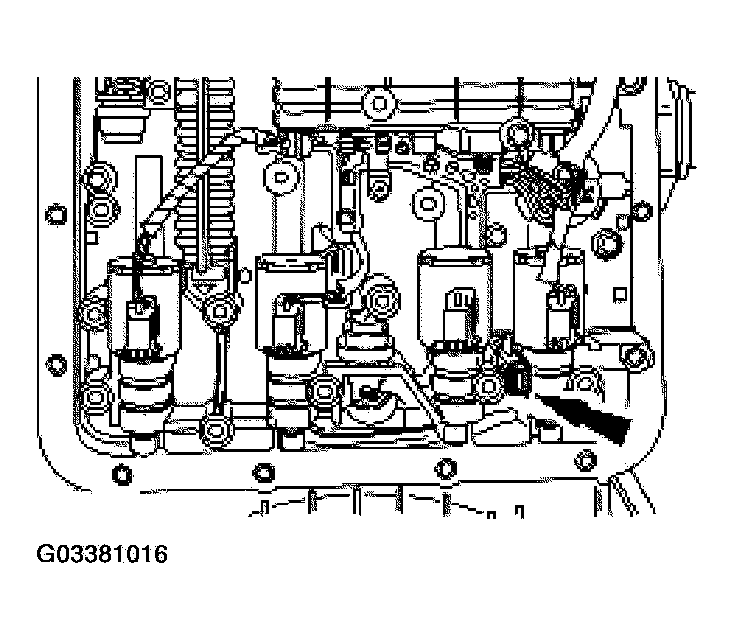

    Fig 1: Disconnecting Transmission Fluid Temperature (TFT) Sensor Electrical Connector
    G03381016Courtesy of FORD MOTOR CO.
  3. Press the tab, rotate the sensor counterclockwise and pull out.

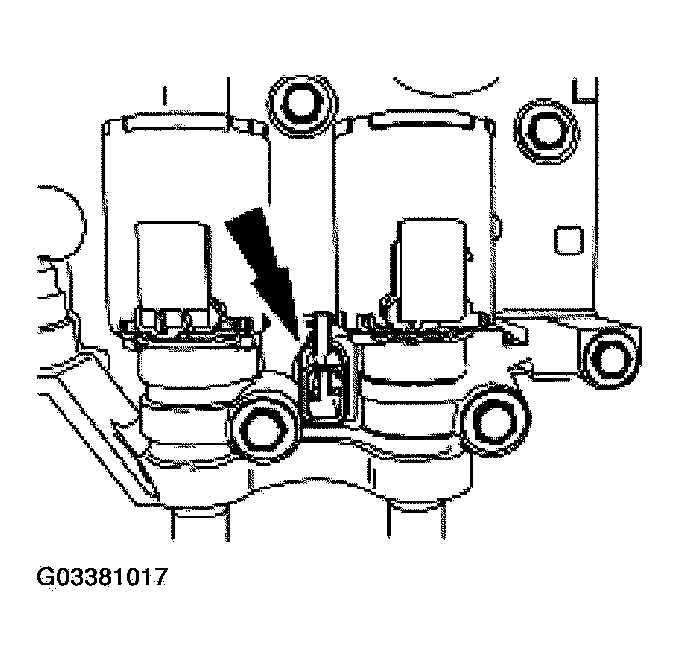

    Fig 2: Pressing Tab, Rotating Sensor Counterclockwise
    G03381017Courtesy of FORD MOTOR CO.
  4. Inspect the O-ring. If the O-ring is damaged install a new O-ring.
