Transmission Fluid Temperature (TFT) Sensor: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

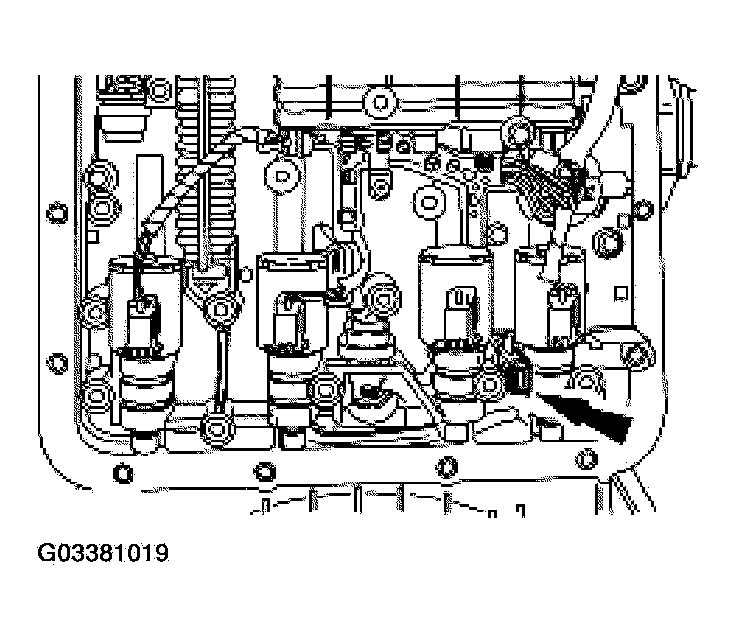

- Lubricate and install a new TFT sensor. Make sure to slightly rotate the sensor to lock it in place.

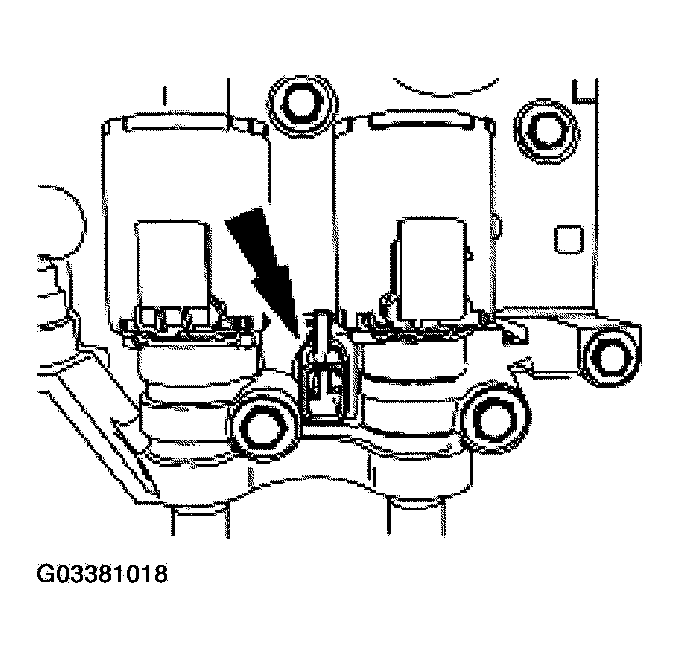

- Connect the TFT sensor electrical connector.
- Install the transmission fluid filter, pan gasket and pan. For additional information, refer to FLUID PAN, GASKET AND FILTER .
- Fill the transmission.
- Add 7.0 liters (7.5 quarts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
- Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
- With the vehicle in NEUTRAL, engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24 liter (0.5 pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
CAUTION:
The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
