Transmission Filler Tube: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install a new O-ring if damaged.

Fig 1: Installing O-Ring
Courtesy of FORD MOTOR CO.

NOTE: Coat the O-ring at the bottom of the transmission fluid filler tube with transmission fluid.

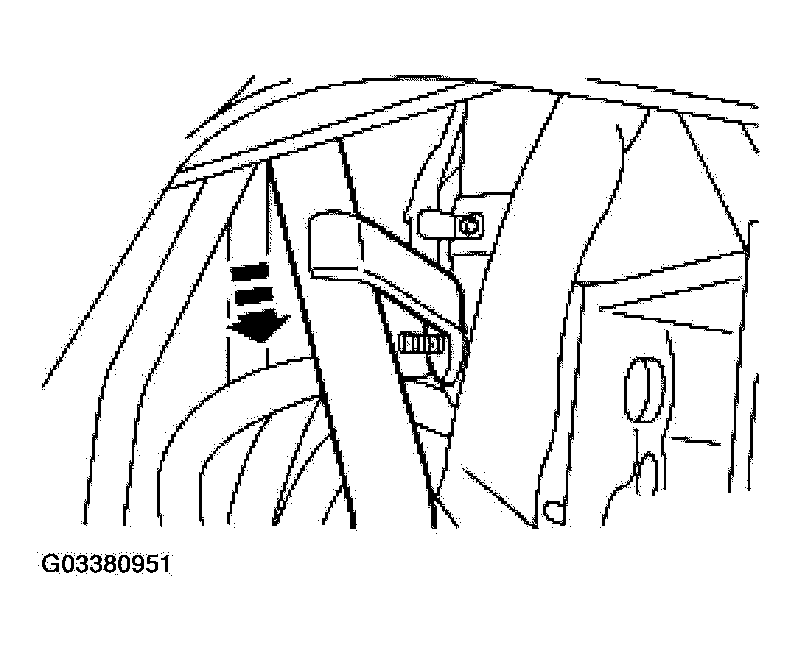

Fig 2: Installing Transmission Fluid Filler Tube

Courtesy of FORD MOTOR CO.

Install the transmission fluid filler tube.
Install the transmission fluid filler tube nut.

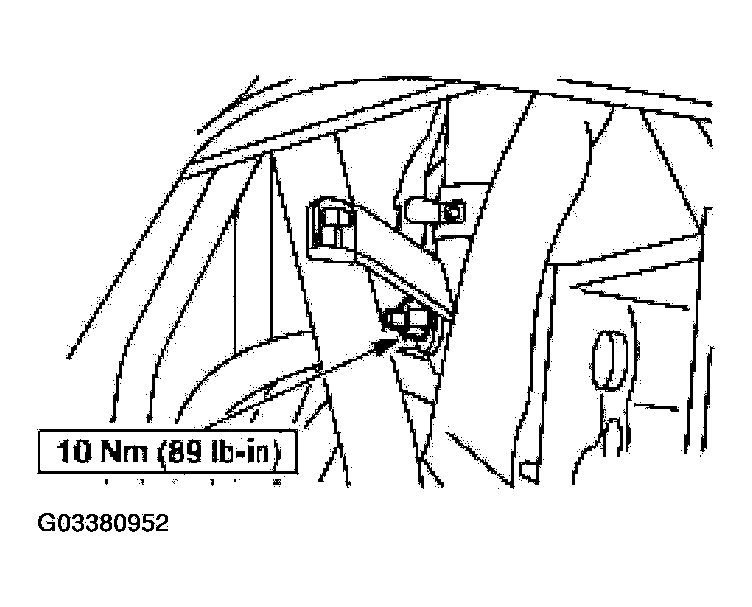

Fig 3: Installing Transmission Fluid Filler Tube Nut
Courtesy of FORD MOTOR CO.
Install the fluid level indicator.

Fig 4: Installing Fluid Level Indicator
Courtesy of FORD MOTOR CO.
