Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the output shaft speed (OSS) sensor.
    Fig 1: Installing Output Shaft Speed (OSS) Sensor
    G03380978Courtesy of FORD MOTOR CO.
    3. NOTE: Prior to removing the speed sensor, make sure that the area around the sensor is free of debris to prevent contamination of the transmission.
  3. Remove the output shaft speed (OSS) sensor.
    1. Remove the bolt.
    2. Remove the output shaft speed (OSS) sensor.

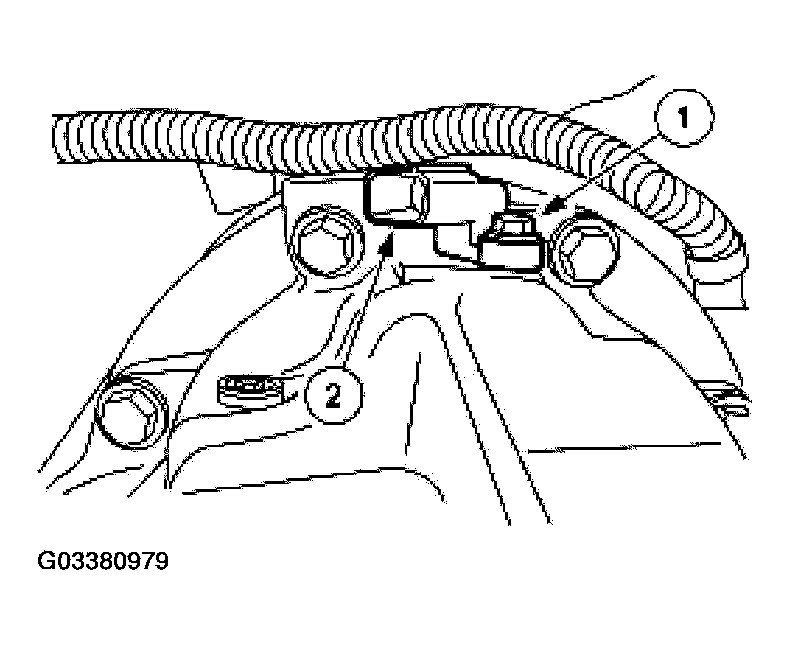

      Fig 2: Removing Bolt And Output Shaft Speed (OSS) Sensor
      G03380979Courtesy of FORD MOTOR CO.
