Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the output shaft speed (OSS) sensor.
    1. Lubricate the O-ring and install the OSS sensor.
    2. Install the bolt.

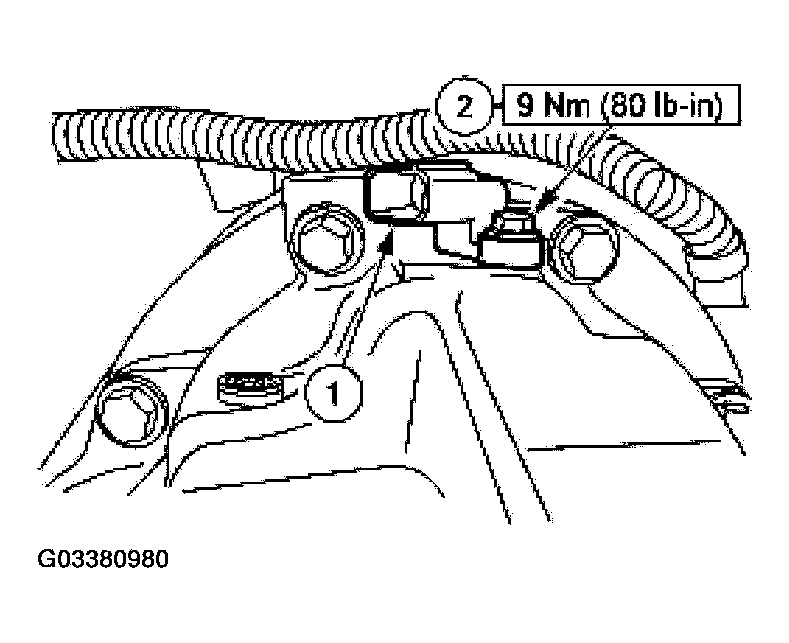

      Fig 1: Installing Bolt
      G03380980Courtesy of FORD MOTOR CO.
  2. Connect the OSS sensor electrical connector.
    Fig 2: Connecting OSS Sensor Electrical Connector
    G03380981Courtesy of FORD MOTOR CO.
