Main Control Valve Body: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the solenoid body electrical connector.
    Fig 1: Disconnecting Solenoid Body Electrical Connector
    G03380955Courtesy of FORD MOTOR CO.
    3. NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.
    NOTE: While lowering the solenoid body, the forward clutch orifice may fall out of the transmission case.

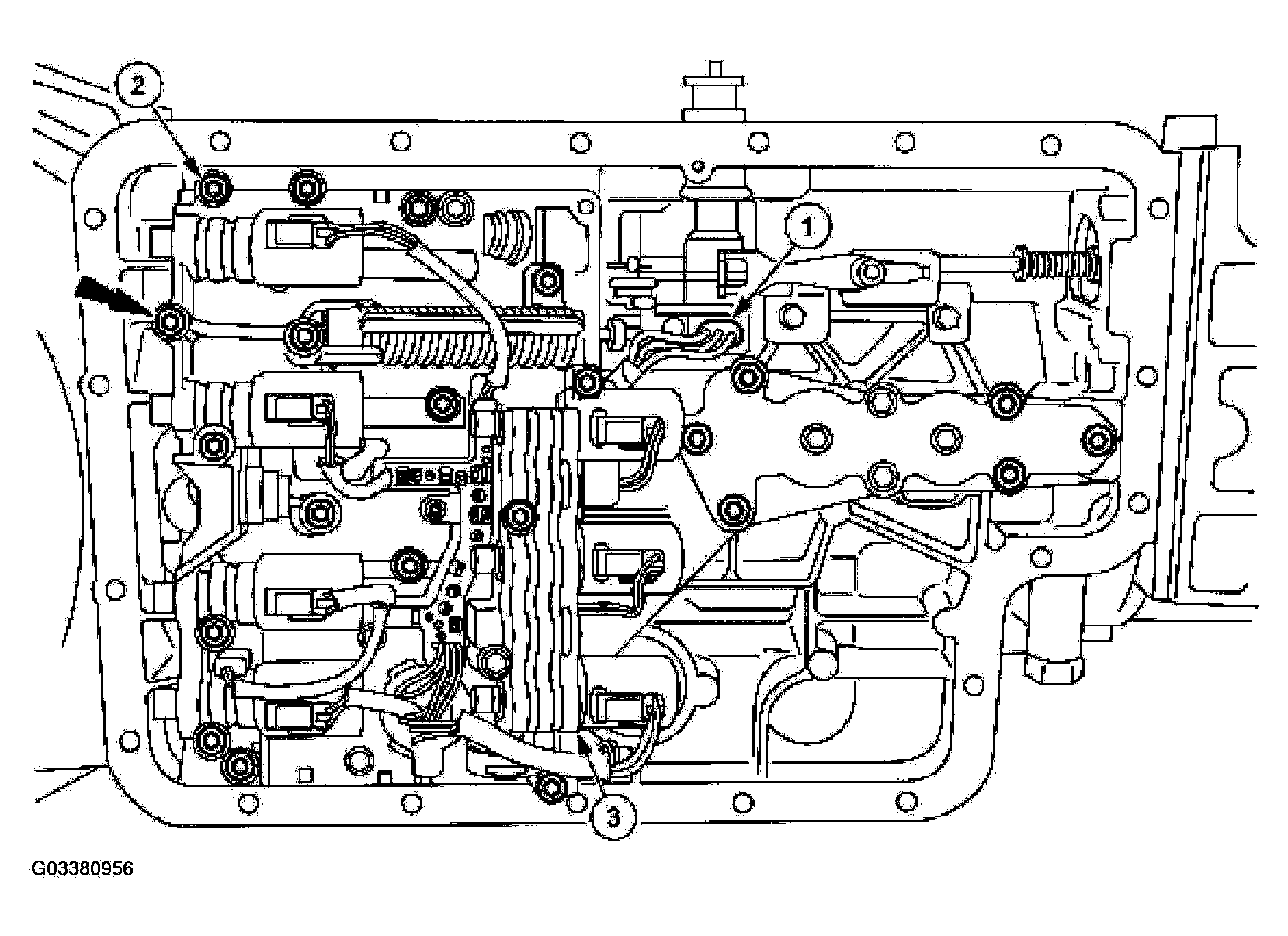

    Fig 2: Removing Solenoid Body Bolts
    G03380956Courtesy of FORD MOTOR CO.
  3. Remove the solenoid body.
    1. Disconnect the transmission range sensor electrical connector.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.
  4. Remove the solenoid body gasket.

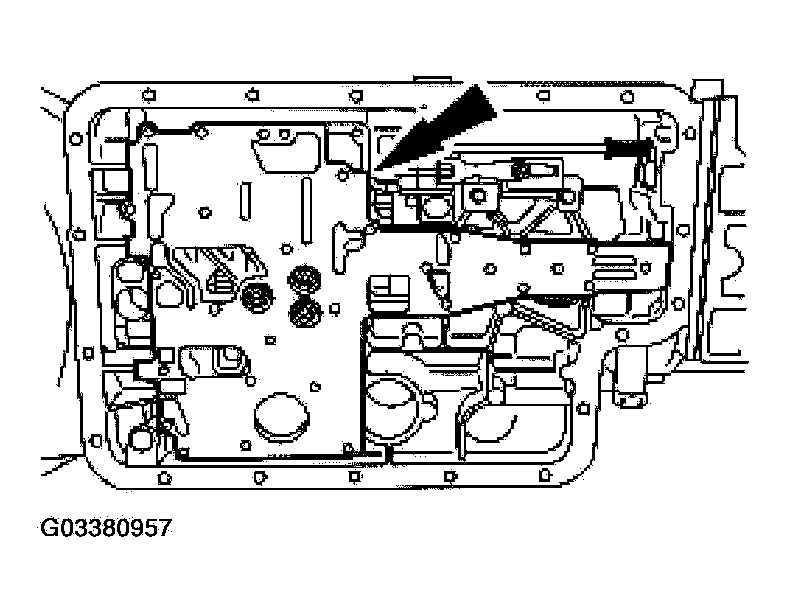

    Fig 3: Removing Solenoid Body Gasket
    G03380957Courtesy of FORD MOTOR CO.
