Main Control Valve Body: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new solenoid body gasket.

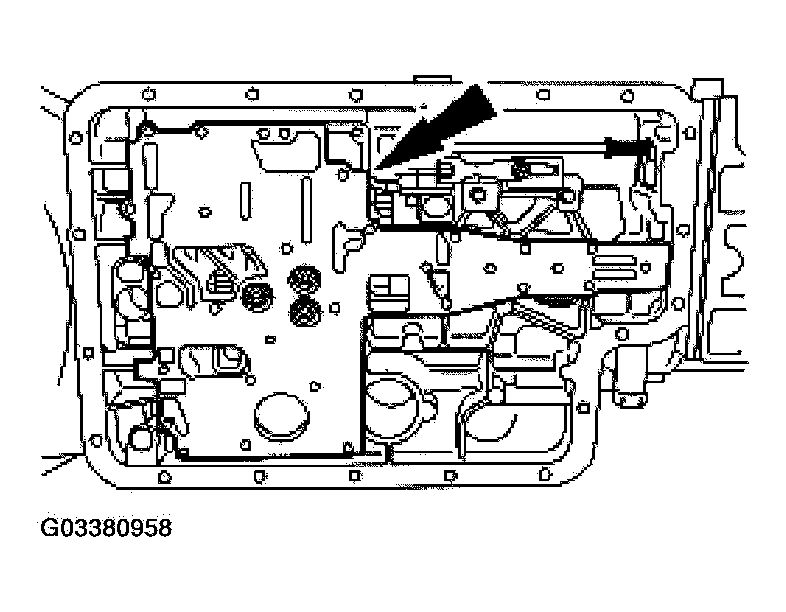

    Fig 1: Installing Solenoid Body Gasket
    G03380958Courtesy of FORD MOTOR CO.
  2. Use petroleum jelly to hold the forward clutch orifice in place on the top of the forward clutch feed bolt.

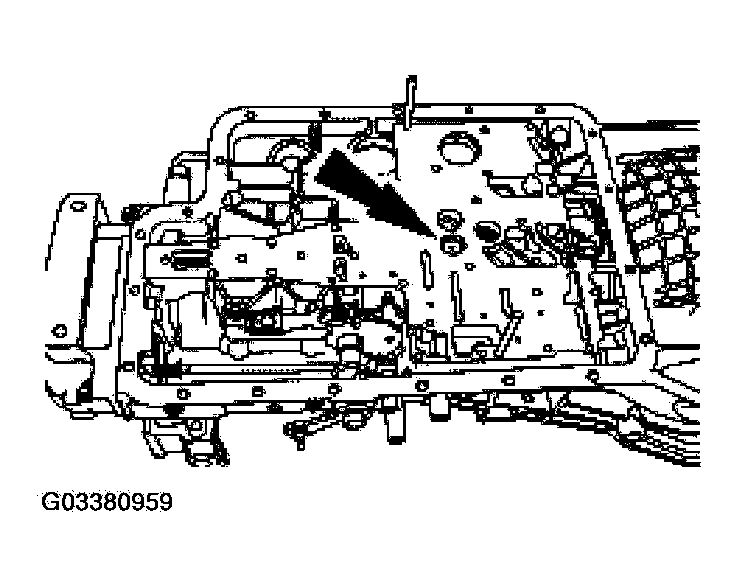

    Fig 2: Using Petroleum Jelly To Hold Forward Clutch Orifice In Place
    G03380959Courtesy of FORD MOTOR CO.
  3. Using the special tools, install the solenoid body and loosely install the bolts.
    • While installing the solenoid body, align the manual valve.

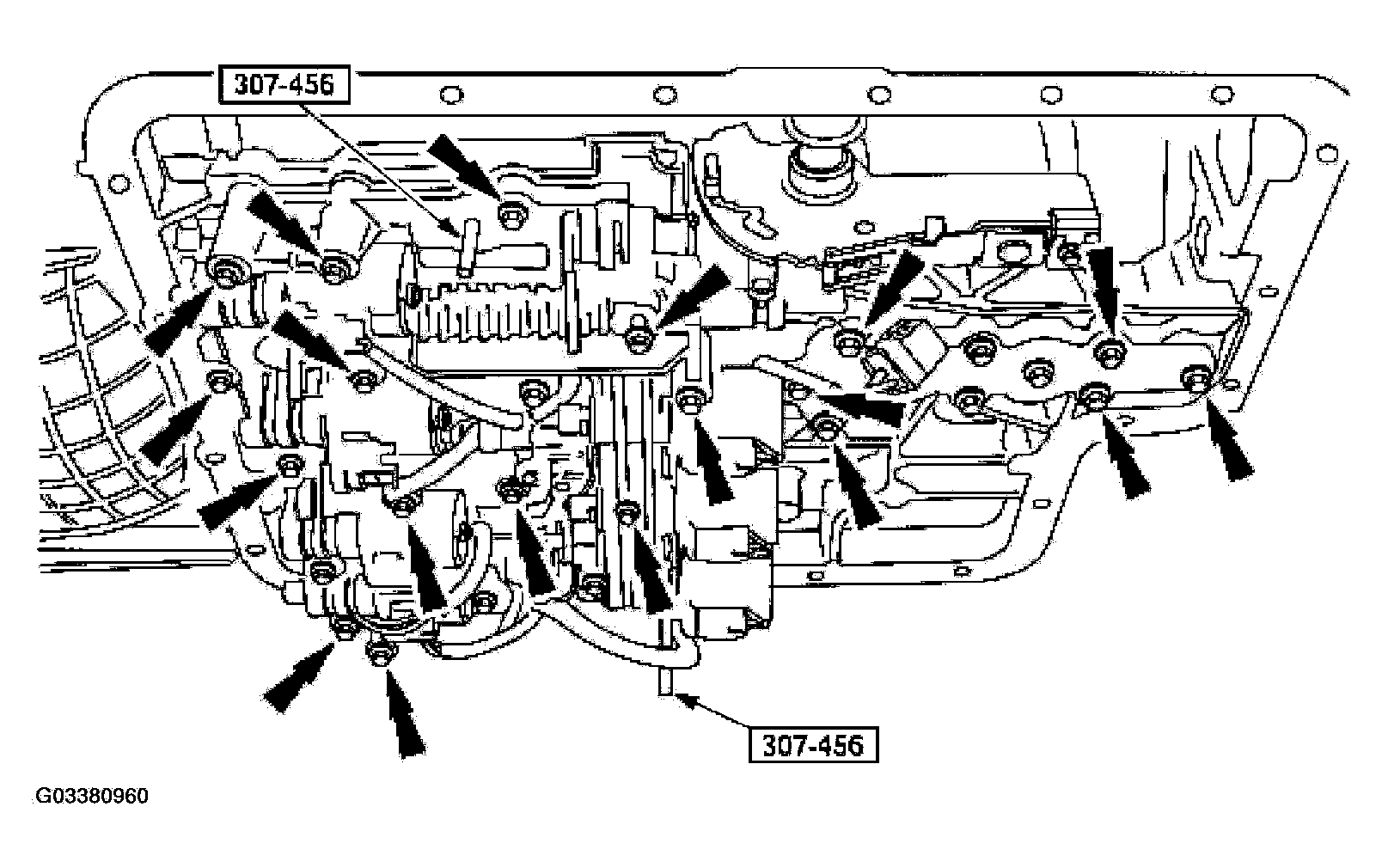

      Fig 3: Installing Solenoid Body And Bolts Using Special Tools
      G03380960Courtesy of FORD MOTOR CO.
  4. Tighten all the bolts in the sequence shown.

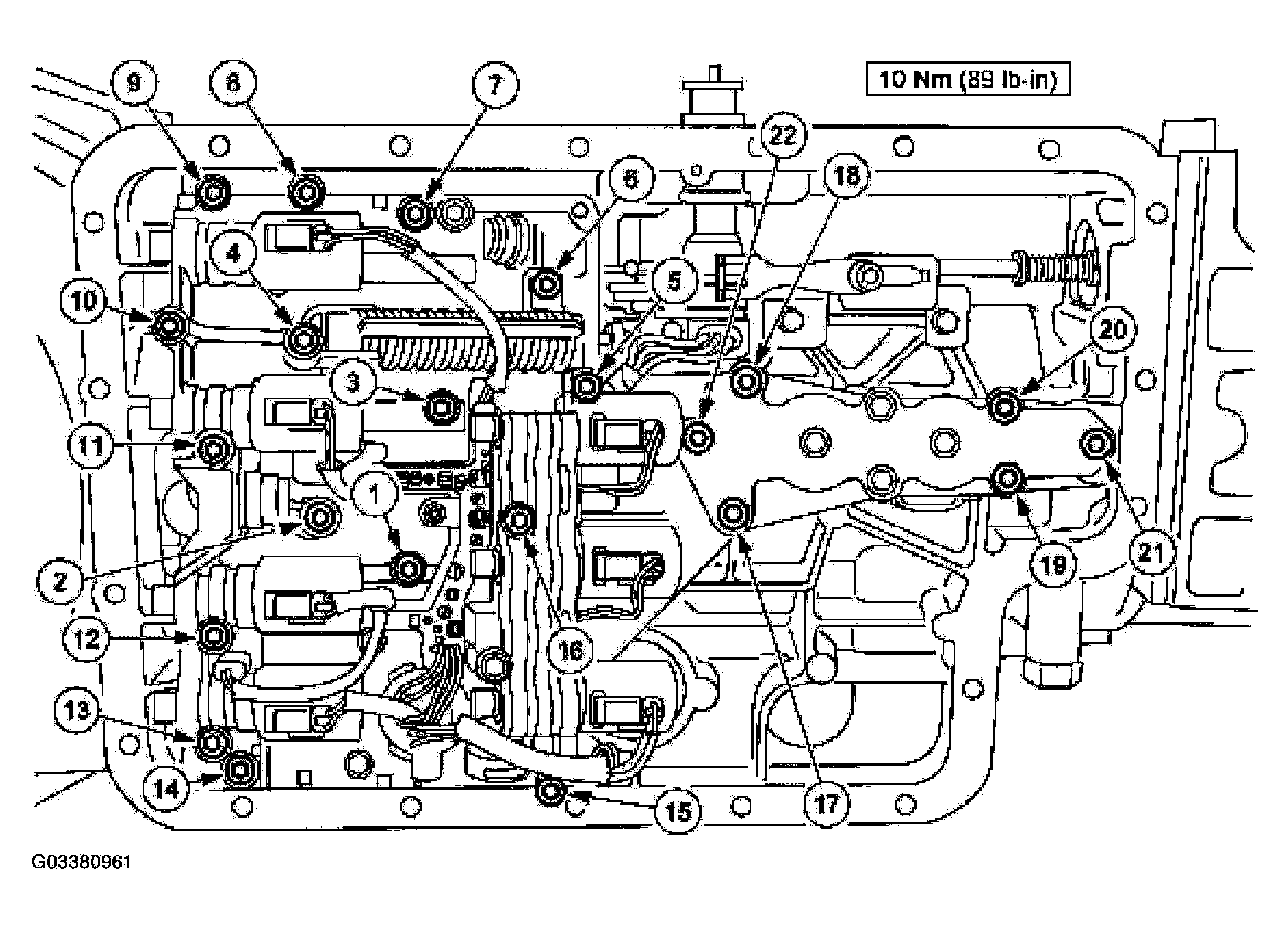

    Fig 4: Tightening Bolts In Sequence
    G03380961Courtesy of FORD MOTOR CO.
  5. Connect the transmission range sensor connector.

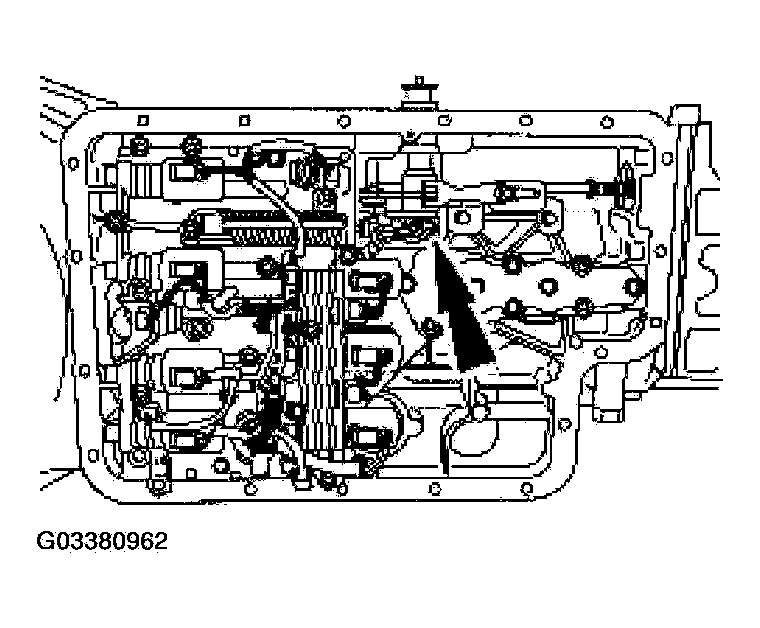

    Fig 5: Connecting Transmission Range Sensor Connector
    G03380962Courtesy of FORD MOTOR CO.
  6. Install the transmission fluid filter, pan gasket and pan. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  7. Connect the solenoid body electrical connector.
    Fig 6: Connecting Solenoid Body Electrical Connector
    G03380963Courtesy of FORD MOTOR CO.
