Line Pressure Control Solenoid - Pc-A: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the main control valve body.
    1. Install the pressure control solenoid (PC-A) and install the (E) retaining clip.
    2. Push the bulkhead connector through the solenoid body and twist the bulkhead connector locking it into place 3. Install the shift solenoid (SSPC-C) back into place and install the (E) retaining clip.
    3. Connect the electrical connectors to the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
    4. Install the wire harness to solenoid body and tighten the bolts.

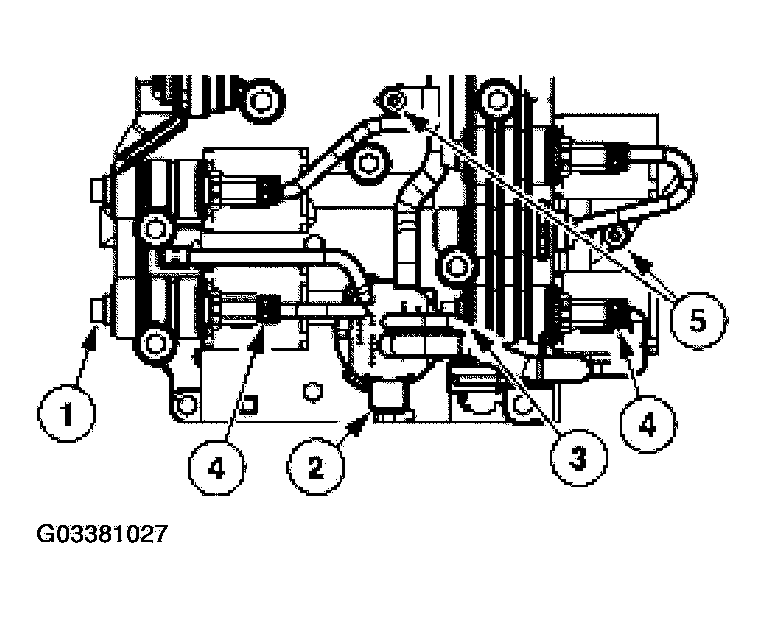

      Fig 1: Connecting Electrical Connectors To Pressure Control Solenoid (PC-A) And Shift Solenoid (SSPC-C)
      G03381027Courtesy of FORD MOTOR CO.
  2. Remove the solenoid body electrical connector O-ring seal.
    Fig 2: Removing Solenoid Body Electrical Connector O-Ring Seal
    G03381028Courtesy of FORD MOTOR CO.
  3. Install the transmission main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
