Internal Harness Service: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the bulkhead connector through the transmission solenoid body, twist it to lock it in place.
  2. Connect the internal wiring harness.
    1. Install the two screws.
    2. Connect the transmission fluid temperature sensor electrical connector.
    3. Connect the solenoid electrical connectors.

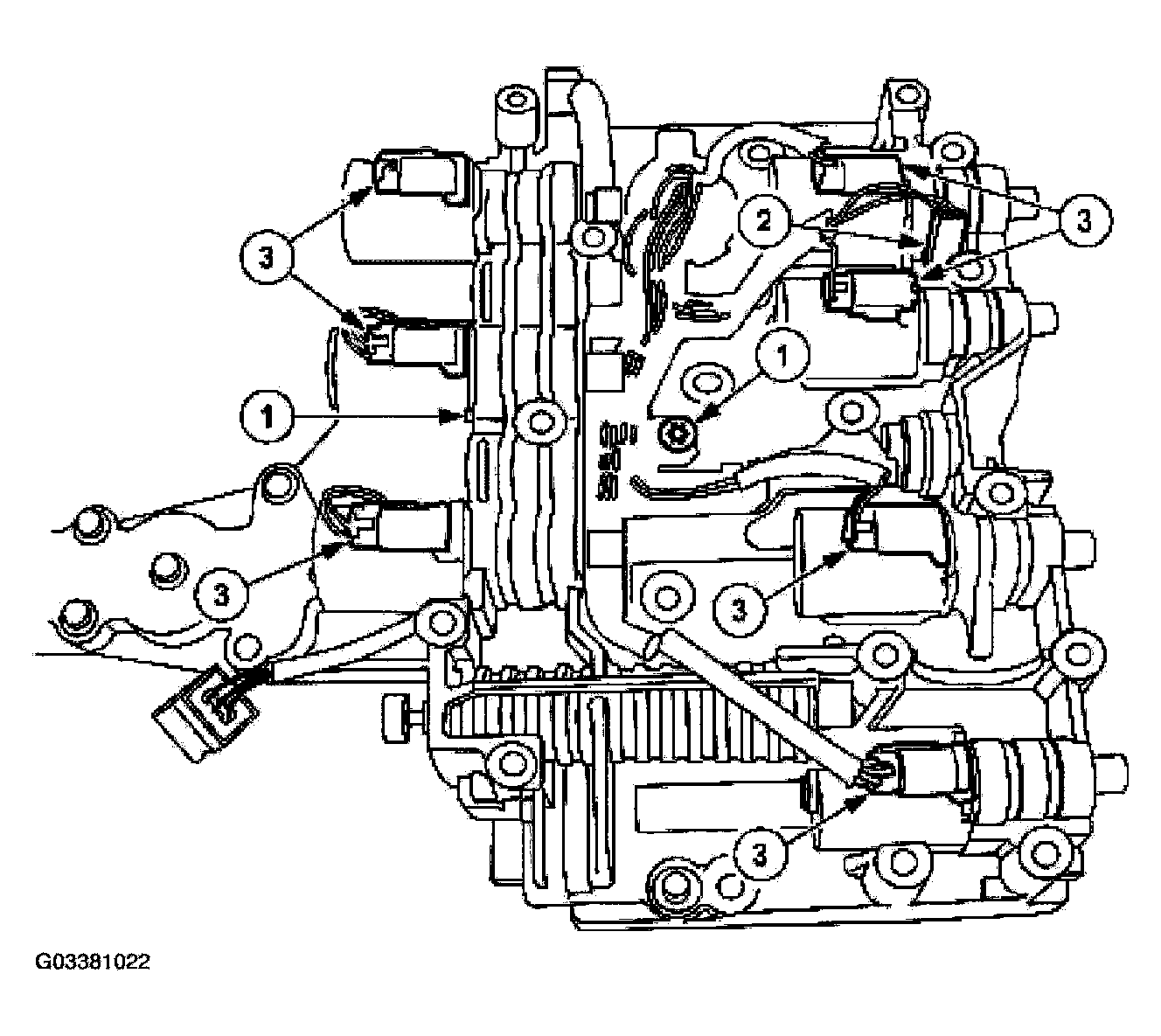

      Fig 1: Connecting Solenoid Electrical Connectors
      G03381022Courtesy of FORD MOTOR CO.
    3. NOTE: The O-ring must be installed in the top slot.

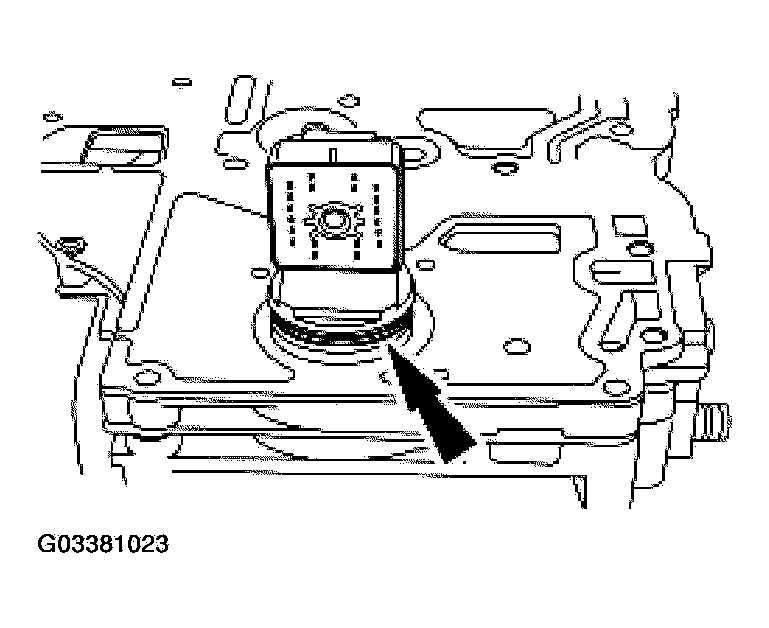

    Fig 2: Installing Solenoid Body Bulkhead Connector O-Ring
    G03381023Courtesy of FORD MOTOR CO.
  3. Install a new solenoid body bulkhead connector O-ring.
  4. Install the solenoid body. For additional information, refer to MAIN CONTROL VALVE BODY .
